Eaton Tripp Lite Series DVI over Cat5/6 Passive Extender, Remote Receiver for Video, DVI-D Single Link, Up to 100 ft. (30 m), TAA

1 Input Device - 1 Output Device - 100 ft Range - 1 x Network (RJ-45) - 1 x DVI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6 - TAA Compliant

Product ID

Mfg. Part: B140-1P0

UNSPSC: 52161600

MNJPartNumber: MNJ8524062

Availability

800-870-4340 Contact your MNJ Sales Representative for the latest availability

Product Pricing

$20.58

Options & Accessories

Eaton Tripp Lite Series 2-Port DVI over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video, DVI-D Single Link, 200 ft. (60 m), TAA

1 Input Device - 2 Output Device - 200 ft Range - 2 x Network (RJ-45) - 1 x DVI In - Full HD - 1920 x 1080 - Twisted Pair - Category 6 - TAA Compliant

Mfg. Part: B140-002

$112.7

Eaton Tripp Lite Series 4-Port DVI over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video, DVI-D Single Link, 200 ft. (60 m), TAA

1920x1080 at 60Hz

Mfg. Part: B140-004

$397.42

Tripp Lite by Eaton Cat6 Gigabit Solid Conductor Snagless UTP Ethernet Cable (RJ45 M/M) PoE Blue 75 ft. (22.86 m)

Category 6 - 75ft - 1 x RJ-45 Male Network - 1 x RJ-45 Male Network - Blue

Mfg. Part: N202-075-BL

$77.51

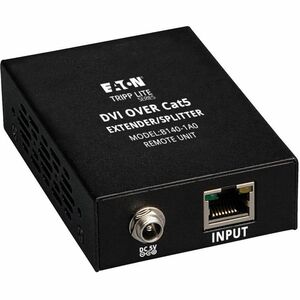

Eaton Tripp Lite Series DVI over Cat5/6 Active Extender, Box-Style Remote Receiver for Video, DVI-I Single Link, Up to 200 ft. (60 m), TAA

1920x1080 at 60Hz

Mfg. Part: B140-1A0

$225.4

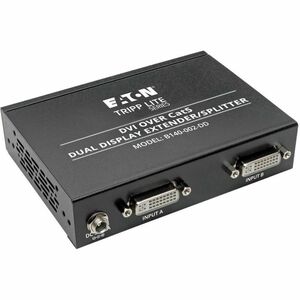

Tripp Lite by Eaton 2-Port DVI over Cat5/6 Splitter/Extender Box-Style Transmitter for Video Dual-Display DVI-D 200 ft. (60 m) TAA

2 Input Device - 4 Output Device - 200 ft Range - 4 x Network (RJ-45) - 2 x DVI In - Full HD - 1920 x 1080 - Twinaxial - Category 6 - Wall Mountable, Rack-mountable, Pole-mountable - TAA Compliant

Mfg. Part: B140-002-DD

$495.99

Overview
Specification

Main Features

The B140-1P0 is a receiver unit that is used with the B140-002 and B140-004 extender/splitter transmitter units, and it transmits a DVI-D Single-Link signal up to 100 ft. away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). The B140-1P0 is compatible with all operating systems, and is plug and play, with no external power, software or drivers required. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Installation is simple. Connect a B140-002 or B140-004 transmitter (not included) to a DVI source using a Tripp Lite P561-Series DVI cable (not included). Connect the B140-1P0's built-in DVI connector to a display. Finally, the receiver unit is connected to an RJ45 port on the transmitter unit using a single Cat5e/6 cable. A 1920 x 1080 @ 60Hz signal can be extended up to 50 ft. from the source,, or a 1024 x 768 @ 60Hz signal up to 100 ft..
