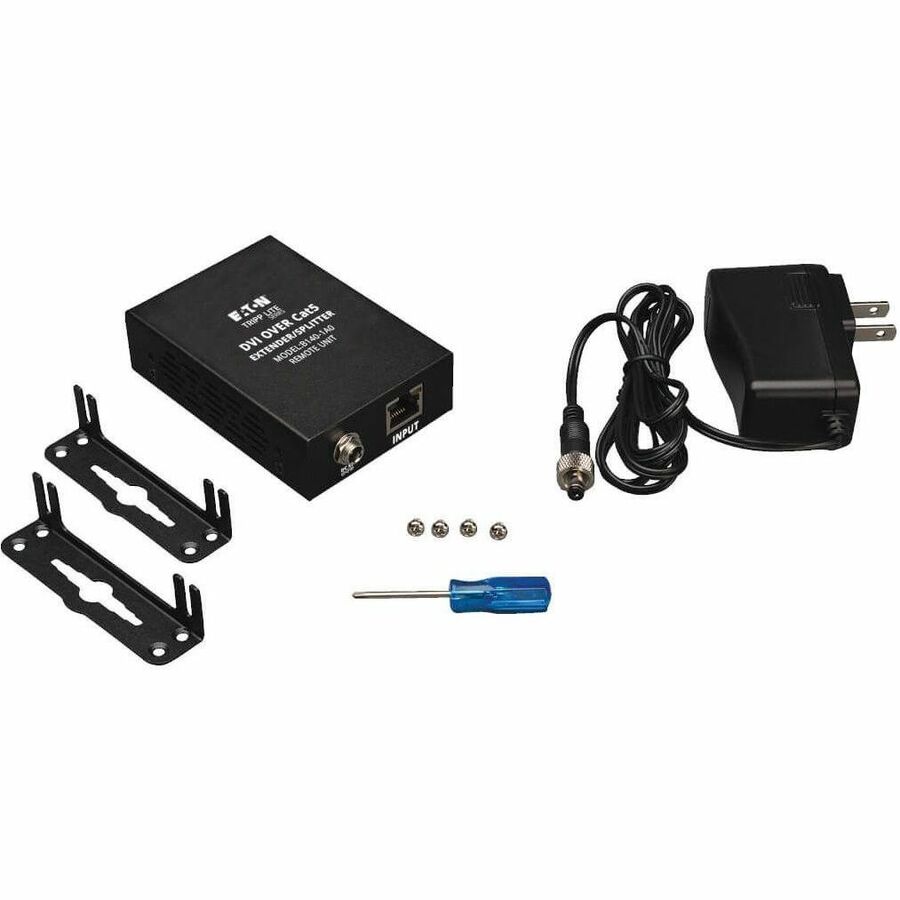

Eaton Tripp Lite Series DVI over Cat5/6 Active Extender, Box-Style Remote Receiver for Video, DVI-I Single Link, Up to 200 ft. (60 m), TAA

1920x1080 at 60Hz

Product ID

Mfg. Part: B140-1A0

UNSPSC: 52161600

MNJPartNumber: MNJ8529228

Availability

Limited

Product Pricing

$225.40

Options & Accessories

Eaton Tripp Lite Series DVI Single Link Cable, Digital TMDS Monitor Cable (DVI-D M/M), 10 ft. (3.05 m)

(DVI-D M/M) 10-ft.

Mfg. Part: P561-010

$25.49

Eaton Tripp Lite Series 2-Port DVI over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video, DVI-D Single Link, 200 ft. (60 m), TAA

1 Input Device - 2 Output Device - 200 ft Range - 2 x Network (RJ-45) - 1 x DVI In - Full HD - 1920 x 1080 - Twisted Pair - Category 6 - TAA Compliant

Mfg. Part: B140-002

$112.7

Eaton Tripp Lite Series 4-Port DVI over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video, DVI-D Single Link, 200 ft. (60 m), TAA

1920x1080 at 60Hz

Mfg. Part: B140-004

$397.42

Eaton Tripp Lite Series DVI over Cat5/6 Passive Extender, Remote Receiver for Video, DVI-D Single Link, Up to 100 ft. (30 m), TAA

1 Input Device - 1 Output Device - 100 ft Range - 1 x Network (RJ-45) - 1 x DVI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6 - TAA Compliant

Mfg. Part: B140-1P0

$20.58

Eaton Tripp Lite Series Cat6 Gigabit Solid Conductor Snagless UTP Ethernet Cable (RJ45 M/M), PoE, Blue, 125 ft. (38.1 m)

Category 6 for Network Device - 125ft - 1 x RJ-45 Male Network - 1 x RJ-45 Male Network - Blue

Mfg. Part: N202-125-BL

$130.22

Overview
Specification

Main Features

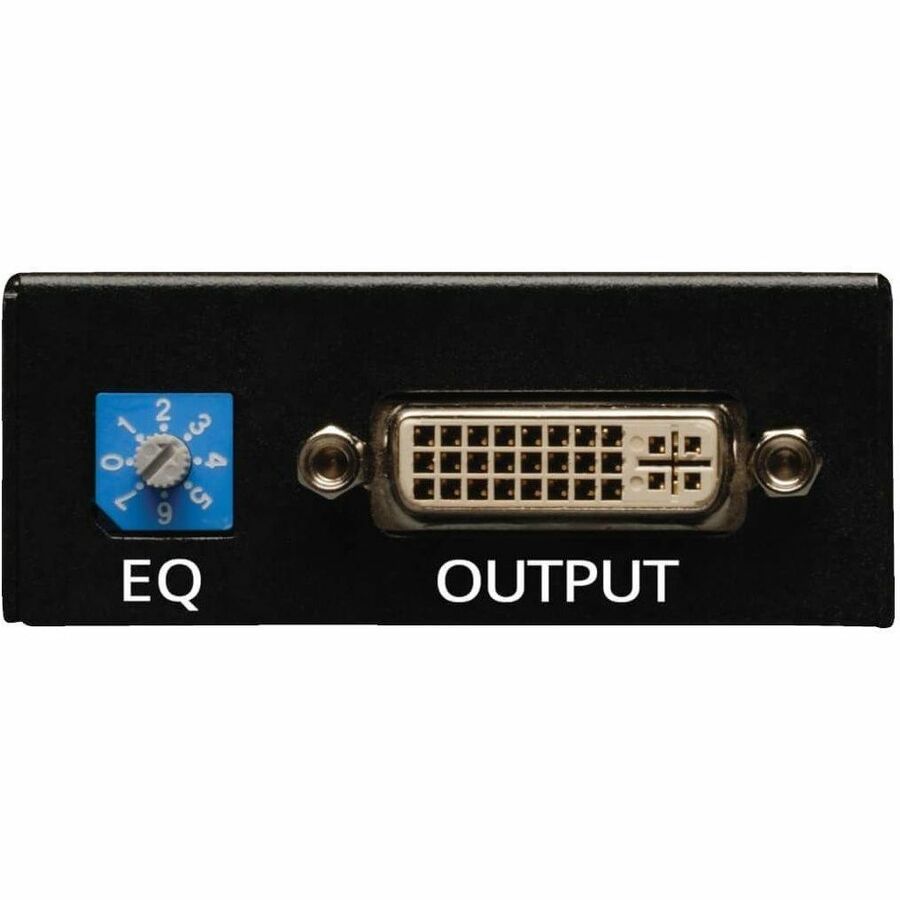

The B140-1A0 is a receiver unit that is used with the B140-002 and B140-004 extender/splitter transmitter units, and it transmits a DVI-D Single-Link signal up to 200 ft. away using a single Cat5e/6 patch cable. To achieve maximum distance and resolution, use 24AWG Solid Wire Cat5e/6 cable (Tripp Lite's N202-Series). The B140-1A0 is compatible with all operating systems, and is plug and play, with no software or drivers required. It features a built-in Equalization control for adjustment of the video image. Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.

Installation is simple. Connect a B140-002 or B140-004 transmitter (not included) to a DVI source using a Tripp Lite P561-Series DVI cable (not included). Connect the B140-1A0 to a display using a Tripp Lite P561-Series DVI cable (not included). Finally, the receiver unit is connected to an RJ45 port on the transmitter unit using a single Cat5e/6 cable. A 1920 x 1080 @ 60Hz signal can be extended up to 150 ft. from the source,, or a 1024 x 768 @ 60Hz signal up to 200 ft..

Further expand the range and number of monitors by using a B140-110 repeater unit. Add up to four remote units (three repeaters and one active receiver) to each channel of the B140-002 or B140-004, for a total of 4 displays per channel. (An active receiver should be the last unit in a channel) A 1920 x 1080 @ 60Hz signal can be extended up to 125 ft. from each repeater to the next unit in the channel, or a 1024 x 768 @ 60Hz signal can be extended up to 175 ft..
