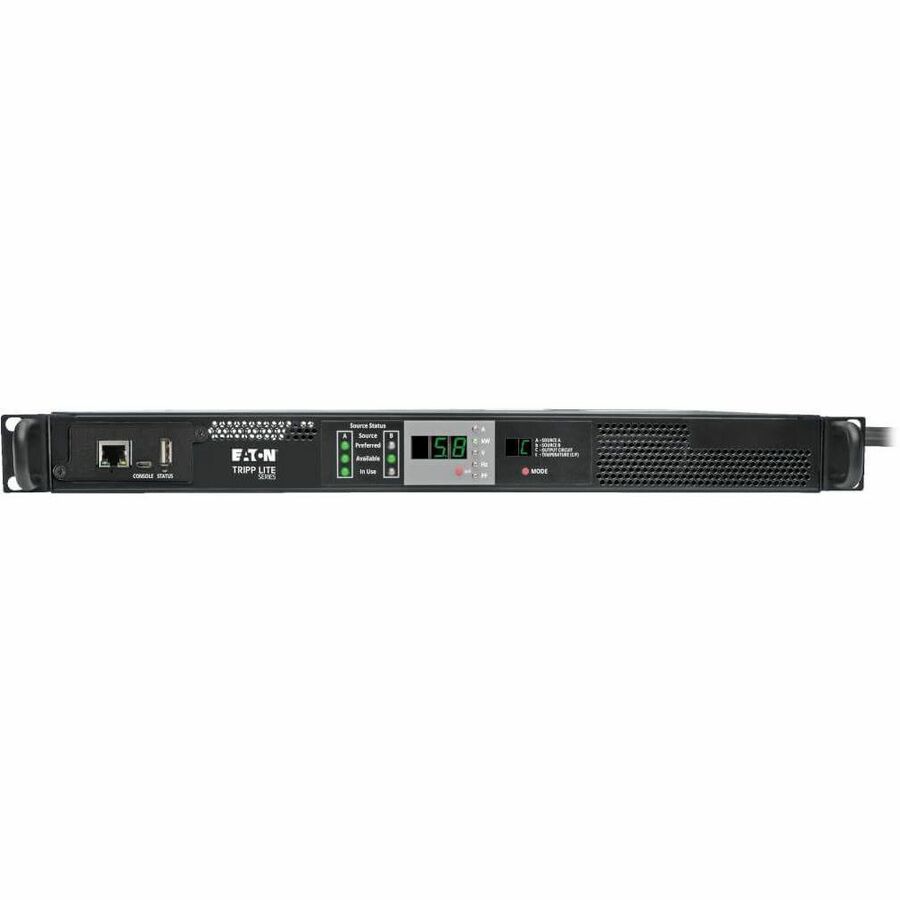

Tripp Lite by Eaton PDU 5.8kW Single-Phase Monitored Automatic Transfer Switch PDU 2 200-240V 30A L6-30P Inputs 1 L6-30R Outlet 1U
NEMA L6-30P - 1 x NEMA L6-30R - 230 V AC - 1URack-mountable
Product ID
Mfg. Part: PDUMNH30HVAT
UNSPSC: 39121017
MNJPartNumber: MNJ11761639
Availability
Limited
Product Pricing
$1,925.14
Options & Accessories
Tripp Lite by Eaton PDU 5.5kW Single-Phase 208/230V Basic PDU 38 Outlets (32 C13 and 6 C19) NEMA L6-30P Input 10 ft. (3.05 m) Cord 0U Vertical
6 x IEC 320 EN 60320 C19, 32 x IEC 320 EN 60320 C13 - Zero U Vertical Rackmount, Wall-mountable"
Mfg. Part: PDUV30HV
$612.5
Tripp Lite by Eaton PDU 5.5kW Single-Phase Local Metered PDU 208/230V Outlets (6-C19 & 24-C13) L6-30P 10 ft. (3.05 m) Cord 0U Vertical
6 x IEC 320 EN 60320 C19, 24 x IEC 320 EN 60320 C13 - Zero U Vertical Rackmount, Wall-mountable"
Mfg. Part: PDUMV30HV
$623.28
Eaton Tripp Lite Series Extended Warranty and Technical Support for Select Products - KVM, PDUs, Inverters
Maintenance - Labor - Physical Service
Mfg. Part: WEXT1G
$123.48
Tripp Lite by Eaton Extended Warranty and Technical Support for Select Products - KVM Switches PDUs Power Inverters
Maintenance - Labor - Physical Service
Mfg. Part: WEXT2G
$235.2
Eaton Tripp Lite Series Extended Warranty and Technical Support for Select Products - KVM, PDUs, Power Inverters
Maintenance - Labor - Physical Service
Mfg. Part: WEXT3G
$370.44
Main Features
The PDUMNH30HVAT 5.8kW Single-Phase 208/240V ATS/Monitored PDU provides remote power monitoring and enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and features one L6-30R outlet-perfect for connecting a single device or a 0U 208/240V PDU with an L6-30P plug.

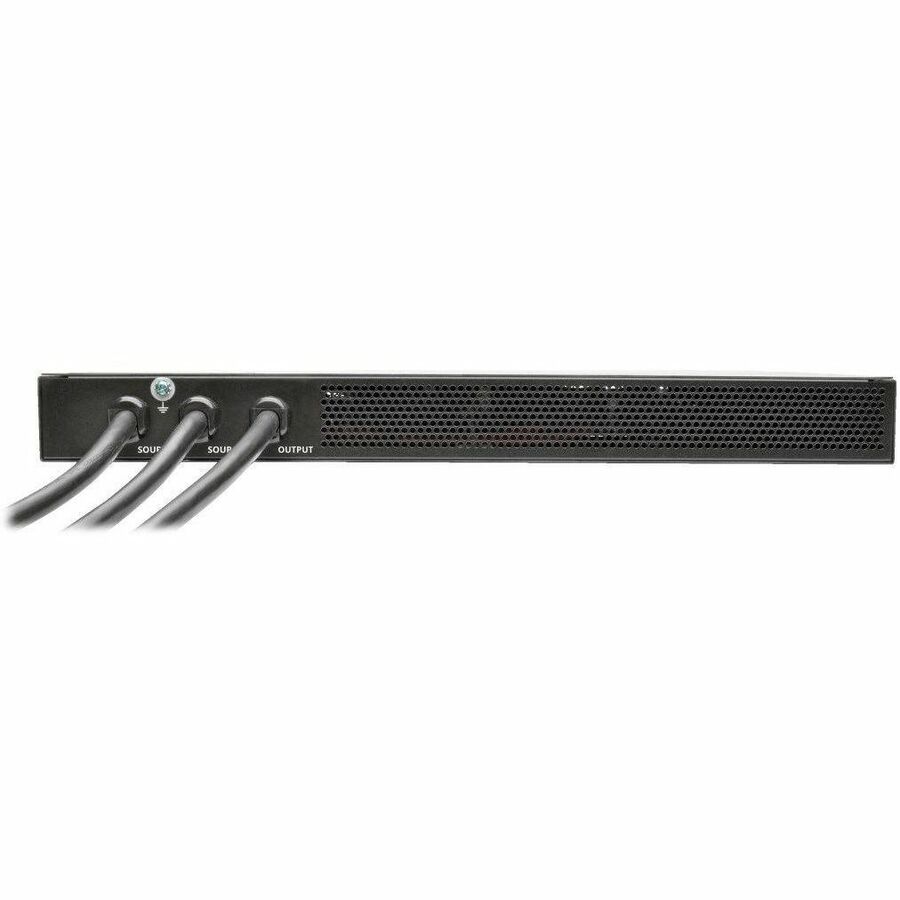

Dual 10-foot input cords with L6-30P plugs connect to separate primary and secondary single-phase power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.

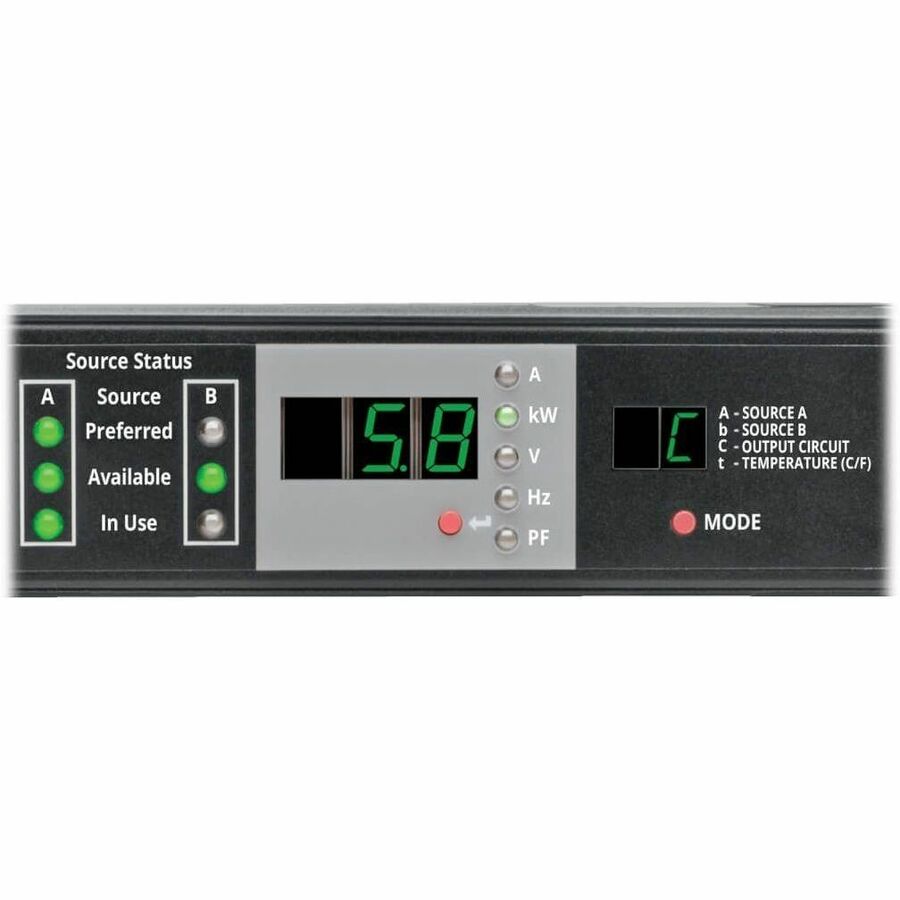

Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Automated alerts help prevent accidental overloads, power loss and downtime. Digital display indicates power availability, voltage, source A/B input status, output load and power factor, as well as temperature and humidity conditions with the optional ENVIROSENSE module (sold separately).
Dual 10-foot input cords with L6-30P plugs connect to separate primary and secondary single-phase power sources. The PDU constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 1-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Built-in LX Platform network management interface card. The Java-free LX Platform HTML5-based network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Automated alerts help prevent accidental overloads, power loss and downtime. Digital display indicates power availability, voltage, source A/B input status, output load and power factor, as well as temperature and humidity conditions with the optional ENVIROSENSE module (sold separately).
