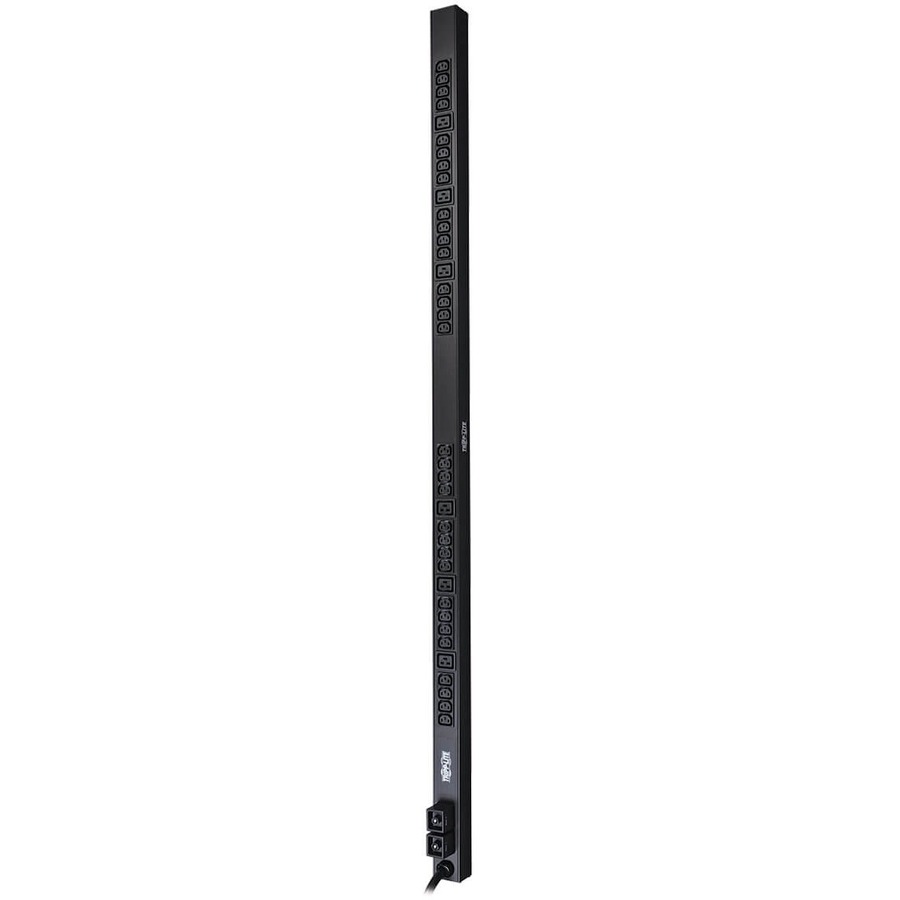

Tripp Lite by Eaton PDU 5.5kW Single-Phase 208/230V Basic PDU 38 Outlets (32 C13 and 6 C19) NEMA L6-30P Input 10 ft. (3.05 m) Cord 0U Vertical

6 x IEC 320 EN 60320 C19, 32 x IEC 320 EN 60320 C13 - Zero U Vertical Rackmount, Wall-mountable"

Product ID

Mfg. Part: PDUV30HV

UNSPSC: 39121017

MNJPartNumber: MNJ430606

Availability

800-870-4340 Contact your MNJ Sales Representative for the latest availability

Product Pricing

$612.50

Options & Accessories

Tripp Lite by Eaton NEMA 5-15R to C14 Computer AC Power Cable - 13A 125V 16 AWG 2 ft. (0.61 m) Black

12A, 16AWG (IEC-320-C14 to NEMA 5-15R) 2-ft.

Mfg. Part: P002-002

$10.29

Tripp Lite by Eaton Power Extension Cord C19 to C20 - Heavy-Duty 20A 250V 12 AWG 2 ft. (0.61 m) Black

20A, 12AWG (IEC-320-C19 to IEC-320-C20) 2-ft."

Mfg. Part: P036-002

$42.94

Tripp Lite by Eaton Heavy-Duty PDU Power Cord C13 to C14 - 15A 250V 14 AWG 10 ft. (3.05 m) Black

15A, 14AWG (IEC-320-C14 to IEC-320-C13) 10-ft."

Mfg. Part: P005-010

$32.63

Tripp Lite by Eaton Rack Enclosure Cabinet Horizontal Cable Ring Flexible 2URM

Cable Organizer - Black - 2U Rack Height - 19" Panel Width

Mfg. Part: SRCABLERING2U

$90.86

Tripp Lite by Eaton Heavy-Duty PDU Power Cord C13 to C14 - 15A 250V 14 AWG 2 ft. (0.61 m) Black

15A, 14AWG (IEC-320-C14 to IEC-320-C13) 2-ft."

Mfg. Part: P005-002

$20.57

Overview
Specification

Main Features

Tripp Lite Basic Power Distribution Units give IT Managers the ability to power multiple servers and vital networking hardware from a single input power source. Switch-free unfiltered electrical pass-through reliably distributes UPS or generator power to critical equipment in rack enclosures, network closets and more. Tooless mounting enables simple installation in button-mount compatible racks. Included mounting brackets support vertical installation in standard 2 and 4 post racks or other surfaces, such as under-counter or wallmount configurations. Plug retention brackets keep vital equipment plugged in and continuously powered.PDUV30HV 63.75 in. vertical 0U rack PDU supports 30A maximum capacity at 208/240V (agency derated to 24A). Includes 10 ft. attached line cord with L6-30P input plug. 32 C13 and 6 C19 outlets support up to 38 directly connected pieces of networking equipment. Outlets are arranged in two separately breakered 15A load banks.
