Eaton Tripp Lite Series USB 2.0 Active Extension Repeater Cable (A M/F), 20M (65.61 ft.)
65.62 ft Maximum Operating Distance - Network (RJ-45)
Product ID
Mfg. Part: U026-20M
UNSPSC: 26121620
MNJPartNumber: MNJ9184609
Availability
Limited
Product Pricing
$57.08
Options & Accessories

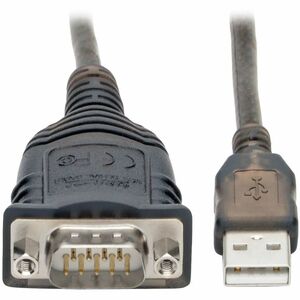

Eaton Tripp Lite Series RS232 to USB Adapter Cable with COM Retention (USB-A to DB9 M/M), FTDI, 5 ft. (1.52 m)
5 ft Serial/USB Data Transfer Cable for Barcode Scanner, Printer - First End: 1 x USB 2.0 Type A - Male - Second End: 1 x 9-pin DB-9 RS-232 Serial - Male - 480 Mbit/s - Shielding - Nickel Plated Connector - Gold Plated Contact - Black
Mfg. Part: U209-005-COM
$32.03

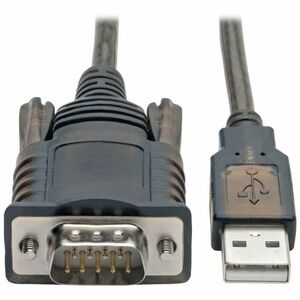

Eaton Tripp Lite Series USB to RS485/RS422 FTDI Serial Adapter Cable with COM Retention (USB-A to DB9 M/M), 30-in. (76.2 cm)
2 ft Serial/USB Data Transfer Cable for Printer, Scanner, Surveillance Camera, Card Reader - First End: 1 x USB 2.0 Type A - Male - Second End: 1 x DB-9 RS-485 Serial - Male - 230 kbit/s - Shielding - Nickel Plated Connector - Gold Plated Contact - Black
Mfg. Part: U209-30N-IND
$46.7
Eaton Tripp Lite Series 2-Port RS-422/RS-485 USB to Serial FTDI Adapter with COM Retention (USB-B to DB9 F/M)
External - USB Type B - Linux, Mac, PC - 2 x Number of Serial Ports External
Mfg. Part: U208-002-IND
$72.71
Eaton Tripp Lite Series 4-Port RS-422/RS-485 USB to Serial FTDI Adapter with COM Retention (USB-B to DB9 F/M)
External - USB Type B - PC, Mac, Linux - 4 x Number of Serial Ports External
Mfg. Part: U208-004-IND
$111.03
Eaton Tripp Lite Series 1-Port RS-422/RS-485 USB to Serial FTDI Adapter with COM Retention (USB-B to DB9 F/M)
External - USB Type B - PC, Mac, Linux - 1 x Number of Serial Ports External
Mfg. Part: U208-001-IND
$30.43
Main Features
Tripp Lite's U026-20M is a 20-meter (65 ft.) USB 2.0 active extension cable used to increase the length of a USB device cable beyond the 16.ft cable limitation without signal loss and potential performance problems. The U026-20M is a bus-powered extension cable with a built-in signal booster for regenerating the signal to achieve superior signal quality and data transmission. The overall cable length can be extended up to 131ft by daisy chaining up to 2 of active cables. Standard 6' 10' or 15' USB A-B cable to reach the desired distance. Meets or exceeds all USB 2.0 specifications and also supports faster data transfer for legacy USB 1.1 devices. Power capacity is up to 90mA of power to the connected device. (If more than 90mA is required, it will either (i) need to have its own power supply, or (ii) be plugged into a powered USB 2.0 hub (Tripp Lite U222-004-R).
Features
- Maximum Extension Distance: Daisy-chain up to two 20m cables for a complete distance extension of up to 40m (131 ft.)
- Error-Free Signal Transfer: Supports error-free data transmission at the high speeds of all your USB 2.0 devices. Legacy USB 1.1 devices also get a speed boost with transfer speeds from 1.5 to 480 Mbps
- Universal Compatibility: The cable is compatible with all computers, devices and cables with USB A connectors. Backward compatible to USB 1.1 (12Mbps )
- Power Capacity: The U026-20M provides up to 90mA of power to the connected device. If your device requires more than 90mA, it will either (i) need its own power supply, or (ii) be plugged into a powered USB 2.0 hub (such as Tripp Lite U222-004-R)
- Premium Cabling: Premium double-shielded foil-and-braid cable provides maximum EMI/RFI protection and superior signal quality
- Gold-Plated Connectors: The U026-20M features gold-plated USB A connectors with gold-plated copper contacts to ensure excellent conductivity The connectors feature integral strain relief for durability and long life
- Signal Booster: The built-in signal booster regenerates a USB signal for high quality and long extension distances
- RoHS Compliance: The U026-20M is compliant with RoHS standards, reflecting Tripp Lite's commitment to environmental responsibility
- Plug and Play Convenience: no software to load
