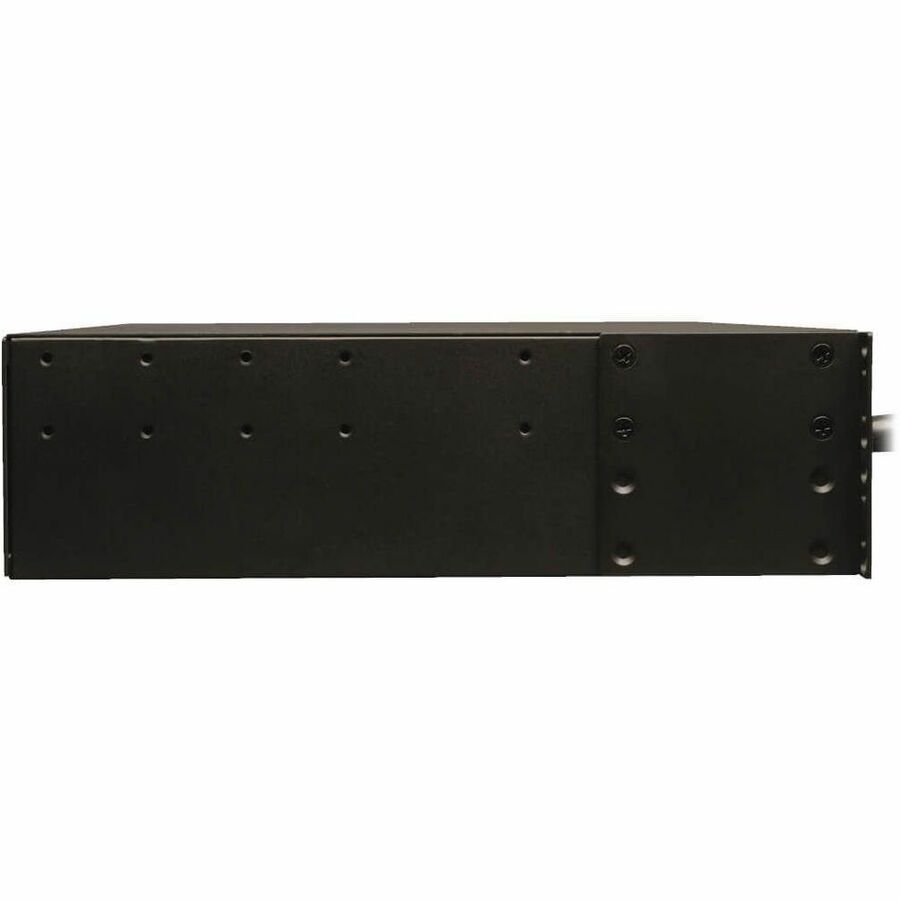

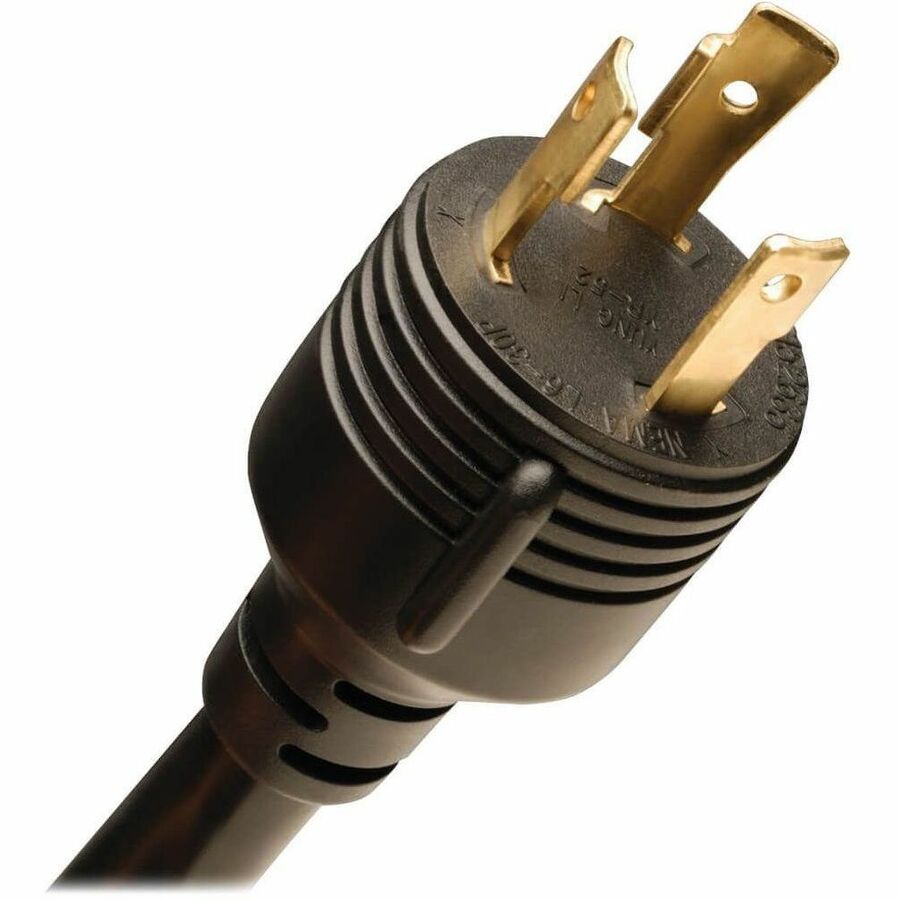

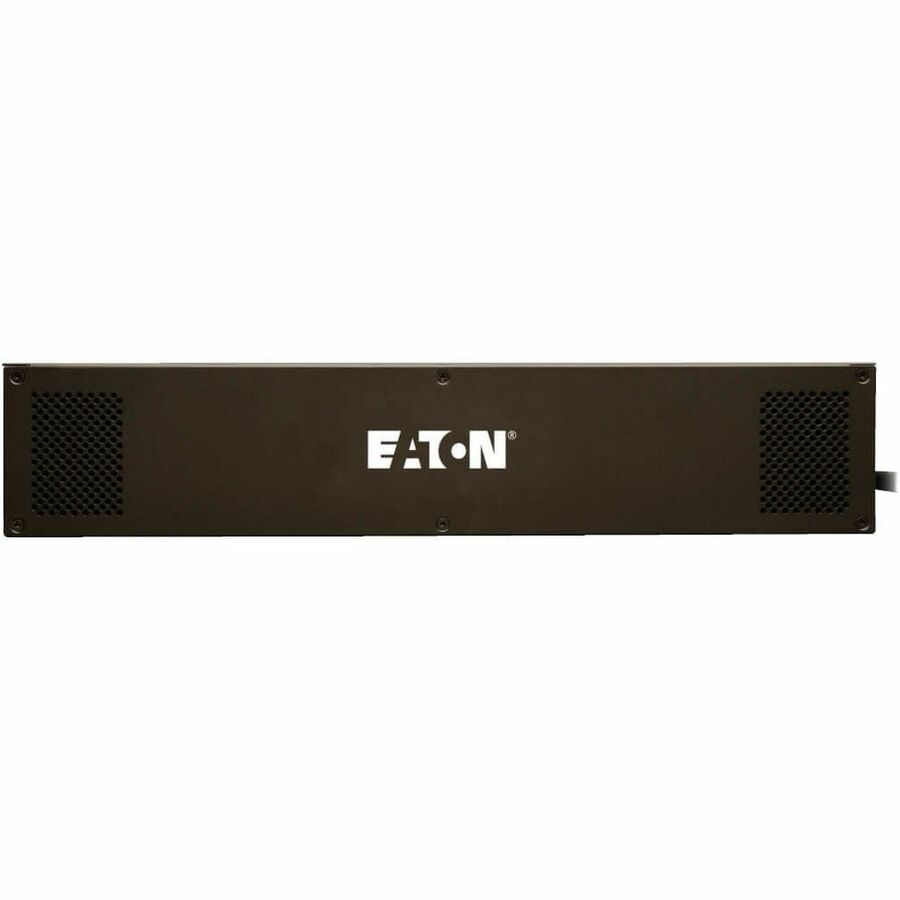

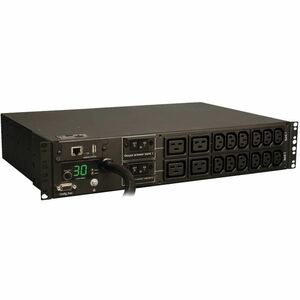

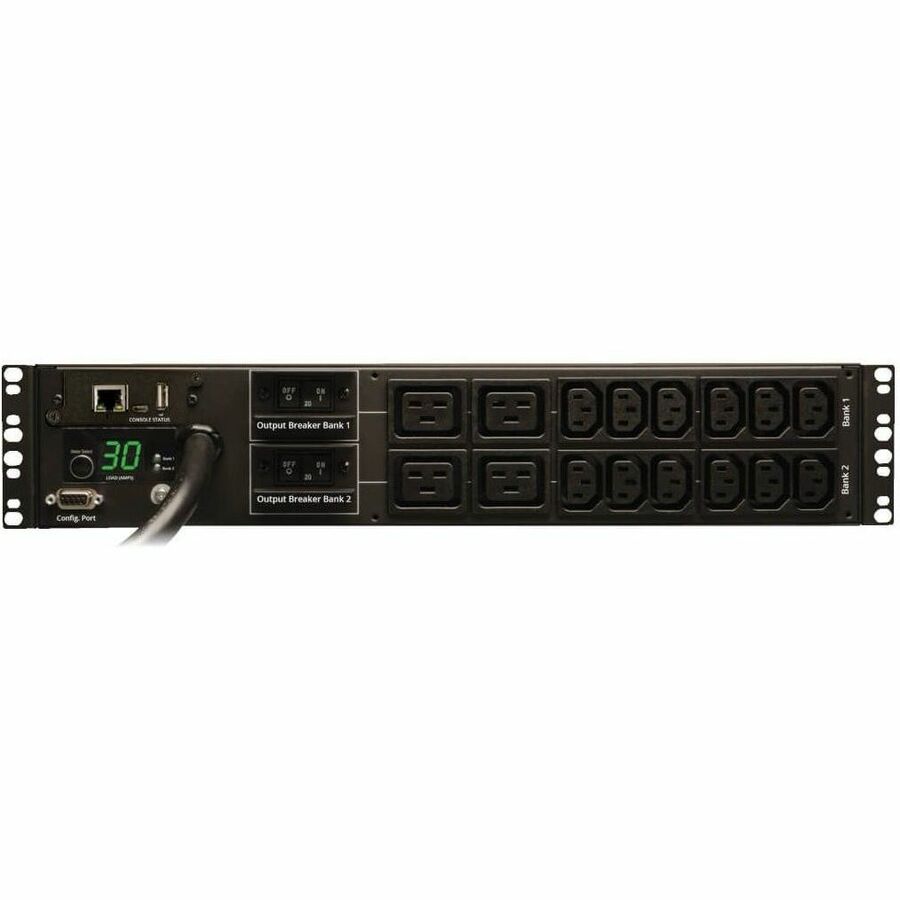

Tripp Lite by Eaton PDU 5.5kW Single-Phase Monitored PDU with LX Platform Interface 208/230V Outlets (12-C13 and 4-C19) L6-30P 12 ft. (3.66 m) Cord 2U Rack-Mount TAA
4 x IEC 60320 C19, 12 x IEC 60320 C13 - 2U - Horizontal Rackmount"
Product ID
Mfg. Part: PDUMNH30HV
UNSPSC: 39121017
MNJPartNumber: MNJ8839002
Availability
800-870-4340
Contact your MNJ Sales Representative for the latest availability
Product Pricing
$1,249.50
Options & Accessories
Tripp Lite by Eaton C20 to C13 Power Cord for Computer - Heavy-Duty 15A 100-250V 14 AWG 7 ft. (2.13 m) Black
15A, 12AWG (IEC-320- C13 to IEC-320-C20) 7-ft."
Mfg. Part: P032-007
$44.07
Eaton Tripp Lite Series C14 Male to C13 Female Splitter, PDU Style - C14 to 2x C13, 10A, 250V, 18 AWG, 6 ft. (1.83 m), Black
10A, 18AWG (IEC-320-C14 to 2x IEC-320-C13) 6-ft."
Mfg. Part: P004-006-2C13
$34.68
Tripp Lite by Eaton Power Cord C19 to C14 - Heavy-Duty 15A 250V 14 AWG 10 ft. (3.05 m) Black
(IEC-320-C19 to IEC-320-C14) 10-ft.
Mfg. Part: P047-010
$58.05
Tripp Lite by Eaton Power Cord C19 to C14 - Heavy-Duty 15A 250V 14 AWG 4 ft. (1.22 m) Black
(IEC-320-C19 to IEC-320-C14) 4-ft.
Mfg. Part: P047-004
$49.4
Eaton Tripp Lite Series Power Extension Cord, Left-Angle C13 to C14 PDU Style - 10A, 250V, 18 AWG, 2 ft. (0.61 m), Black
10A, 18AWG (IEC-320-C14 to Left Angle IEC-320-C13) 2-ft."
Mfg. Part: P004-002-13LA
$12.09
Main Features
Offers real-time remote monitoring of voltage, frequency and load levels via built-in network connection. The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

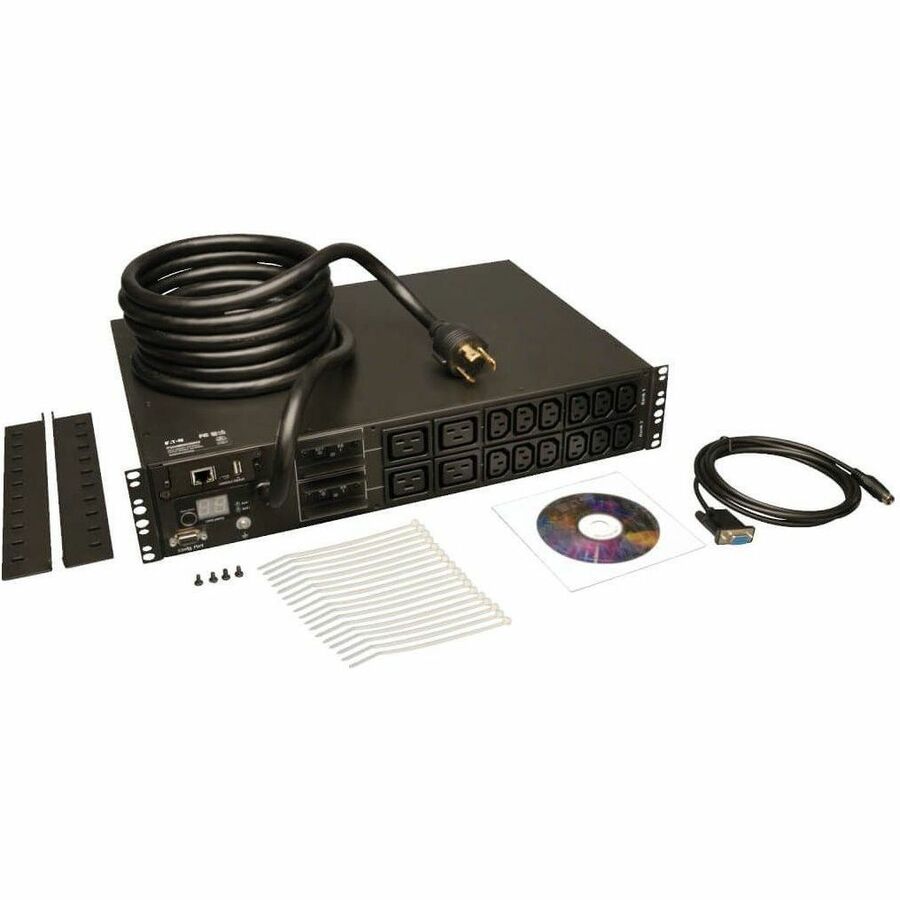

PDU lighted digital display enables visual monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
PDU lighted digital display enables visual monitoring of PDU output current to prevent circuit overloads as additional equipment is added. Offers reliable rackmount multi-outlet power distribution from any protected UPS, generator or mains input power source. High quality design includes rugged all-metal housing and secure rackmount installation with included mounting accessories.
Recent Technical Specifications
Similar Products

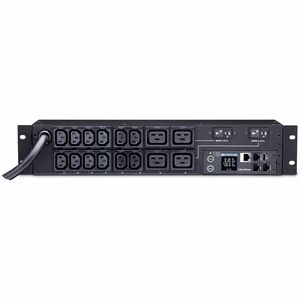

CyberPower PDU31008 Single Phase 200 - 240 VAC 30A Monitored PDU
