Eaton 9PX G2 PowerPass Distribution Module for 3kVA to 6kVA 9PX G2 UPS Systems, Hardwire Input/Output, 3U Rack/Tower

Hardwired - 1 x Hardwired - 230 V AC - Surge Protection - 3U - Rack-mountable - Rack/Tower

Product ID

Mfg. Part: 9PXPPDM2G2

UNSPSC: 39121000

MNJPartNumber: MNJ23564751

Availability

Limited

Product Pricing

$1,174.06

Options & Accessories

Eaton 9PX G2 3000VA 3000W 208V Online Double-Conversion UPS - L6-30P or Hardwired Input, 2 L6-20R, 2 L6-30R, Hardwired Output, Cybersecure Network Card, Extended Run, 3U Rack/Tower

3U Rack/Tower - 3 Hour Recharge - 7.50 Minute Stand-by - 230 V AC Input - 240 V AC, 230 V AC, 220 V AC, 208 V AC, 200 V AC, 250 V AC Output - Single Phase - Pure Sine Wave - Serial Port - USB - LCD Display - 2 x NEMA L6-20R, 2 x NEMA L6-30R Receptacle(s) - Network-M3 Card, INDGW-M2 Card, Relay-MS Card

Mfg. Part: 9PX3K3UG2

$3958.23

Eaton 9PX 6000VA 5400W 208V Online Double-Conversion UPS - L6-30P or Hardwired Input, 2 L6-20R, 2 L6-30R, Lithium-ion Battery, Cybersecure Network Card, Extended Run, 3U Rack/Tower

6000VA 5400W 208V 9PX Online Double-Conversion UPS

Mfg. Part: 9PX6K-L

$8874.44

Eaton 9PX G2 6000VA 5400W 208V Online Double-Conversion UPS - L6-30P or Hardwired Input, 2 L6-20R, 2 L6-30R, Hardwired Output, Cybersecure Network Card, Extended Run, 3U Rack/Tower

3U Rack/Tower - 3 Hour Recharge - 3 Minute Stand-by - 230 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC Output - Single Phase - Sine Wave, Pure Sine Wave - Serial Port - USB - LCD Display - 2 x NEMA L6-20R, 2 x NEMA L6-30R Receptacle(s) - INDGW-M2 Card, Relay-MS Card, Network-M3 Card, Network Card

Mfg. Part: 9PX6KG2

$5674.8

Eaton 9PX G2 5000VA 5000W 208V Online Double-Conversion UPS - L6-30P or Hardwired Input, 2 L6-20R, 2 L6-30R, Hardwired Output, Cybersecure Network Card, Extended Run, 3U Rack/Tower

3U Rack/Tower - 3 Hour Recharge - 3.50 Minute Stand-by - 230 V AC Input - 240 V AC, 230 V AC, 220 V AC, 208 V AC, 200 V AC Output - Single Phase - Pure Sine Wave - Serial Port - USB - LCD Display - 2 x NEMA L6-20R, 2 x NEMA L6-30R Receptacle(s) - Network-M3 Card, INDGW-M2 Card, Relay-MS Card

Mfg. Part: 9PX5KG2

$5259.29

Overview
Specification

Main Features

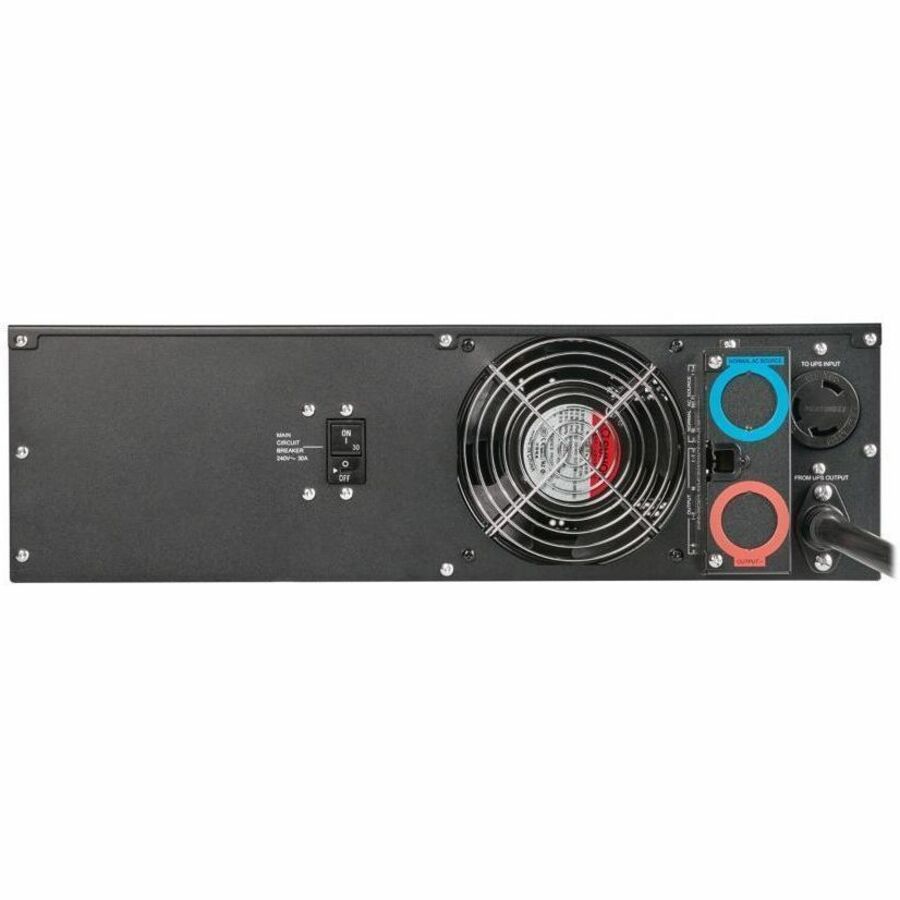

208V to 120V Power Distribution Module Converts High-Voltage Input to Low-Voltage Output

The 9PXPPDM2G2 converts your UPS system's 208V high-voltage input to 120V low-voltage output. It features hardwired input and output for connecting equipment and resettable 30A circuit breakers that protect against overload conditions.

Compatible with Select Eaton UPS Systems

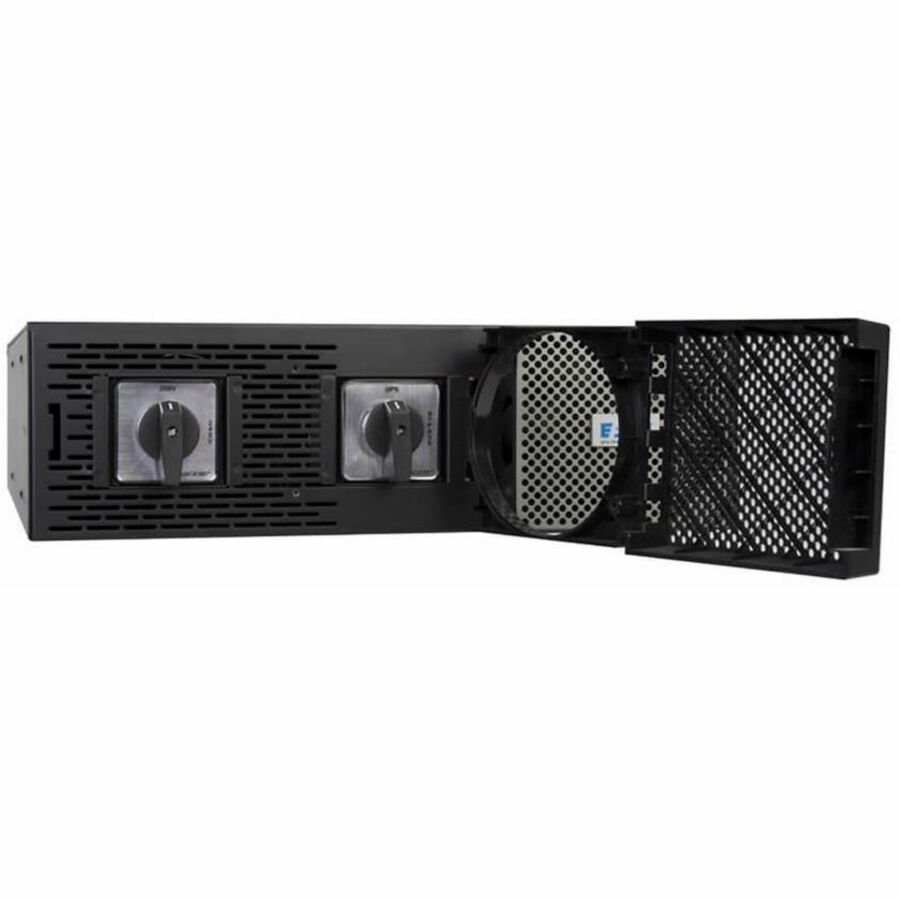

The 9PXPPDM2G2 works with Eaton's 9PX5KG2, 9PX6KG2, 9PX6K-L and 9PX3K3UG2 9PX G2 UPS systems. Its front-panel maintenance bypass switch lets you service or replace the UPS system without powering down any equipment and risking costly downtime. All connected equipment remains energized, even while the UPS system is not present.

Versatile Installation Options

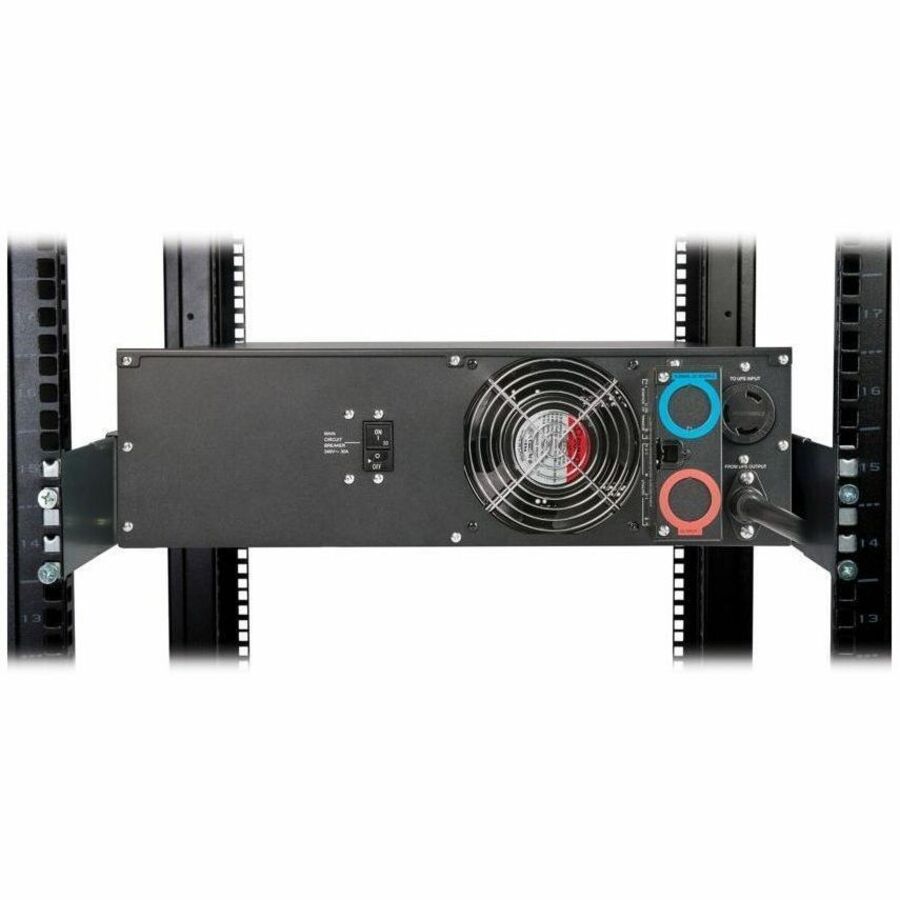

You can mount the 9PXPPDM2G2 in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit or an optional 2-post rail kit (RK2PC, sold separately). You can also adapt it for tower installation using the included joining bracket and hardware.
