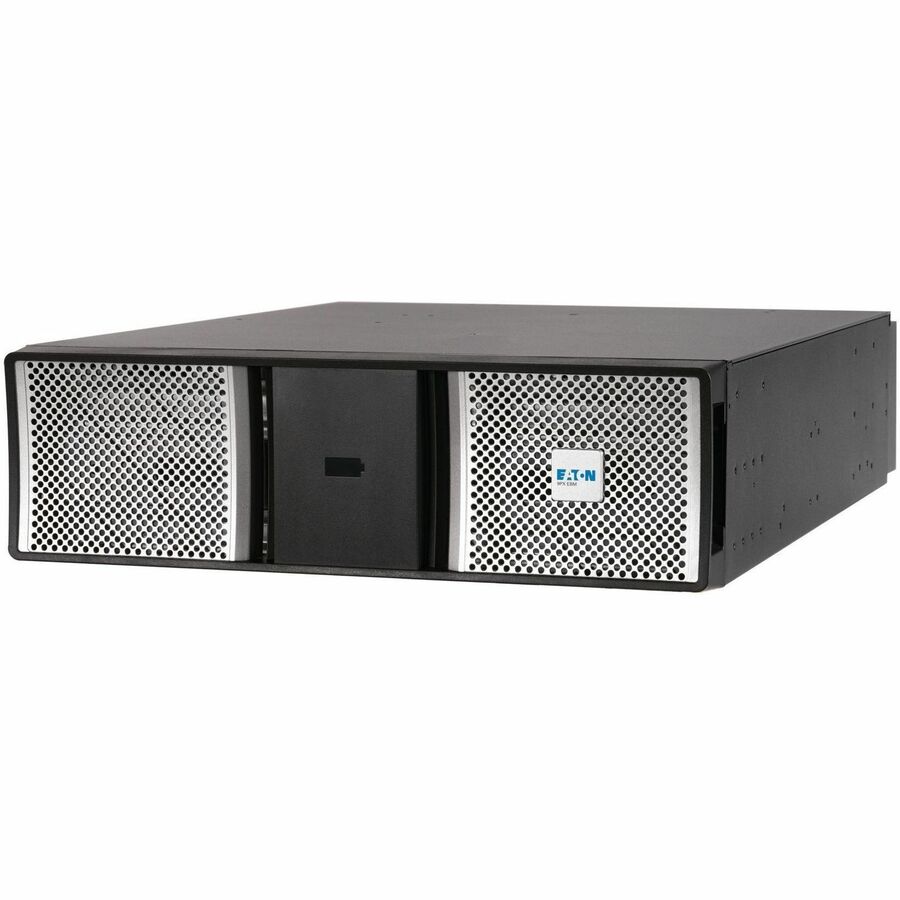

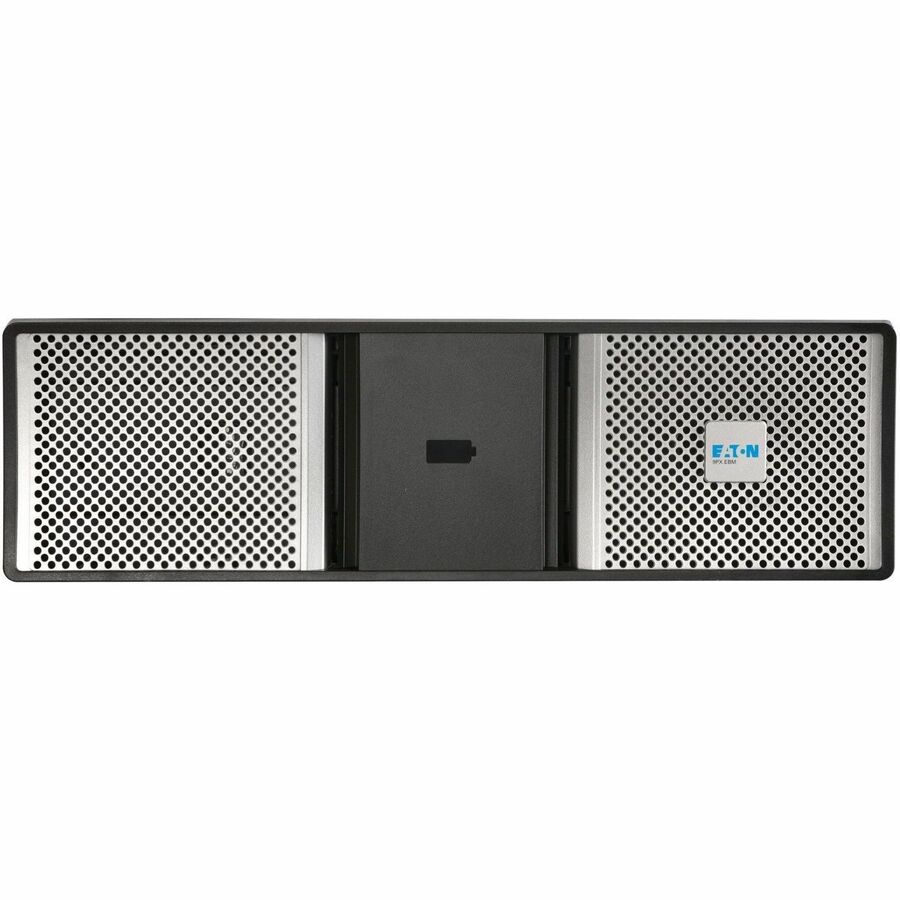

Eaton 180V Extended Battery Module (EBM) for Select Eaton 9PX G2 UPS Systems, 3U Rack/Tower

180 V DC - Lead Acid - Valve-regulated/User Replaceable - Hot Swappable

Product ID

Mfg. Part: 9PXEBM180RTG2

UNSPSC: 26111700

MNJPartNumber: MNJ23564749

Availability

Limited

Product Pricing

$1,631.78

Options & Accessories

Eaton 2-Post Rack-Mount Installation Kit for Select UPS Systems

Mfg. Part: RK2PC

$118.1

Eaton 9PX G2 3000VA 3000W 208V Online Double-Conversion UPS - L6-30P or Hardwired Input, 2 L6-20R, 2 L6-30R, Hardwired Output, Cybersecure Network Card, Extended Run, 3U Rack/Tower

3U Rack/Tower - 3 Hour Recharge - 7.50 Minute Stand-by - 230 V AC Input - 240 V AC, 230 V AC, 220 V AC, 208 V AC, 200 V AC, 250 V AC Output - Single Phase - Pure Sine Wave - Serial Port - USB - LCD Display - 2 x NEMA L6-20R, 2 x NEMA L6-30R Receptacle(s) - Network-M3 Card, INDGW-M2 Card, Relay-MS Card

Mfg. Part: 9PX3K3UG2

$3958.23

Eaton 9PX G2 5000VA 5000W 208V Online Double-Conversion UPS - L6-30P or Hardwired Input, 2 L6-20R, 2 L6-30R, Hardwired Output, Cybersecure Network Card, Extended Run, 3U Rack/Tower

3U Rack/Tower - 3 Hour Recharge - 3.50 Minute Stand-by - 230 V AC Input - 240 V AC, 230 V AC, 220 V AC, 208 V AC, 200 V AC Output - Single Phase - Pure Sine Wave - Serial Port - USB - LCD Display - 2 x NEMA L6-20R, 2 x NEMA L6-30R Receptacle(s) - Network-M3 Card, INDGW-M2 Card, Relay-MS Card

Mfg. Part: 9PX5KG2

$5259.29

Eaton 9PX G2 6000VA 5400W 208V Online Double-Conversion UPS - L6-30P or Hardwired Input, 6 C39 and 6 C13 Outlets, Cybersecure Network Card, Extended Run, 3U Rack/Tower

3U Rack/Tower - 3 Hour Recharge - 3 Minute Stand-by - 230 V AC Input - 240 V AC, 230 V AC, 220 V AC, 208 V AC, 200 V AC Output - Single Phase - Pure Sine Wave - Serial Port - USB - LCD Display - 6 x IEC 60320 C13, 6 x IEC 60320 C39 Receptacle(s) - Network-M3 Card, INDGW-M2 Card, Relay-MS Card

Mfg. Part: 9PX6KIECG2

$5674.8

Eaton 9PX G2 6000VA 5400W 208/120V Online Double-Conversion UPS - L6-30P or Hardwired Input, 18x 5-20R, 2x L6-20R, 1x L6-30R, Cybersecure Network Card, Extended Run, 6U Rack/Tower

6U Rack/Tower - 3 Hour Recharge - 3 Minute Stand-by - 230 V AC Input - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC, 100 V AC, 110 V AC, 120 V AC Output - Single Phase - Sine Wave, Pure Sine Wave - Serial Port - USB - LCD Display - 18 x NEMA 5-20R, 2 x NEMA L6-20R, 1 x NEMA L6-30R, 1 x Hardwired Receptacle(s) - INDGW-M2 Card, Relay-MS Card, Network-M3 Card, Network Card

Mfg. Part: 9PX6KTF5G2

$6535.19

Overview
Specification

Main Features

Backup Battery Module Gives Your Compatible Eaton UPS System Extended Runtime

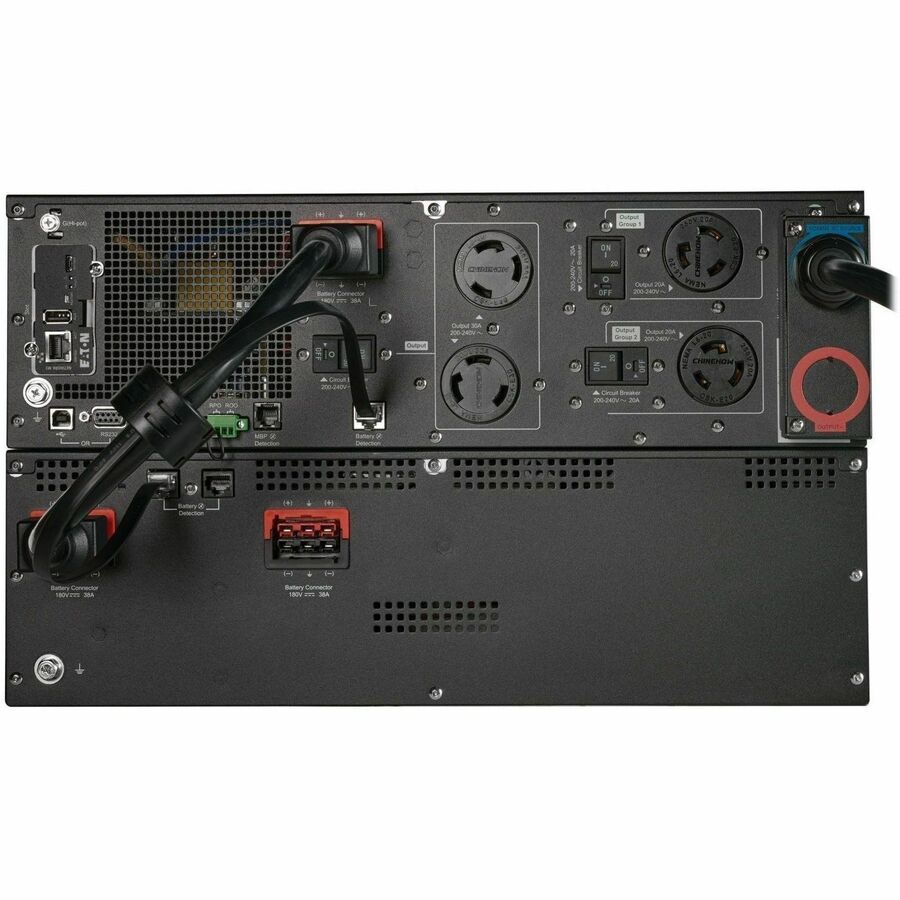

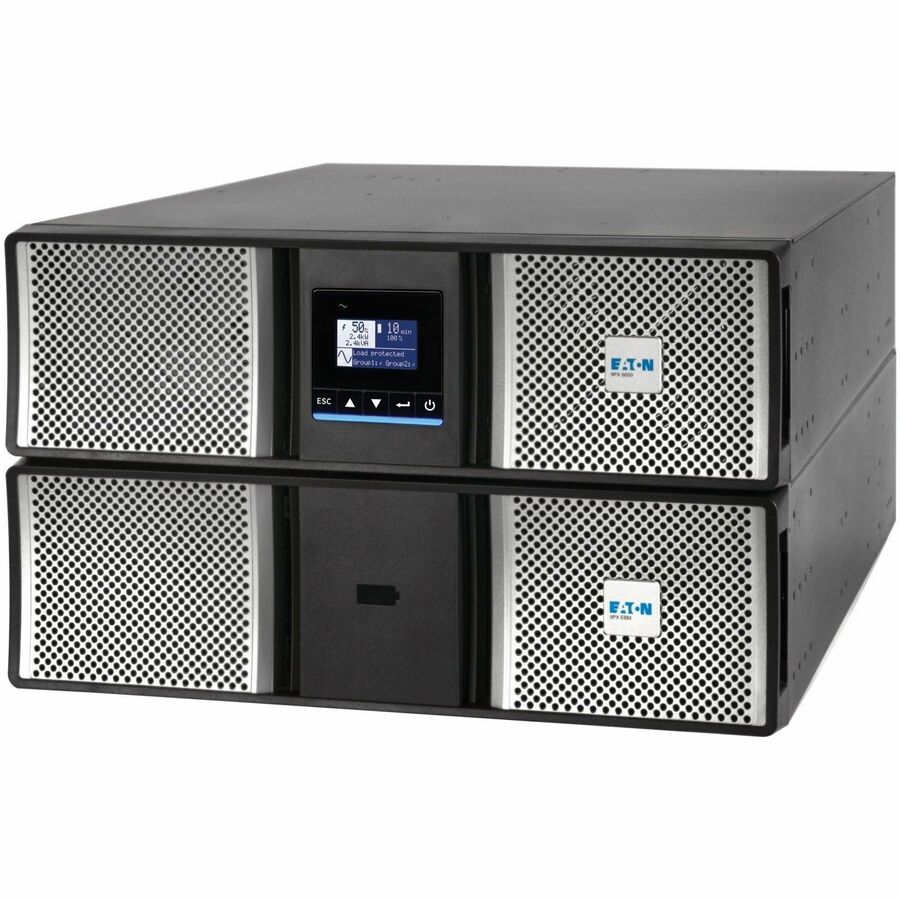

The 9PXEBM180RTG2 offers extended battery runtime when used in conjunction with Eaton's 9PX3K3UG2, 9PX3K3UNP1G2, 9PX3K3UNP2G2, 9PX3K3UNTF5G2, 9PX5KG2, 9PX5KP1G2, 9PX5KP2G2, 9PX5KTF5G2, 9PX6KG2, 9PX6KIECG2, 9PX6KP1G2, 9PX6KP2G2 and 9PX6KTF5G2 UPS systems. It can also be daisy-chained for a maximum of 12 auto-detected battery packs to deliver even longer extended-run operation. Heavy-gauge cabling with high-current DC connectors is included for safe, simple installation.

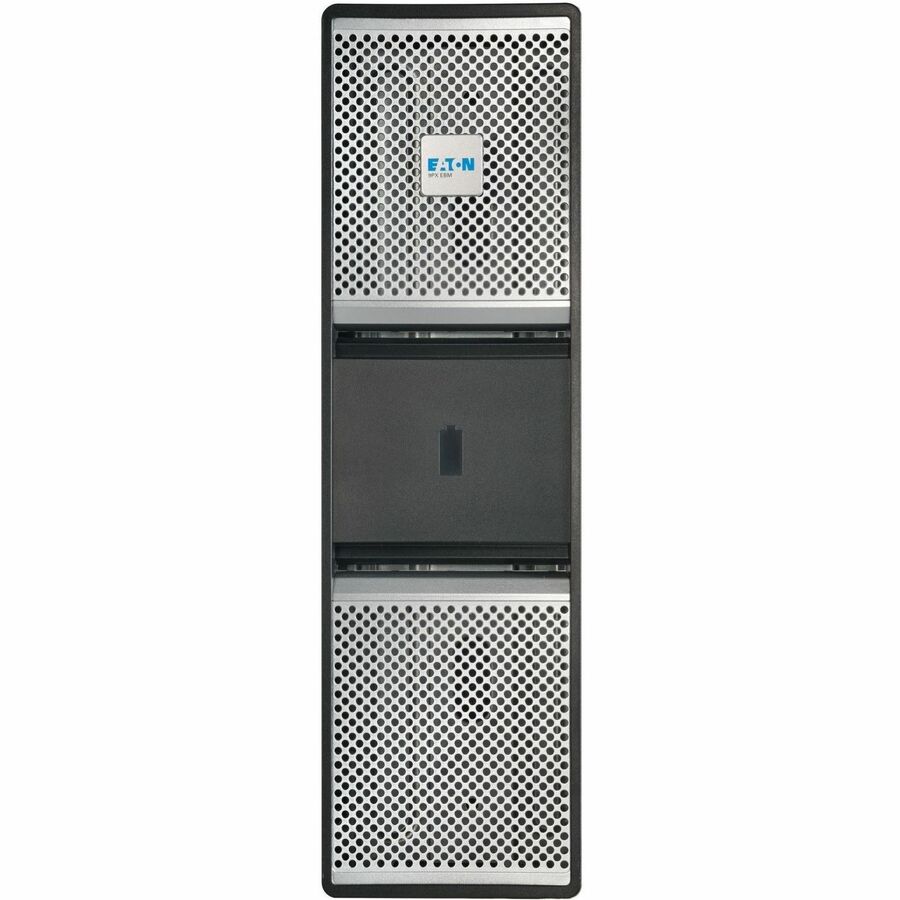

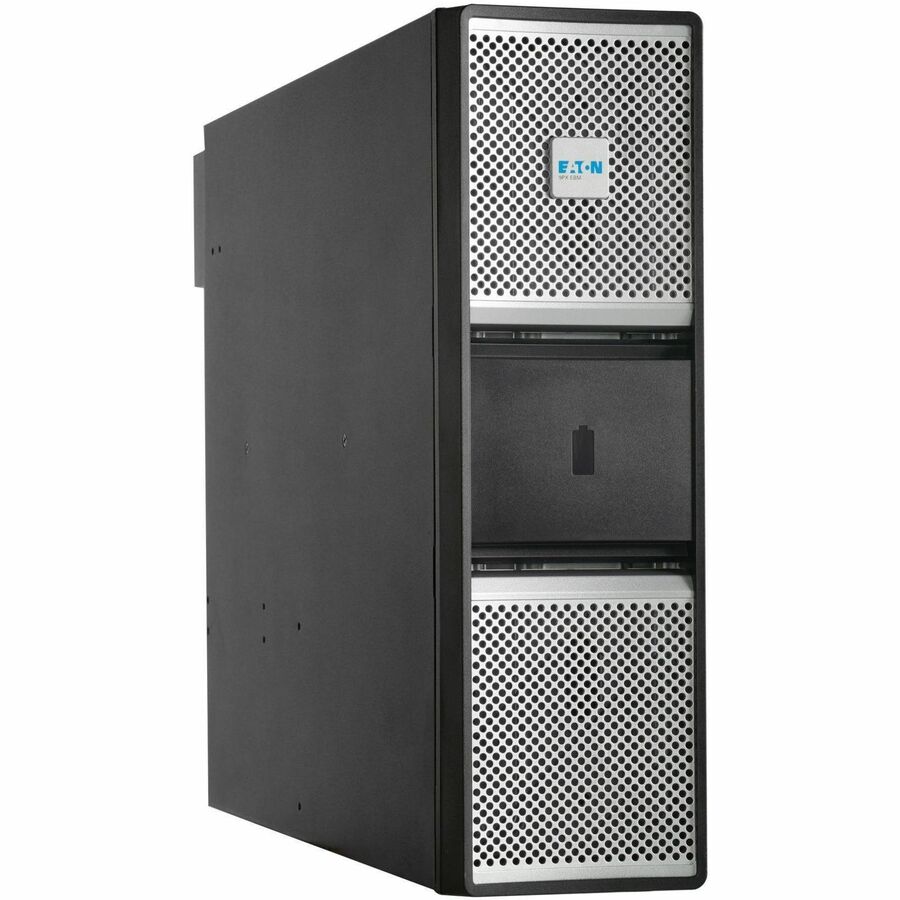

Supports 3U Rack or Tower Installation

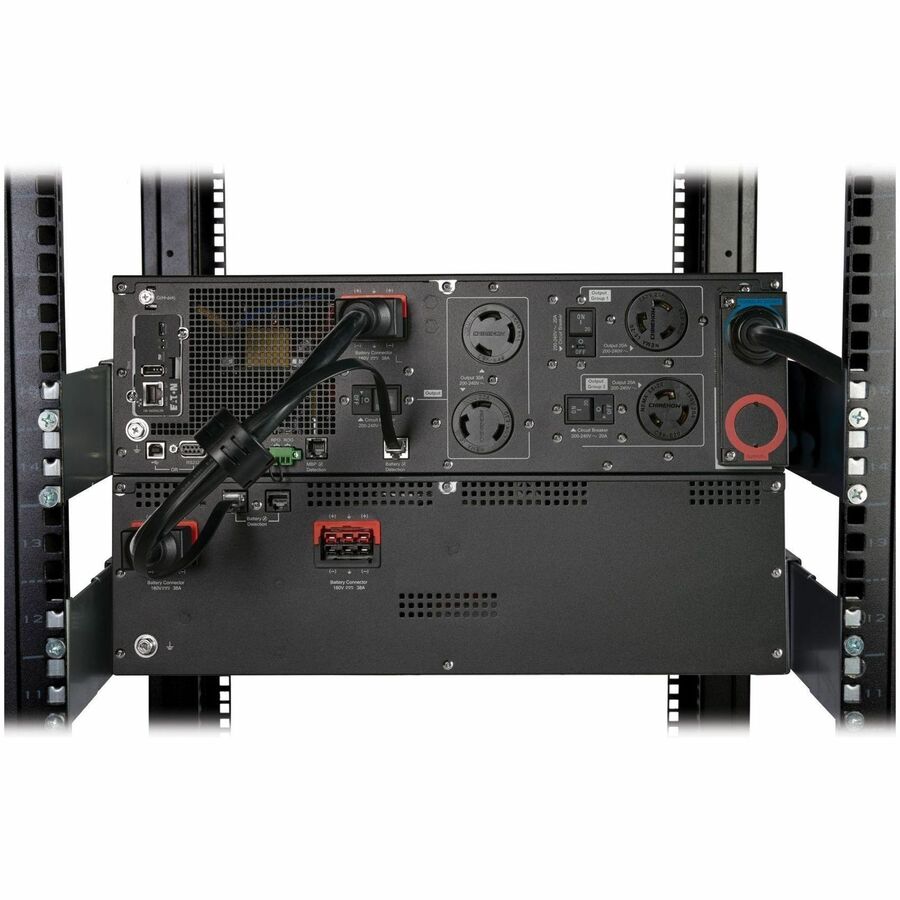

This backup battery pack's multi-use form factor supports mounting in 3U of space in an EIA-standard 19-inch rack using the included 4-post rail kit. You can also adapt it for tower installation using the included support stands. For installation in 2-post racks, one RK2PC mounting kit (sold separately) is required for each UPS, EBM, PPDM or transformer.
