Vertiv Geist Switched Rack PDU with Next Generation IMD - 1U| 20A| 120V| (12) NEMA 5-20R Receptacles| NEMA L5-20P Plug| 1.9kW Power Capacity| VP5N21A1
Redundant Power-Sharing Port | High-Contrast Display | Internal Orientation Sensor | Enhanced Security | Interchangeable Monitoring Device | UL Listed | TAA-Compliant | RoHS Certified | Hyperscale| 3-Year Warranty Which Extends to 5-Year Warranty if Registered Within 120 Days of Purchase
Product ID
Mfg. Part: VP5N21A1
UNSPSC: 39121017
MNJPartNumber: MNJ23366360
Availability
800-870-4340
Contact your MNJ Sales Representative for the latest availability
Product Pricing
$1,179.42
Main Features

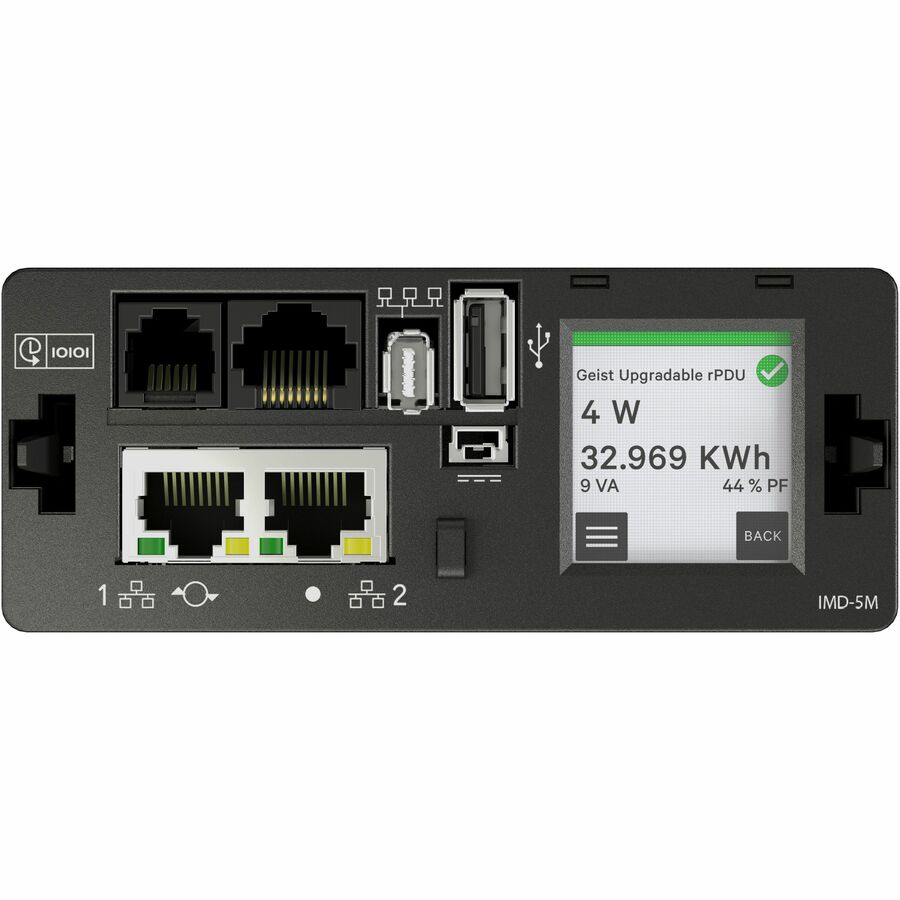

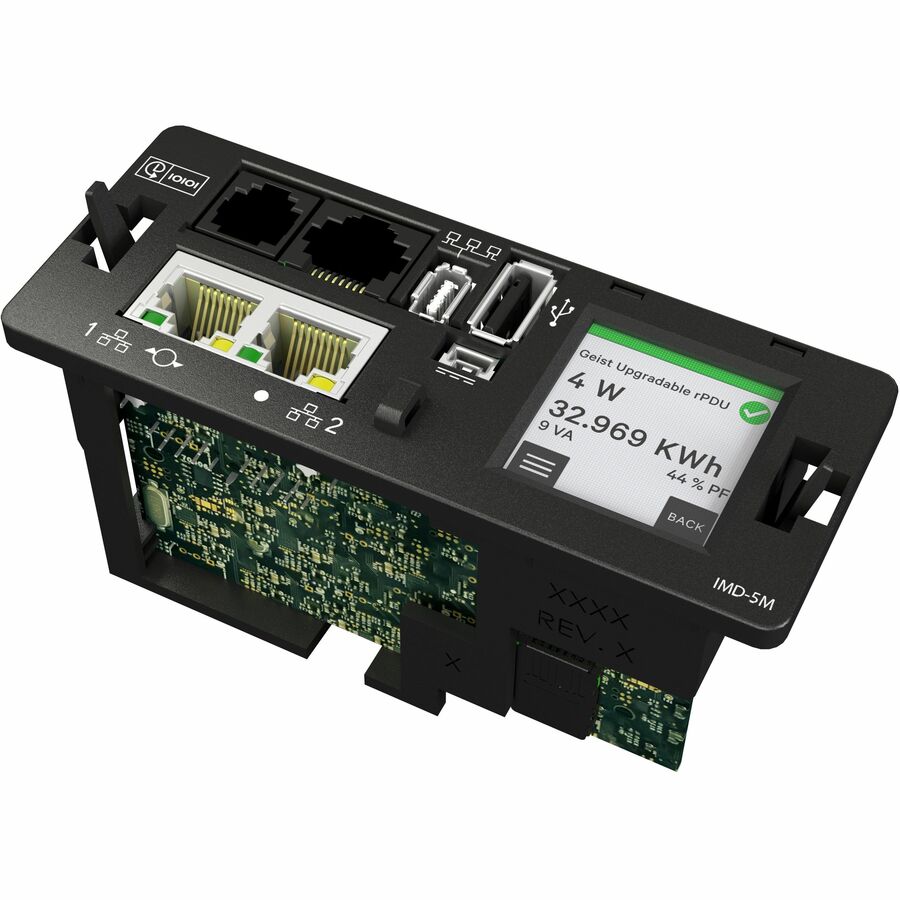

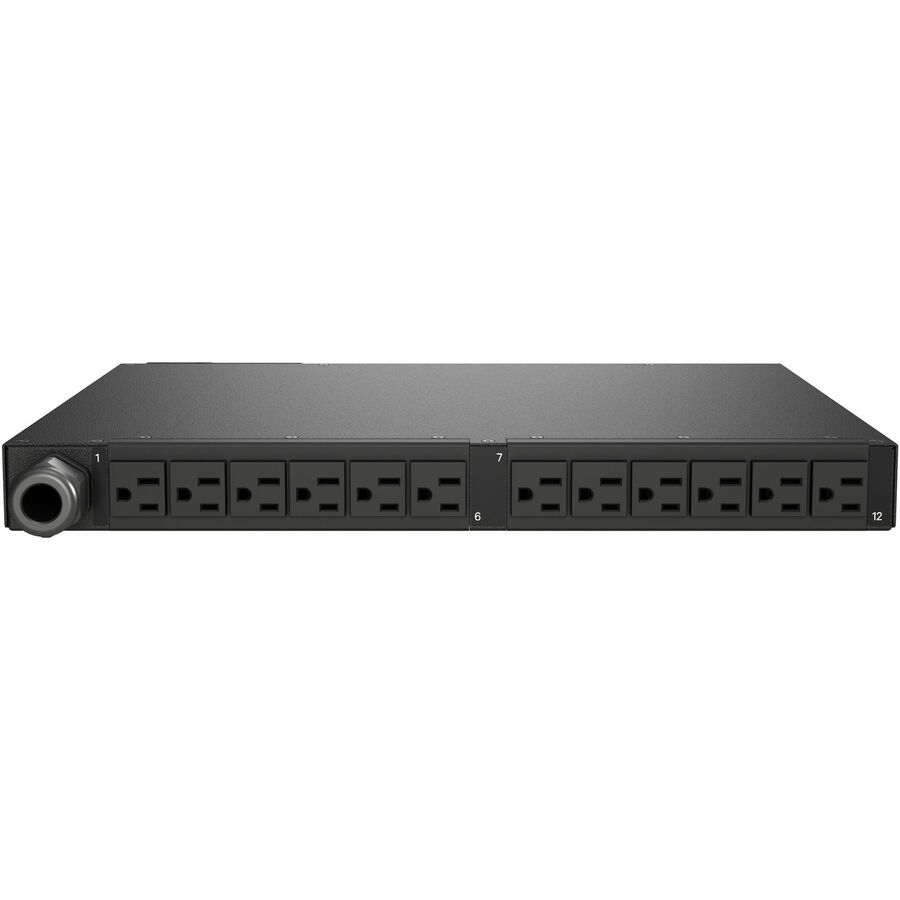

The Vertiv Geist Switched RPDU VP5N21A1 is a 20A, 120V, 1U, horizontal rack power distribution unit with input power monitoring and outlet level switching. It has (12) NEMA 5-20R receptacles and a NEMA L5-20P plug providing 1.9kW of power capacity. This device allows you to remotely turn off receptacles to avoid accidental overloads and power cycle equipment to reboot unresponsive critical IT equipment. It is integrated with the Vertiv Geist Next-Generation IMD which displays power data via its 128x128 high-visibility LCD. It has an internal sensor that intelligently adjusts the orientation based on horizontal or vertical installation. This includes a redundant power-sharing port that connects two IMDs in the rack and provides backup power in case of power loss. Enhanced security with a secure boot is added to the device to help ensure data and operations are protected. The units are UL-listed, TAA-compliant, RoHS certified, and individually tested for functionality and reliability.
Recent Technical Specifications
