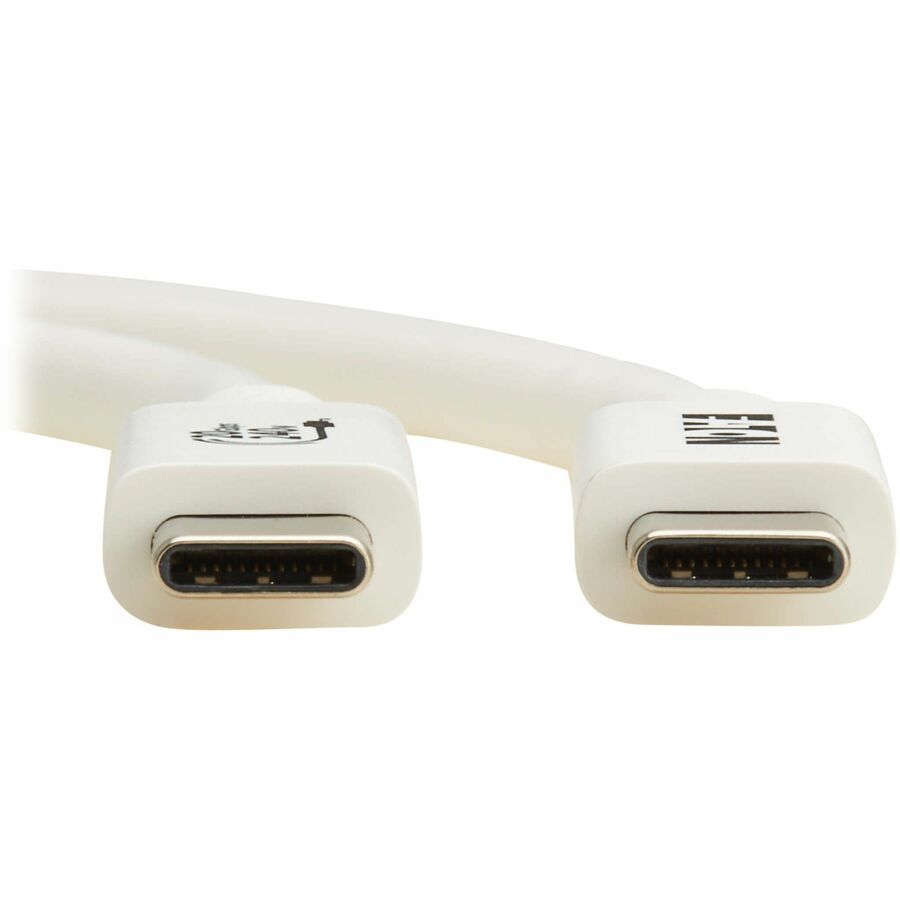

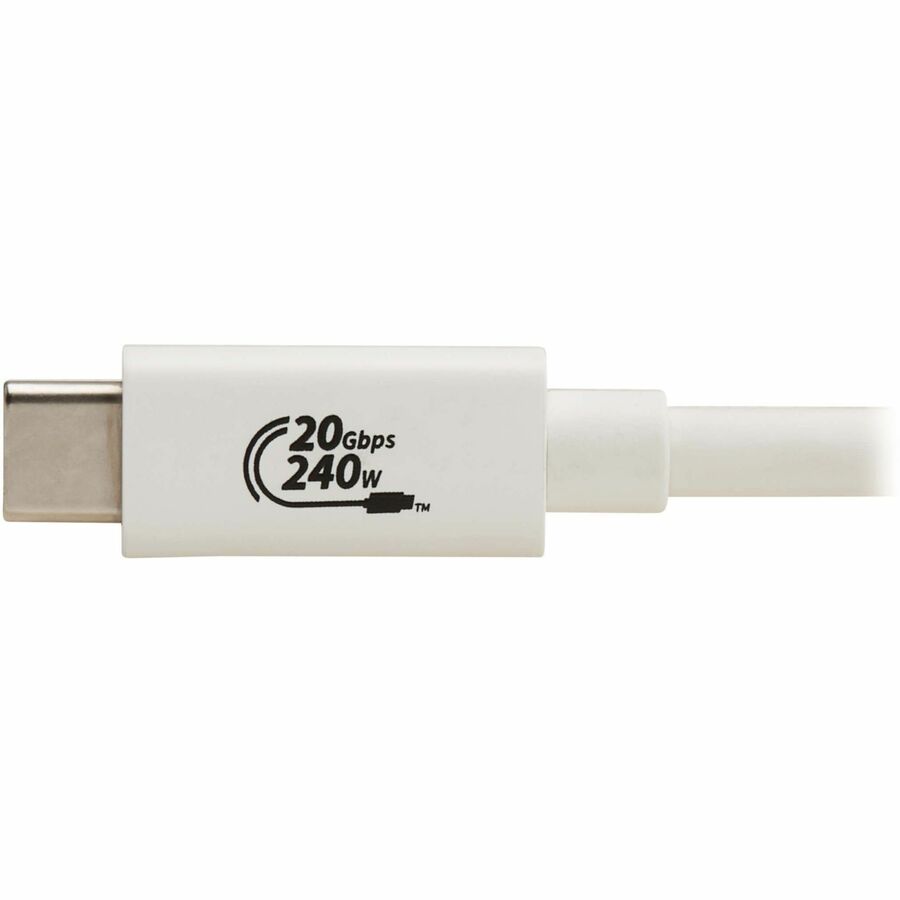

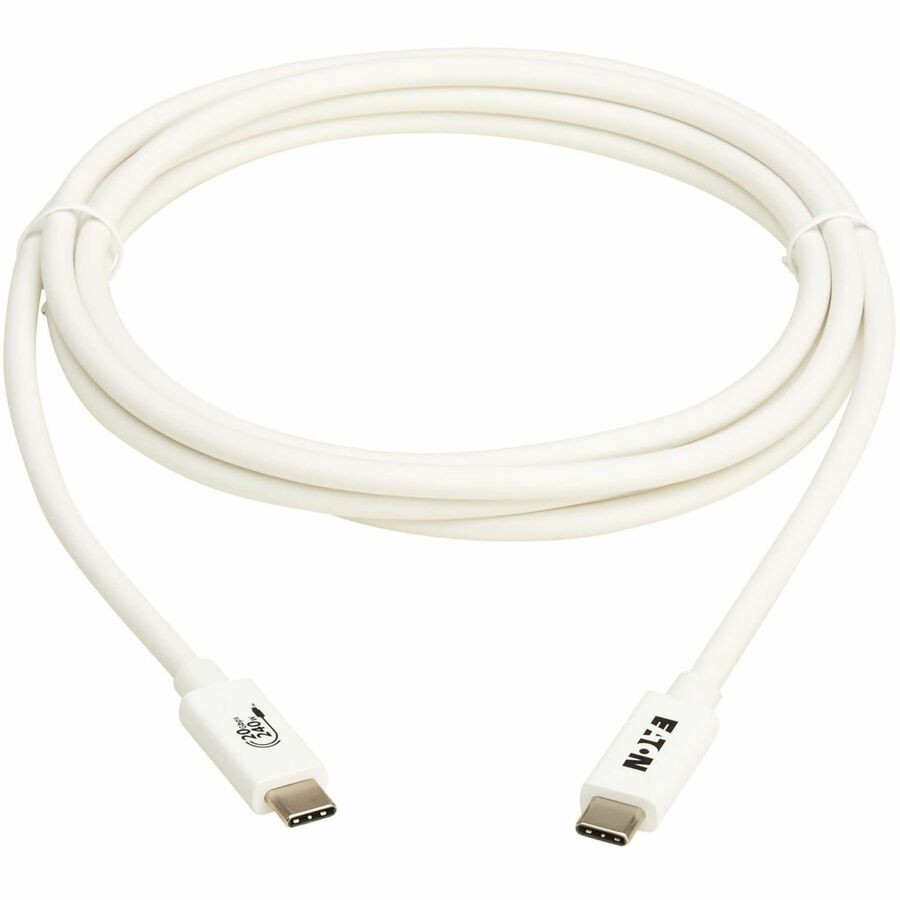

Eaton Tripp Lite Series USB4 20Gbps Cable (M/M) - USB-C, 4K 60 Hz, 240W PD Charging, White, 2 m (6.6 ft.)

6.56 ft USB4 Data Transfer Cable for Digital Text Reader, Chromebook, Computer, Notebook, Monitor, HDTV, Smartphone, Gaming System, MacBook, Gaming Console, External Hard Drive, ... - First End: 1 x USB4 Type C - Male - Second End: 1 x USB4 Type C - Male - 20 Gbit/s - Supports up to 3840 x 2160 - Nickel Plated Connector - Gold Plated Contact - VW-1 - 34/31/23 AWG - White

Product ID

Mfg. Part: U521-1P0M-WH20G

UNSPSC: 26121620

MNJPartNumber: MNJ23198440

Availability

Limited

Product Pricing

$36.29

Options & Accessories

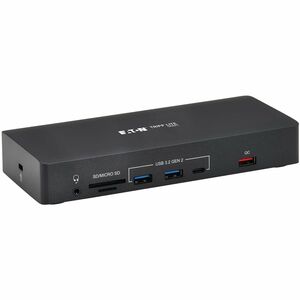

Eaton Tripp Lite Series USB-C Dock, Triple Display - 4K 60 Hz HDMI/DisplayPort, VGA, USB 3.2 Gen 2, USB Hub, Gigabit Ethernet, 100W PD Charging, Antibacterial

for Tablet PC/Printer/Smatphone/Projector/Monitor/Headphone/Digital Video Recorder/Watch/Notebook/Desktop PC - Charging Capability - Memory Card Reader - SD, microSD (TransFlash) - USB Type C - 3 Displays Supported - 4K, VGA, Full HD - 4096 x 2160, 3840 x 2160, 1920 x 1200, 1920 x 1080 - 7 x USB Ports - 2 x USB 2.0 - 2 x USB 3.0 - 5 x USB Type-A Ports - USB Type-A - 2 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 2 x HDMI Ports - HDMI - VGA - 1DisplayPort

Mfg. Part: U442AB-DOCK9

$226.91

Eaton Tripp Lite Series Compact 1-Port USB-C Wall Charger - GaN Technology, 100W PD3.0 Charging, White

120 V AC, 230 V AC Input - 5 V DC/5 A, 9 V DC, 15 V DC, 20 V DC Output - White

Mfg. Part: U280-W01-100C1G

$59.9

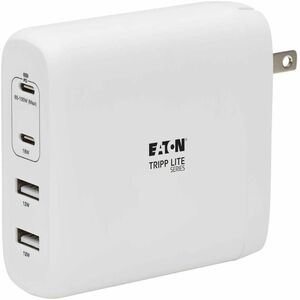

Eaton Tripp Lite Series 4-Port Compact USB Wall Charger - GaN Technology, 100W PD Charging, 2 USB-C & 2 USB-A, White

120 V AC, 230 V AC Input - 5 V DC/5 A, 9 V DC, 15 V DC, 20 V DC Output - White

Mfg. Part: U280-W04-100C2G

$68.11

Eaton Tripp Lite Series USB-C Mini Dock and Multiport Adapter - 8K or 4K/144 Hz HDMI, USB 3.x Gen 2 (10Gbps) Hub Ports, 100W PD Charging, HDR, HDCP 2.3

for TV/Monitor/Notebook/Keyboard/Mouse/Smartphone/Tablet/Desktop PC/Projector/Flash Drive/Digital Video Recorder/Printer - USB Type C - 1 Displays Supported - 4K, 8K, 5K, Full HD, HD - 7680 x 4320, 3840 x 2160, 1920 x 1080, 5120 x 2880, 1280 x 720 - 4 x USB Ports - 3 x USB Type-A Ports - USB Type-A - 1 x USB Type-C Ports - USB Type-C - 1 x HDMI Ports - HDMI - DisplayPort - Gray - Wired - Windows - 100W

Mfg. Part: U442-DOCK40-5

$56.59

Eaton Tripp Lite Series USB-C Mini Dock and Multiport Adapter - 8K or 4K/144 Hz HDMI, USB 3.x Gen 2 (10Gbps) Hub Ports, Gigabit Ethernet, 100W PD Charging, HDR, HDCP 2.3

for TV/Monitor/Notebook/Keyboard/Mouse/Smartphone/Tablet/Desktop PC/Projector/Flash Drive - USB Type C - 1 Displays Supported - 8K, 4K, 5K, Full HD, HD - 7680 x 4320, 3840 x 2160, 5120 x 2880, 1920 x 1080, 1280 x 720 - 4 x USB Ports - 2 x USB Type-A Ports - USB Type-A - 2 x USB Type-C Ports - USB Type-C - 1 x RJ-45 Ports - Network (RJ-45) - 1 x HDMI Ports - HDMI - DisplayPort - Gray - Wired - Gigabit Ethernet - Windows - 100W

Mfg. Part: U442-DOCK40-6

$78.14

Overview
Specification

Main Features

USB4 Cable Streams Video and Processes Data at 20 Gbps, 4x Faster Than USB 3.0

This USB4 20Gbps cable (M/M) transmits across two bidirectional lanes, supporting speeds up to 20 Gbps, which is four times faster than USB 3.0/3.1/3.2. Unlike previous USB generations, the USB4 20Gbps cable has the ability to allocate resources. Instead of splitting video and data equally between its two lanes, the U521-1P0M-WH20G allows the connected display as much bandwidth as it needs, while saving all remaining bandwidth for high-speed data transfers. This makes the cable perfectly suited for 4K video streaming and editing.

Supports DisplayPort Alternate Mode for Unidirectional 20 Gbps Video Connections

By connecting a 4K display to a host device that supports DisplayPort Alt Mode 1.4, this cable can use both high-speed lanes to transmit 4K video at 60 Hz in one direction at 20 Gbps maximum speed with 24-bit True Color, HDR and 4:4:4 chroma subsampling.

Backward Compatible with Legacy USB and Thunderbolt 3 Devices

Though both connected devices must support USB4 20Gbps for the cable to reach its full potential, the U521-1P0M-WH20G is backward compatible with USB 3.x, USB 2.0 and Thunderbolt 3 devices. It connects two USB-C devices, including MacBooks, Chromebooks, Windows laptops, Kindles, game consoles, smartphones, external storage devices, docking stations and wall chargers. It is compatible with all USB-C and Thunderbolt 3 devices, enabling use in existing installations while preparing for future upgrades.

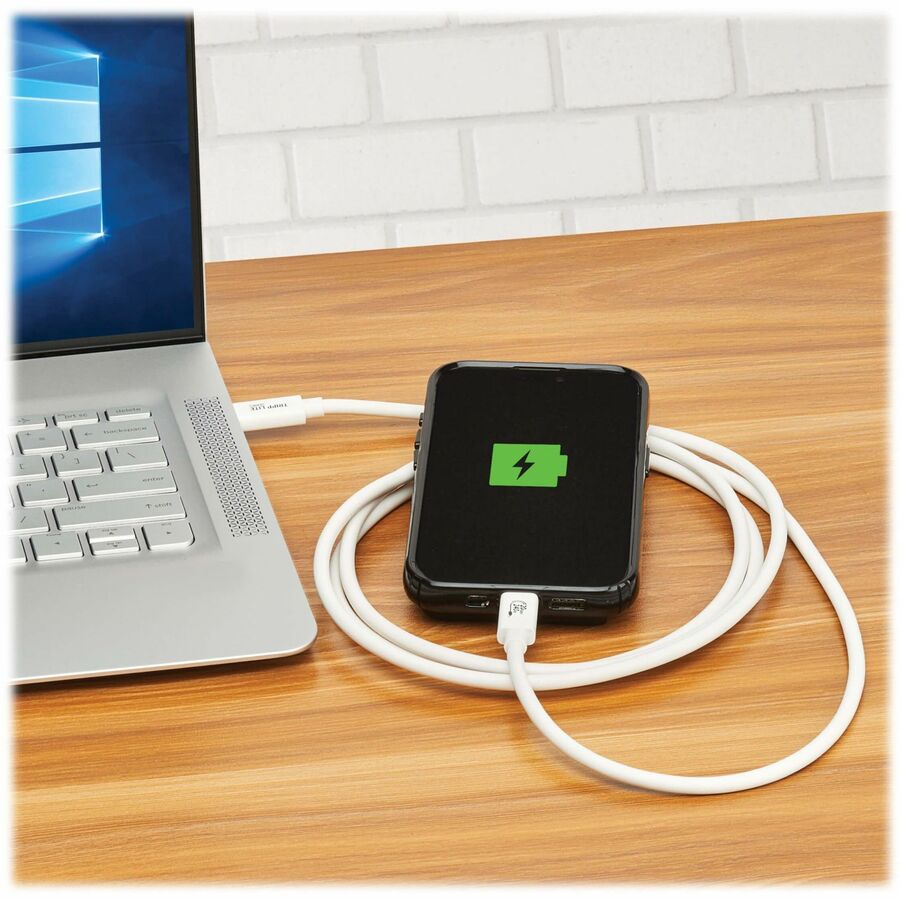

PD Charging Cable Keeps the Connected Notebook, Laptop or Other Device at Capacity

The U521-1P0M-WH20G supports Power Delivery (PD) 3.1 charging of the connected PD Charging-compliant device. It carries power output up to 48V 5A (240W), which is sufficient for fast-charging and powering your MacBook or other mobile device, including the latest iPhone and other smartphones with a USB-C connector.

USB-IF Certification Ensures Rigorous Testing and Top-of-the-Line Performance

This cable meets the high standards of USB-IF (USB Implementers Forum, Inc.), a non-profit organization consisting of companies that developed the USB specification. Receiving USB-IF certification means the U521-1P0M-WH20G meets the industry's highest environmental, mechanical and electrical standards. It operates with your USB peripherals, adapters and cables with top efficiency and safety.
