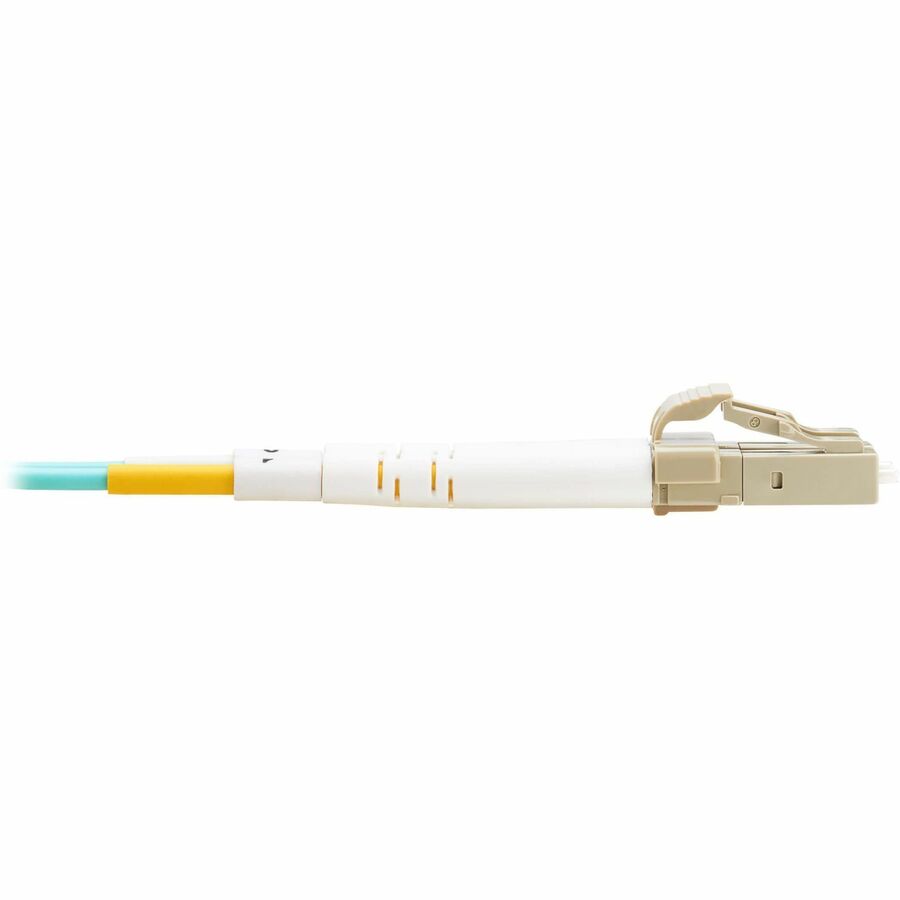

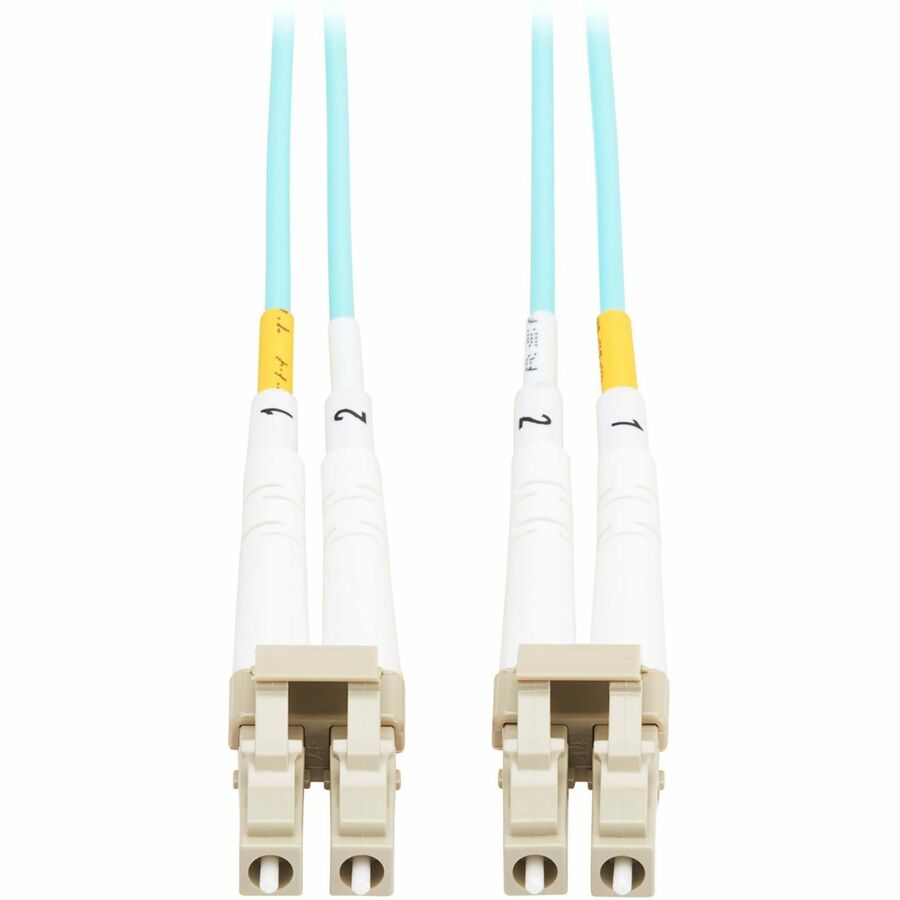

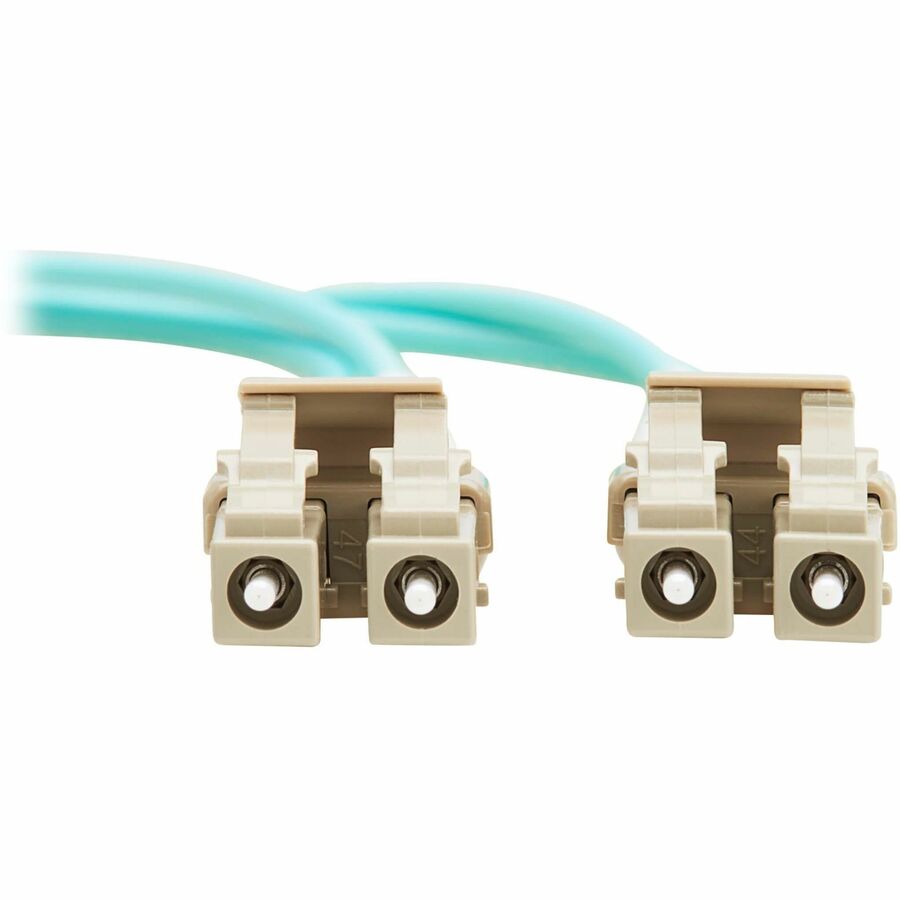

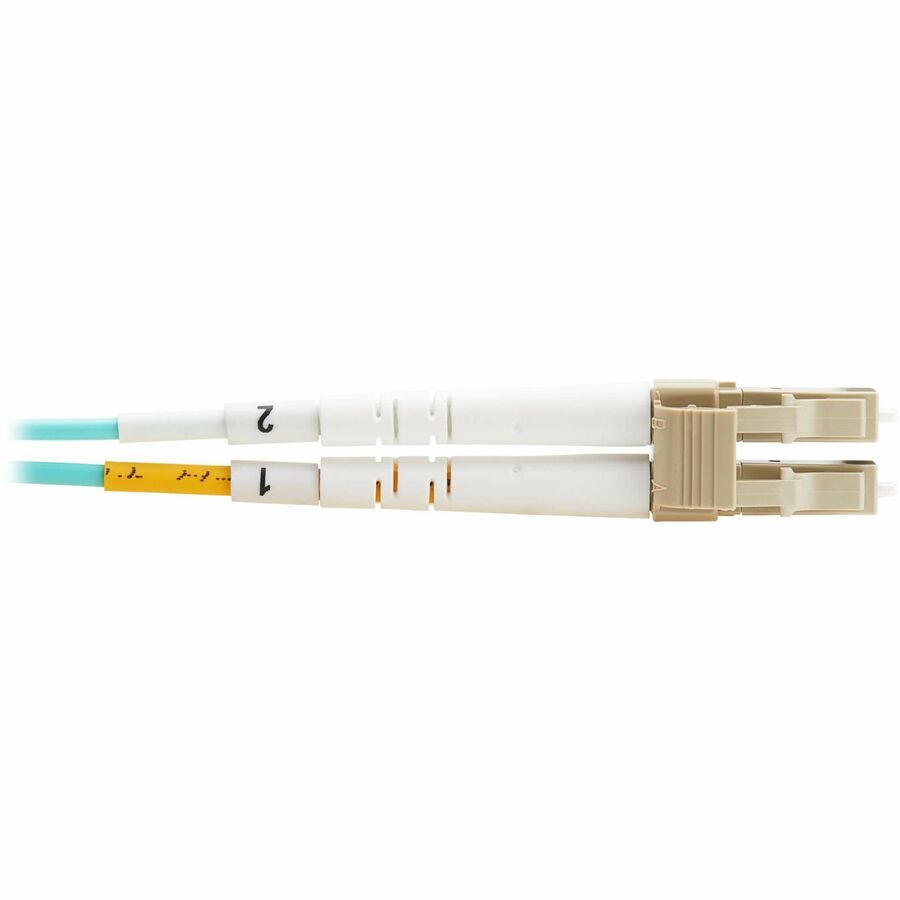

Eaton Tripp Lite Series 10Gb Duplex Multimode 50/125 OM3 OFNP Fiber Patch Cable (LC/LC) - Aqua, 6 m (19.7 ft.), TAA

19.69 ft Fiber Optic Network Cable for Network Device, Vertical Cavity Surface Emitting Laser (VCSEL), LED, Switch, Patch Panel - First End: 2 x LC Network - Male - Second End: 2 x LC Network - Male - 10 Gbit/s - Patch Cable - OFNP, LSZH - 50/125 µm - TAA Compliant

Product ID

Mfg. Part: N820-06M-TAA

UNSPSC: 26121607

MNJPartNumber: MNJ21278684

Availability

800-870-4340 Contact your MNJ Sales Representative for the latest availability

Product Pricing

$33.27

Options & Accessories

Eaton Tripp Lite Series Preloaded Fiber Panel, 1U - 2x (12x LC/LC Duplex M/M) 24F Trunk Cables, OM4 Multimode, 10 m (32.8 ft.)

24 x Duplex - 1U High - Aqua, White - 19" Wide - Rack-mountable

Mfg. Part: N48M-2L24L-10

$2828.69

Tripp Lite by Eaton 36-Port LC/LC Rackmount Fiber Enclosure Feed Through Patch Panel 1U

36 x LC - 36 Port(s) - 36 x RJ-11 - 36 x - 1U High - 19" Wide - Rack-mountable"

Mfg. Part: N492-036-LCLC-E

$586.99

Eaton Tripp Lite Series Sleeve Holds 1 High-Density Fiber Cassette, 0U

For Patch Panel - 0U Rack Height - Rack-mountable - Black - Cold-rolled Steel (CRS)

Mfg. Part: N482-00U

$139.5

Eaton Tripp Lite Series Enclosure Mini Panel for 4 Copper/Fiber Cassettes, 1U

For LAN Switch, Patch Panel - 1U Rack Height - Rack-mountable - Black - Cold Rolled Steel, Aluminum, Plastic

Mfg. Part: N484-01U-MINI

$310.13

Tripp Lite by Eaton Cisco-Compatible SFP-10G-SR SFP+ Transceiver - 10GBase-SR, LC Duplex MMF, 10 Gbps, 850 nm, 400 m (1312 ft.)

For Optical Network, Data Networking, Server, Switching Network - 1 x 10GBase-SR Network - Optical Fiber - Multi-mode - 10 Gigabit Ethernet - 10GBase-SR0.40 km Maximum Distance - Hot-swappable

Mfg. Part: N286-10G-SR-C

$129

Overview
Specification

Main Features

Support Higher Bandwidths in Data Networks with OM3 Multimode 50/125 Fiber Patch Cable

As the amount of traffic in data networks grows, so does the need for next generation devices and fiber cables to support higher bandwidths. This LC-to-LC multimode fiber optic Ethernet cable is well-suited for 10/40 Gb Ethernet applications up to 300 meters (984 feet) at 850 nm.

Use with VCSEL Light Sources for a Cost-Effective, High-Bandwidth Solution

The N820-06M-TAA is a laser-optimized multimode fiber (LOMMF) cable designed for use with verticalcavity surface-emitting lasers (VCSELs) and LED lasers to offer a cost-effective, high-bandwidth solution over extended distances in the 850 nm wavelength range. It is commonly used in LANs, SANs and highspeed parallel interconnects for head-ends, central offices and data centers.

Experience Reliable Performance with Premium Construction

Premium materials ensure this multimode fiber cable reliably carries data and voice signals. The N820- 06M-TAA has duplex male LC connectors on each end. The aqua OFNP (Optical Fiber Non-Conductive Plenum) jacket is highly fire-resistant, making this cable ideal for plenum areas such as drop ceilings and raised floors. It meets current IEEE 802.3ae and TIA LOMMF standards, and is compatible with existing OM3-rated 50/125 fiber solutions.

TAA-Compliant for GSA Schedule Purchases

The N820-06M-TAA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
