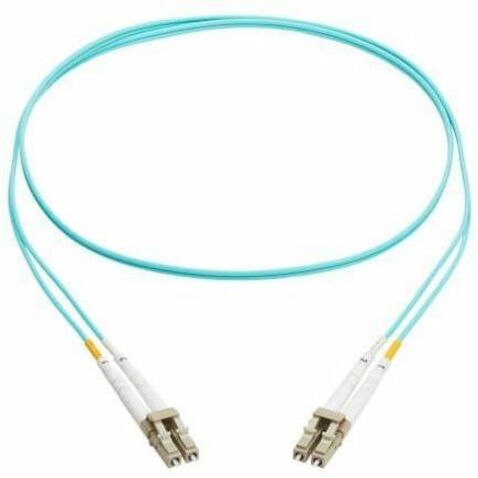

Eaton Tripp Lite Series 10Gb Duplex Multimode 50/125 OM3 OFNP Fiber Patch Cable (LC/LC) - Aqua, 2 m (6.6 ft.), TAA

6.56 ft Fiber Optic Network Cable for Network Device, Vertical Cavity Surface Emitting Laser (VCSEL), LED, Switch, Patch Panel - First End: 2 x LC Network - Male - Second End: 2 x LC Network - male - 10 Gbit/s - Patch Cable - OFNP, LSZH - 50/125 µm - TAA Compliant

Product ID

Mfg. Part: N820-02M-TAA

UNSPSC: 26121607

MNJPartNumber: MNJ21278680

Availability

Limited

Product Pricing

$24.89

Options & Accessories

Tripp Lite by Eaton Cisco-Compatible SFP-10G-SR SFP+ Transceiver - 10GBase-SR, LC Duplex MMF, 10 Gbps, 850 nm, 400 m (1312 ft.)

For Optical Network, Data Networking, Server, Switching Network - 1 x 10GBase-SR Network - Optical Fiber - Multi-mode - 10 Gigabit Ethernet - 10GBase-SR0.40 km Maximum Distance - Hot-swappable

Mfg. Part: N286-10G-SR-C

$129

Eaton Tripp Lite Series 100Gb/120Gb to 10Gb Breakout Cassette - 24-Fiber OM4 MTP/MPO ( Male with Pins ) to (x12) LC

1 x MTP/MPO, 12 x LC - 13 Port(s) - 13 x RJ-11 - 12 x"

Mfg. Part: N482-1M24-LC12

$805.9

Tripp Lite by Eaton High-Density Fiber Adapter Panel (MMF/SMF) 8 LC Duplex Connectors Black

8 Port(s) - 8 x Duplex - Black - Wall Mountable

Mfg. Part: N492-08D-LC

$104.1

Tripp Lite by Eaton High Density Rackmount Fiber Enclosure Panel 5 Cassette 1URM

1U High - 19" Wide - Rack-mountable"

Mfg. Part: N482-01U

$393.83

Tripp Lite by Eaton 36-Port LC/LC Rackmount Fiber Enclosure Feed Through Patch Panel 1U

36 x LC - 36 Port(s) - 36 x RJ-11 - 36 x - 1U High - 19" Wide - Rack-mountable"

Mfg. Part: N492-036-LCLC-E

$586.99

Overview
Specification

Main Features

Support Higher Bandwidths in Data Networks with OM3 Multimode 50/125 Fiber Patch Cable

As the amount of traffic in data networks grows, so does the need for next generation devices and fiber cables to support higher bandwidths. This LC-to-LC multimode fiber optic Ethernet cable is well-suited for 10/40 Gb Ethernet applications up to 300 meters (984 feet) at 850 nm.

Use with VCSEL Light Sources for a Cost-Effective, High-Bandwidth Solution

The N820-02M-TAA is a laser-optimized multimode fiber (LOMMF) cable designed for use with verticalcavity surface-emitting lasers (VCSELs) and LED lasers to offer a cost-effective, high-bandwidth solution over extended distances in the 850 nm wavelength range. It is commonly used in LANs, SANs and highspeed parallel interconnects for head-ends, central offices and data centers.

Experience Reliable Performance with Premium Construction

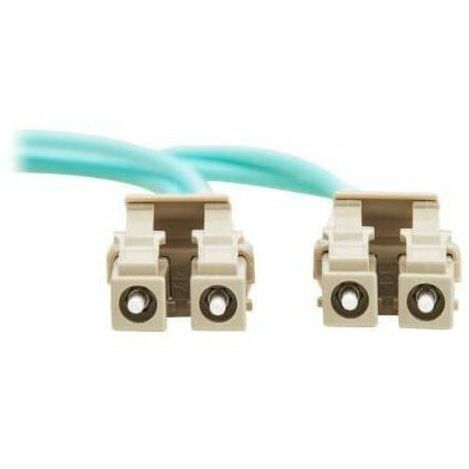

Premium materials ensure this multimode fiber cable reliably carries data and voice signals. The N820- 02M-TAA has duplex male LC connectors on each end. The aqua OFNP (Optical Fiber Non-Conductive Plenum) jacket is highly fire-resistant, making this cable ideal for plenum areas such as drop ceilings and raised floors. It meets current IEEE 802.3ae and TIA LOMMF standards, and is compatible with existing OM3-rated 50/125 fiber solutions.

TAA-Compliant for GSA Schedule Purchases

The N820-02M-TAA is compliant with the Federal Trade Agreements Act (TAA), which makes it eligible for GSA (General Services Administration) Schedule and other federal procurement contracts.
