SIIG 4-Port DisplayPort 1.4 8K MST Dual Head KVM Console Switch

4 port DisplayPort 8K MST Dual-Head KVM Switch, allows you to control 4 DisplayPort 8K computers using one keyboard and mouse and support to separate for dual head 4K60Hz DisplayPort via MST feature output, DP 1.4/8K@30, 32.4Gbps, 4 USB 3.2 Gen-1 ports, 3.5mm Phone & Mic Jacks, Switch Button, Hotkeys, Metal Housing, TAA Compliant

Features

Easily control/switch four DisplayPort 1.4 and USB computers with one set of keyboard & mouse to one 8K DisplayPort monitor or two 4K DisplayPort monitors and supports Multi-Stream Transport (MST) technology to enhance your productivity and efficiency

8K/4K Video Resolution

Supports Ultra HD video resolution up to a single 8K (7680x4320) @30Hz display and dual 4K (4096x2160) @60Hz displays YUV 4:4:4 8-bit, Deep color, and 3D

High Performance

Offers a true 32.4Gbps video bandwidth and supports 7.1ch surround sound

Effortlessly Switch

Switch freely between 4 computers/devices in different ways, such as front panel selection buttons and USB keyboard hotkeys

Multiple Connectivity Port

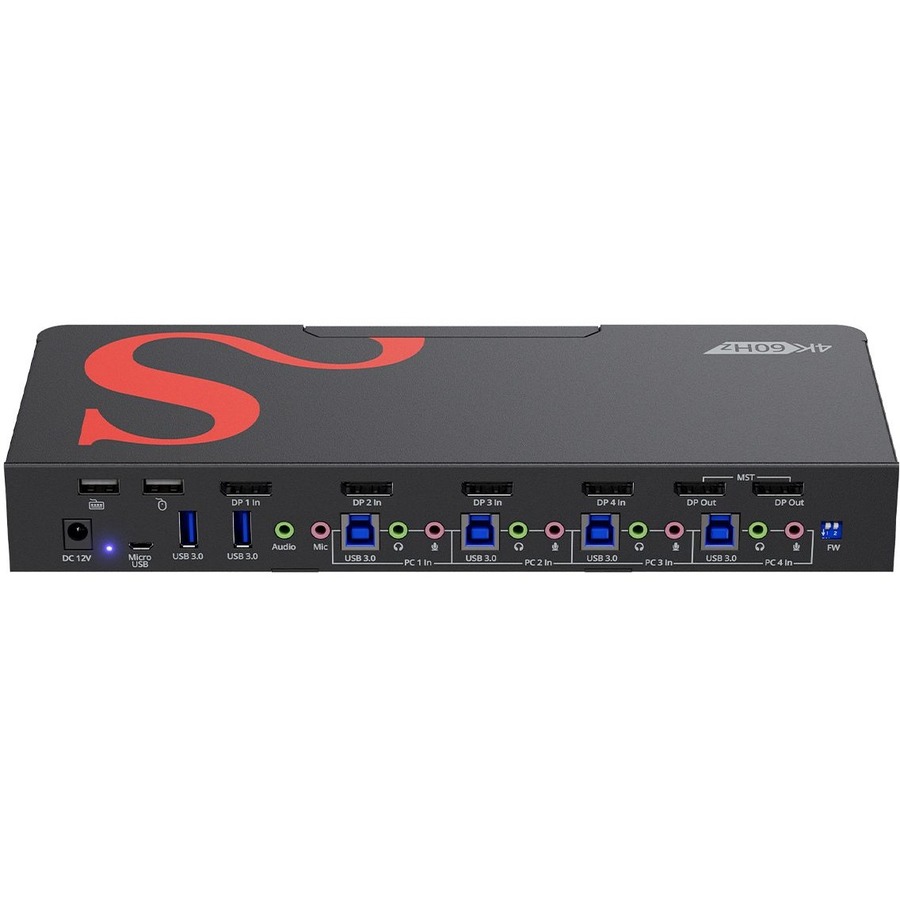

Comes with four DisplayPort 1.4 video input ports, four USB-B 3.2 Gen 1 ports (Host), two DisplayPort 1.4 MST output ports, four USB-A 3.2 Gen 1 ports, two USB-A 1.1 HID ports for connecting keyboard and mouse, five 3.5mm phone jack for stereo audio, five 3.5mm phone jack for microphone, one DIP Switch for Firmware control, one Micro USB for Firmware update, four PC1/PC2/PC3/PC4 switch buttons, and one DC power jack (12V/2A)

USB-A Data Transfer

Easily connect four USB-A 3.2 Gen 1 ports on the front or back with data transfer rate up to 5Gbps for Flash drive, Printer, Enclosure, and other USB peripheral devices, and two USB-A 1.1 HID ports with data transfer rate up to 12Mbps for independent HID keyboard and mouse

3.5mm Audio/Mic

Supports ten 3.5mm phone jacks for stereo audio and Microphone

Maximum Compatibility

Compatible with Windows® 11 (64-bit) / 10 (32-/64-bit) / 8.x (32-/64-bit) / 8 (32-/64-bit) / 7 (32-/64-bit)
Supports Plug-n-play and no driver installation required. Auto-EDID detection to ensure visual workspaces and resolutions are easy to connect to a new system every time and auto-scan feature for quick browsing and system monitoring

ESD Protection

An ESD protection device protects a circuit used to an Electrostatic discharge (ESD), in order to prevent a malfunction or breakdown of an electronic device

Metal Housing Design

Drop resistant and Anti-collision design enhances heat dissipation, providing better performance, stability, and safety

TAA Compliant

Completely manufactured in a TAA designated country
