Tripp Lite by Eaton PDU 3.8kW Single-Phase Dual-Circuit 120V Basic PDU 40 NEMA 5-15/20R Outlets NEMA L5-20P/5-20P Inputs 10 ft. (3.05 m) Cords 0U
40 x NEMA 5-15/20R - 4.8kW - Zero U Vertical Rackmount
Product ID
Mfg. Part: PDU40TDUAL
UNSPSC: 39121017
MNJPartNumber: MNJ151333
Availability
800-870-4340
Contact your MNJ Sales Representative for the latest availability
Product Pricing
$540.84
Options & Accessories
Tripp Lite by Eaton Extended Warranty and Technical Support for Select Products - DC Power KVM PDU Inverters Power Management
Maintenance - Labor - Physical Service
Mfg. Part: WEXT1C
$41.16
Tripp Lite by Eaton Extended Warranty and Technical Support for Select Products - Cables and Connectivity DC Power Supplies KVM Switches PDUs Power Inverters
Maintenance - Labor - Physical Service
Mfg. Part: WEXT3C
$123.48
Tripp Lite by Eaton Power Cord C19 to C14 - Heavy-Duty 15A 250V 14 AWG 2 ft. (0.61 m) Black
(IEC-320-C19 to IEC-320-C14) 2-ft.
Mfg. Part: P047-002
$46.74
Tripp Lite by Eaton Power Cord C19 to C14 - Heavy-Duty 15A 250V 14 AWG 6 ft. (1.83 m) Black
(IEC-320-C19 to IEC-320-C14) 6-ft.
Mfg. Part: P047-006
$57.04
Eaton Tripp Lite Series Power Extension Cord/Splitter, 2 x C19 to C20 Y Splitter - Heavy-Duty, 20A, 250V, 12 AWG, 6 ft. (1.83 m), Black
20A, 12AWG (2x IEC-320-C19 to IEC-320-C20) 6-ft."
Mfg. Part: P036-006-2C19
$127.6
Main Features

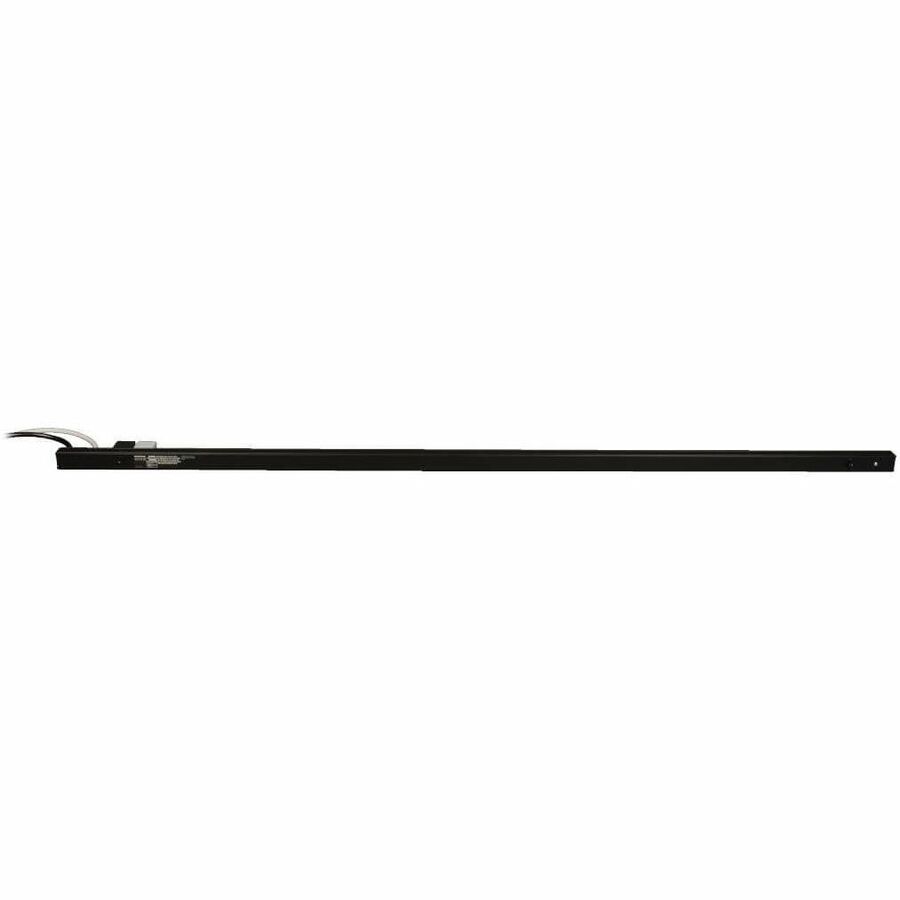

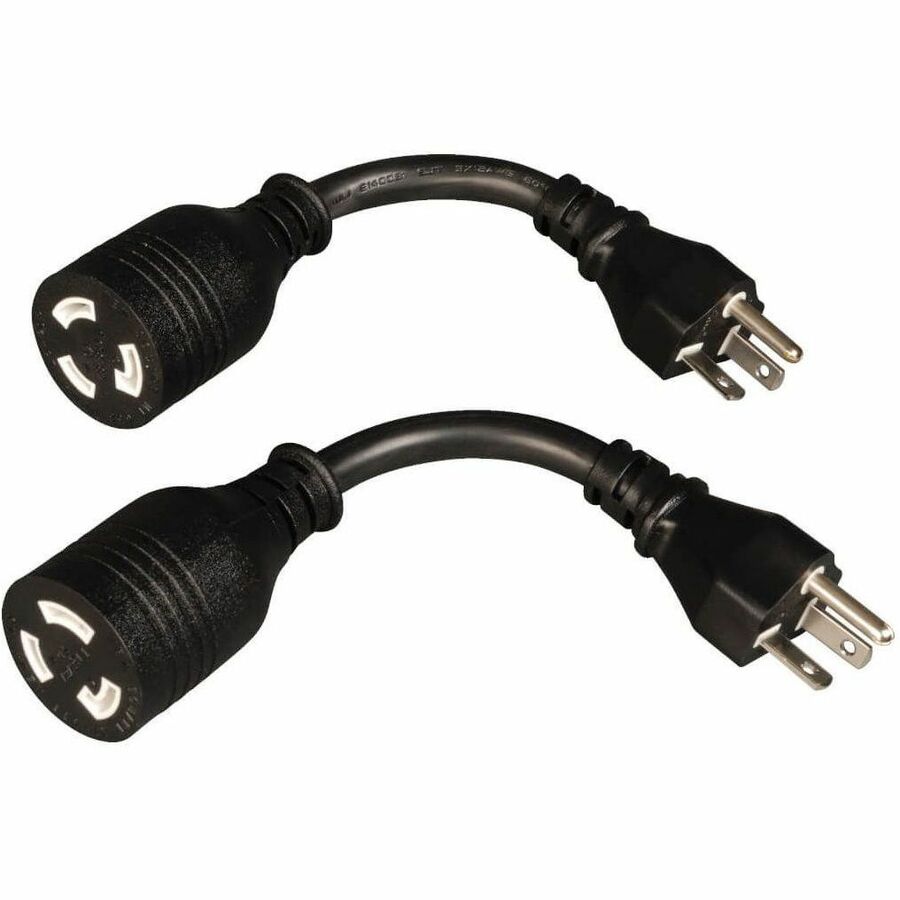

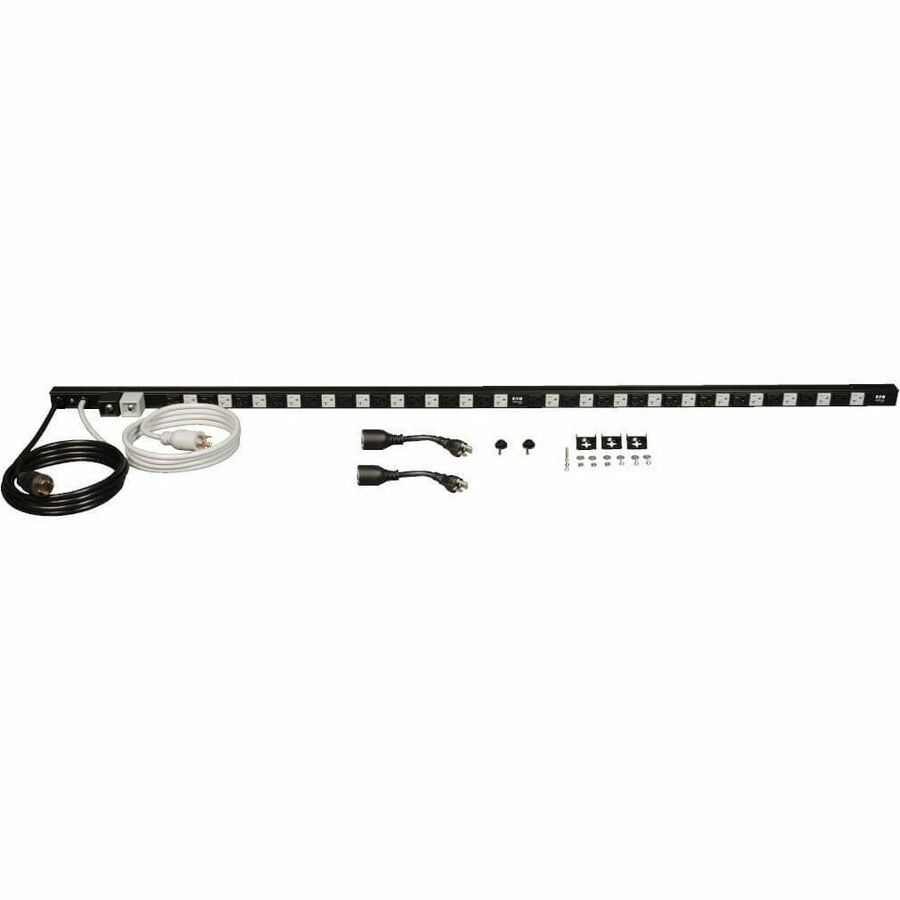

The PDU40TDUAL 3.8kW Single-Phase Dual-Circuit 120V Basic PDU works as two independent PDUs in a single housing, perfect for networking, telecom, security, audio/video and sound reinforcement applications. Ideal for high-density network equipment with dual redundant input cables, it features 40 NEMA 5-15/20R outlets split evenly into two separate power circuits. Each power circuit, including its input plug, power cord, breaker and outlets, is color-coded black or gray for easy identification. Both 10-foot power cords feature NEMA L5-20P input plugs and come with optional adapters to convert them to NEMA 5-20P plugs, which are not color-coded. Connect the plugs to separate mains input power sources, generators or protected UPS systems to distribute AC power to connected equipment.The switchless design prevents an accidental shutdown, which could lead to costly downtime. Dual 20A circuit breakers protect connected equipment from dangerous overloads. The 70-inch all-metal housing supports toolless 0U vertical mounting in EIA-standard 19-inch racks, as well as on a wall or workbench or under a counter with user-supplied hardware.
