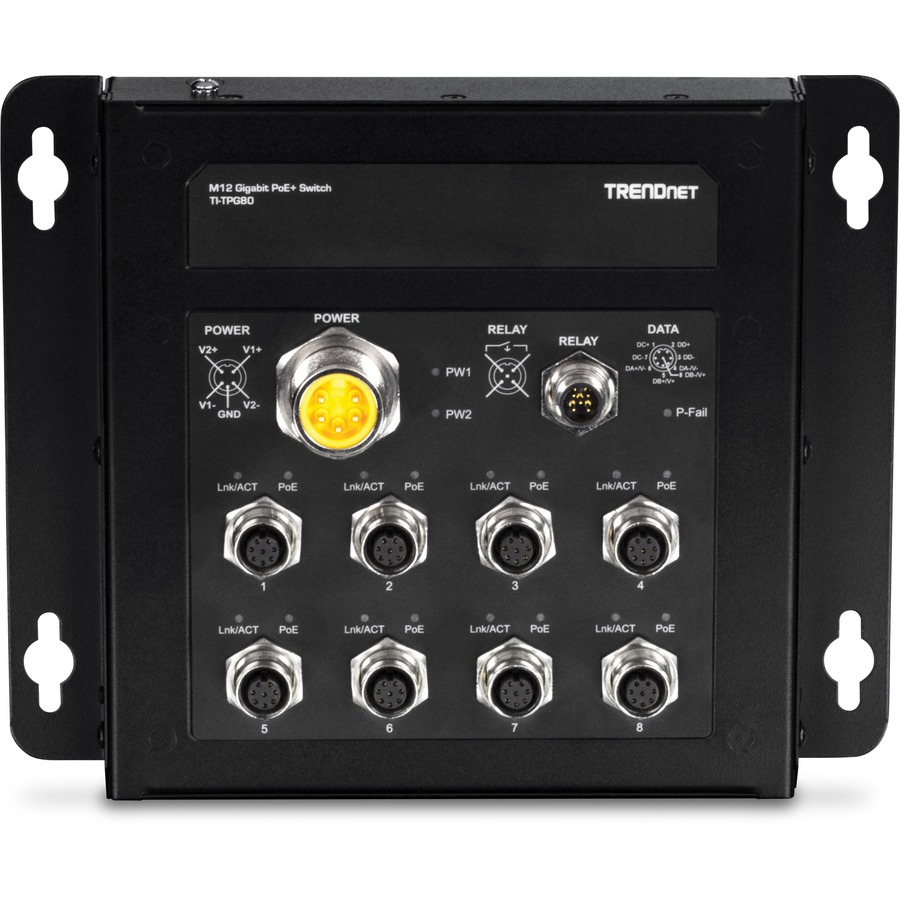

TRENDnet 8-Port Industrial EN50155 M12 Gigabit Poe+ Railway Switch; PoE Power Budget 200W@48Vdc; 100W@24Vdc; M23 Power Interface; Lifetime Protection; TI-TPG80
Product ID
Availability
Product Pricing
$709.61
Options & Accessories
TRENDnet 240W Single Output Industrial DIN-Rail Power Supply, Extreme Operating Temp Range -25 to 70 °C(-13 to 158 °F) Built-in Active PFC, Passive Cooling, DIN-Rail Mount, Silver, TI-S24048
$179.29

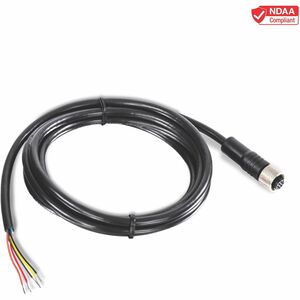

TRENDnet M12 Industrial Alarm Relay, 2M (6.5 ft.), IP68, Compatible with TRENDnet's TI-TPG80 Industrial Switch, TI-TCR02
$34.95
Main Features
- NDAA / TAA compliant (U.S. and Canada only)
- 8 x M12 Gigabit PoE+ ports
- PoE power budget: 200W@48V DC, 100W@24V DC
- EN50155 compliant for rolling stock and railway applications
- Hardened IP40 rated metal housing, 16Gbps switching capacity

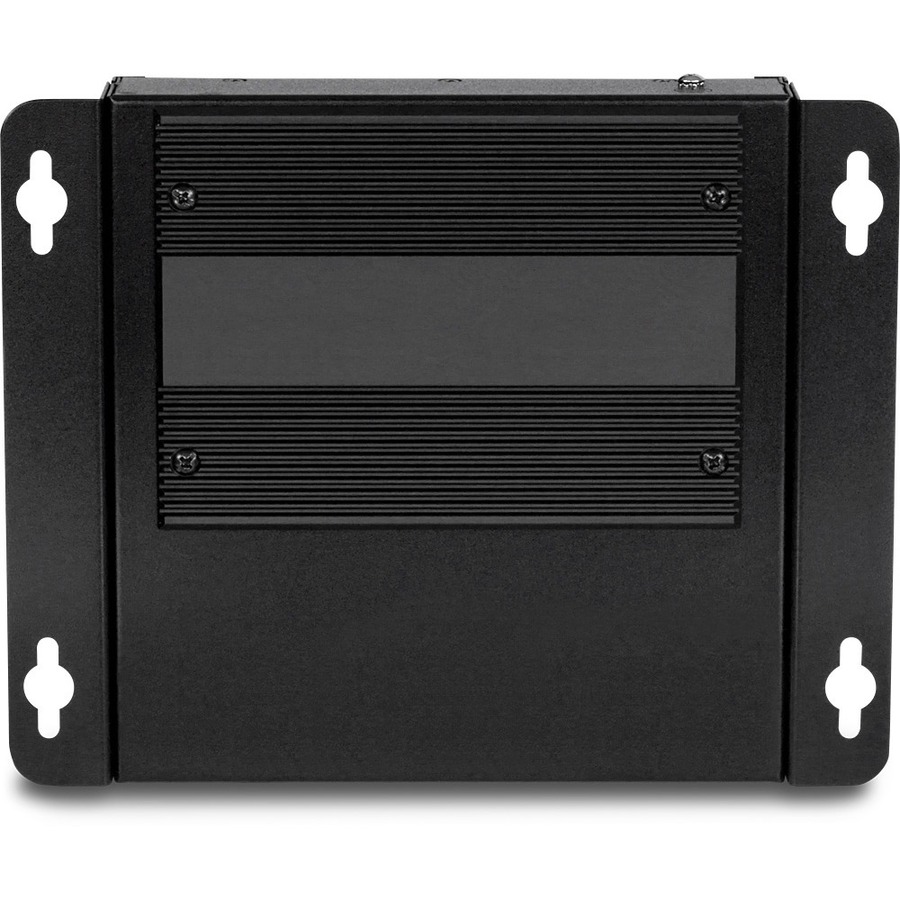

- Includes wall mount brackets
- Operating temperature range of -40° – 75° C (-40° – 167° F)
- Dual redundant power inputs with overload current protection, Alarm relay triggered by power failure
- Power supply sold separately (models: TI-S24048)
- M12 and M23 cables sold separately (models: TI-TCD02 / TI-TCD06 / TI-TCP02 / TI-TCR02)
- Lifetime TRENDnet Manufacturer's Warranty

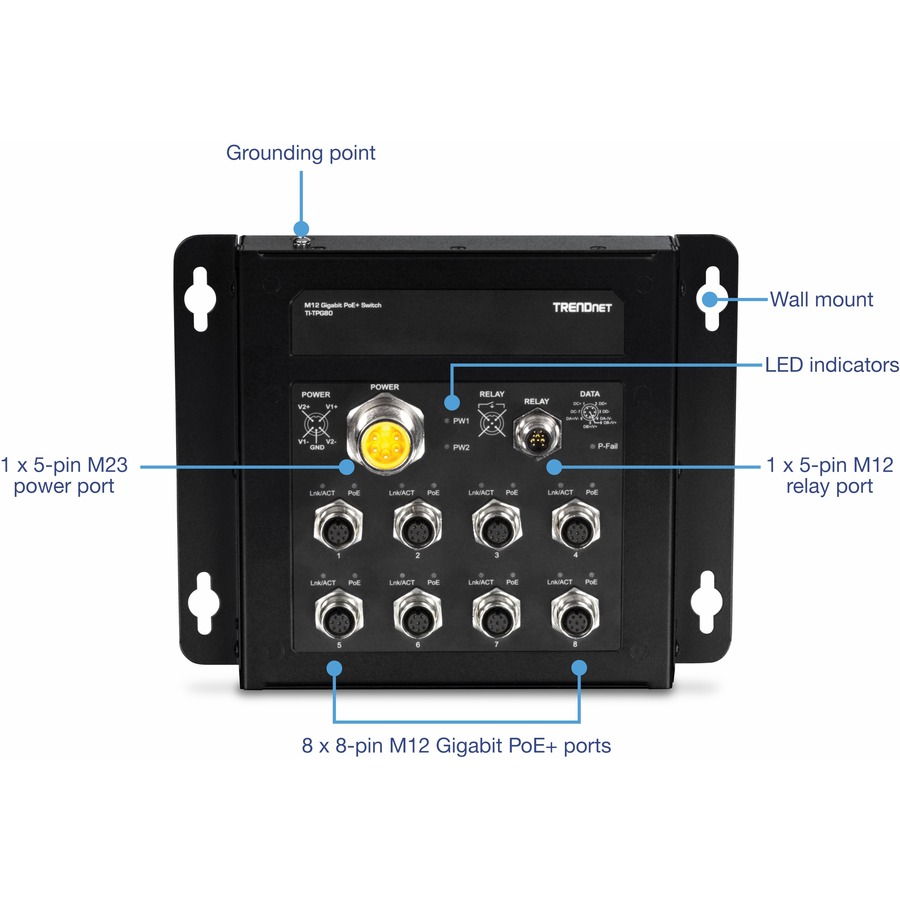

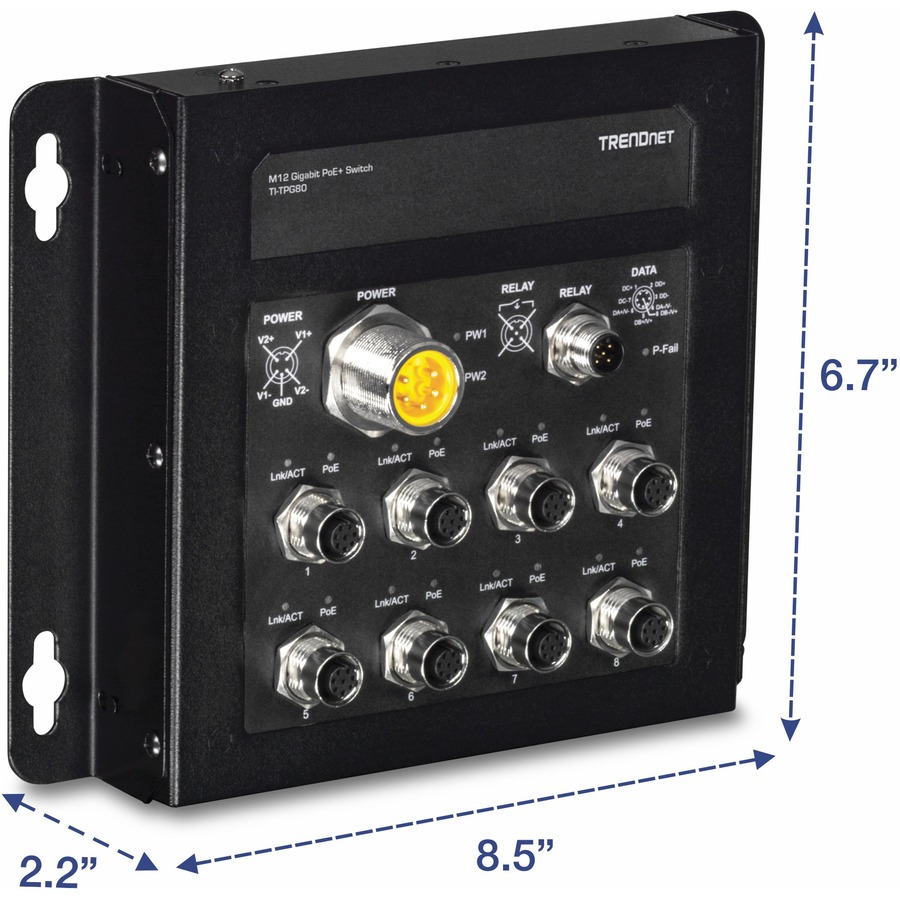

TRENDnet’s 8-Port Industrial EN50155 M12 Gigabit PoE+ Railway Switch, model TI-TPG80, has eight M12 gigabit PoE+ ports with a total PoE budget of up to 200W. This M12 railway switch is equipped with an IP40 rated metal enclosure, designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial EN50155 applications. This industrial M12 switch supports an input voltage range from 24 – 56V DC with M23 power interface and M12 alarm relay interfaces for moving bus, train, and other rolling stock applications. Designed and tested for transportation and telco applications. EN50155 Compliant This M12 switch supports an input voltage range from 24 – 56V DC with M23 power and M12 alarm relay interfaces for moving bus, train, and other rolling stock applications. Industrial Design Equipped with an IP40 rated metal enclosure, the M12 switch is designed to withstand a high degree of vibration and shock, while operating within a wide temperature range of -40° – 75° C (-40° – 167° F) for industrial environments. Power over Ethernet (PoE+) Eight M12 gigabit PoE+ ports deliver up to 30W of PoE+ power per port with a total power budget of 200W@48V DC, or 100W@24V DC. PACKAGE CONTENTS TI-TPG80 Quick Installation Guide Wall mount kit
Recent Technical Specifications
Similar Products
Tycon Power POE 5 Port Switch
$282.86
TRENDnet 5-Port Industrial Gigabit Poe+ Wall-Mounted Front Access Switch; 5X Gigabit Poe+ Ports; DIN-Rail Mount; 48 57V DC Power Input; IP30; 120W Poe Budget;Lifetime Protection; TI-PG50F
$182.37
TRENDnet 8-Port Industrial Gigabit Poe+ Wall-Mounted Front Access Switch; 8X Gigabit Poe+ Ports; DIN-Rail Mount; 48 57V DC Power Input; IP30; 200W Poe Budget;Lifetime Protection; TI-PG80F
$246.78
TRENDnet 16-Port Hardened Industrial Unmanaged Gigabit 10/100/1000Mbps DIN-Rail Switch w/ 16 Gigabit PoE+ Ports; Lifetime Protection; TI-PG160
$383.14

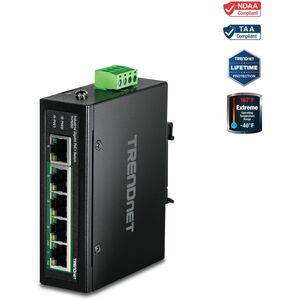

TRENDnet 5-Port Hardened Industrial Unmanaged Gigabit Switch; TI-PG50; 10/100/1000Mbps; DIN-Rail Switch; 4 x Gigabit PoE+ Ports; 1 x Gigabit Port; Gigabit Ethernet Network Switch; Lifetime Protection
