Eaton Tripp Lite Series 28.8kW 220-240V 3PH Switched PDU - LX Interface, Gigabit, 30 Outlets, Hardwire 380-415V Input, LCD, 1.8 m Cord, 0U 1.8 m Height, TAA
Switched - Hardwired - 6 x IEC 60320 C19, 24 x IEC 60320 C13 - 380 V AC, 400 V AC, 415 V AC - 0U - Vertical - Rack Mount - Rack-mountable - TAA Compliant
Product ID
Mfg. Part: PDU3XEVSRHWB
UNSPSC: 39121017
MNJPartNumber: MNJ13397553
Availability
800-870-4340
Contact your MNJ Sales Representative for the latest availability
Product Pricing
$2,742.04
Options & Accessories
Tripp Lite by Eaton Heavy-Duty PDU Power Cord C13 to C14 - 15A 250V 14 AWG 1.5 ft. (0.45 m) Black
15A, 14AWG (IEC-320-C14 to IEC-320-C13) 18-in."
Mfg. Part: P005-18N
$19.88
Tripp Lite by Eaton 4ft Computer Power Cord Extension Cable C14 to C13 Red 10A 18AWG 4'
10A, 18AWG (IEC-320-C14 to IEC-320-C13 with Red Plugs) 4-ft."
Mfg. Part: P004-004-RD
$11.93

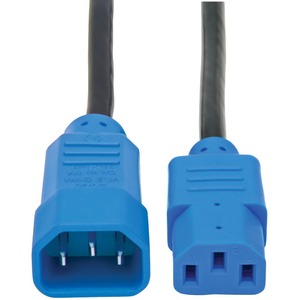

Tripp Lite by Eaton PDU Power Cord C13 to C14 - 10A 250V 18 AWG 4 ft. (1.22 m) Blue
10A, 18AWG (IEC-320-C14 to IEC-320-C13 with Blue Plugs) 4-ft.
Mfg. Part: P004-004-BL
$11.93
$173.75
$173.75
Main Features

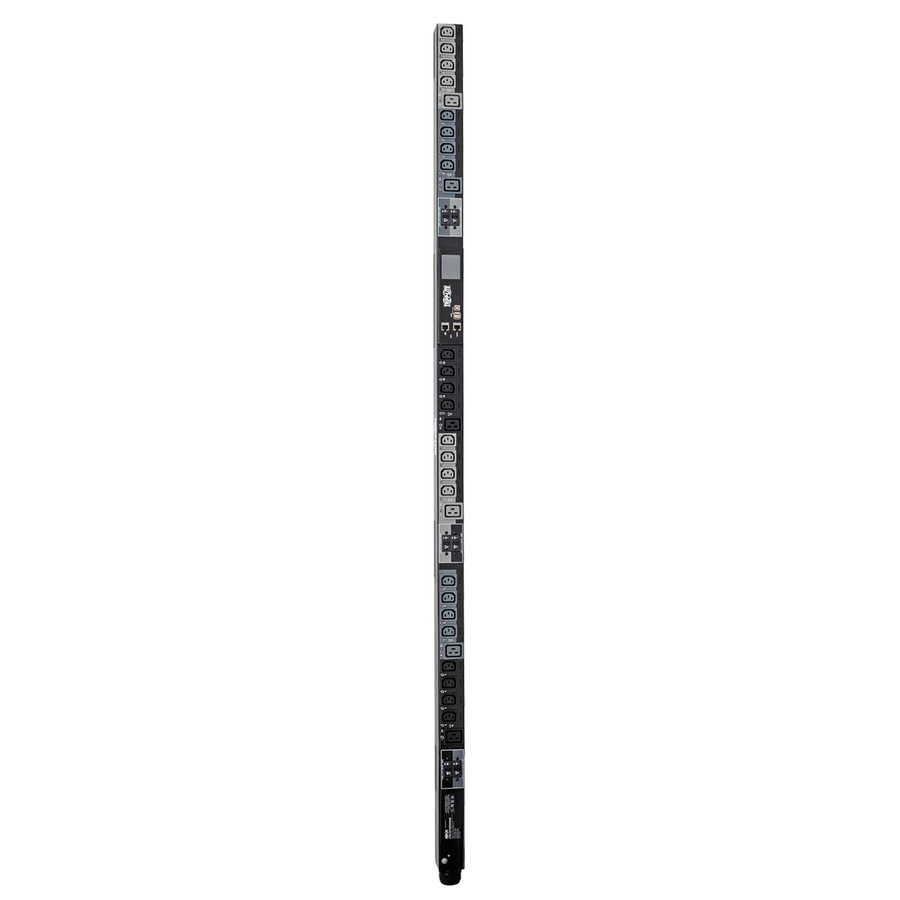

The PDU3XEVSRHWB 28.8kW 3-Phase Switched Power Distribution Unit provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

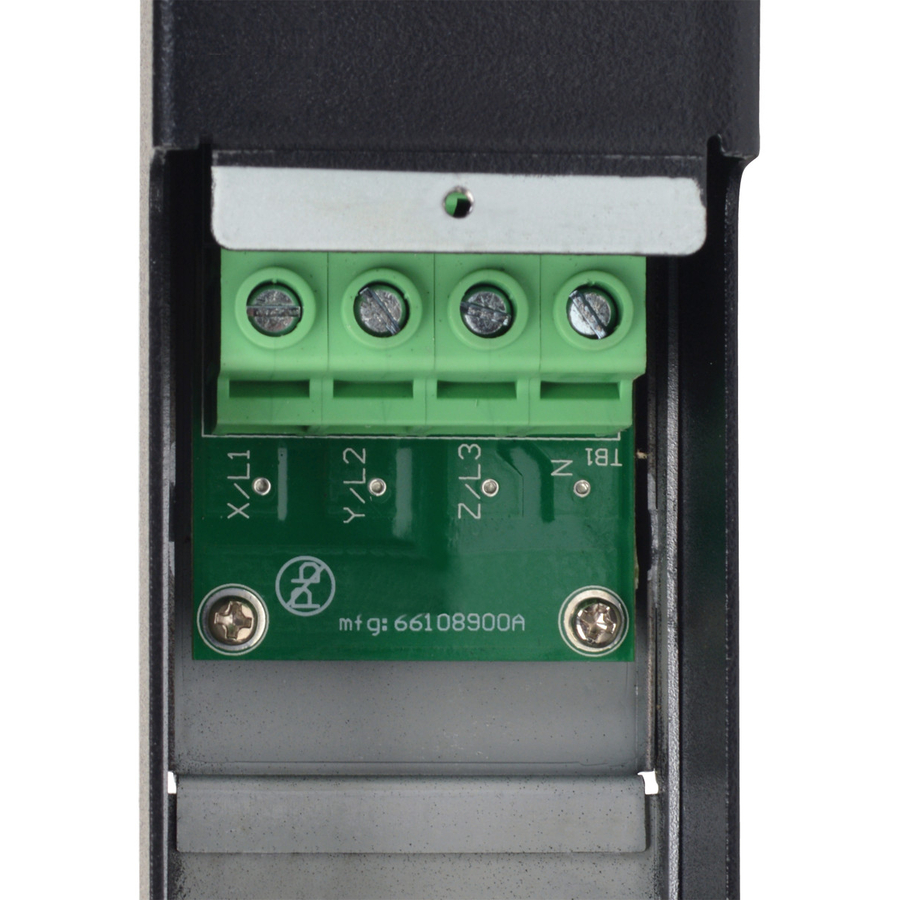

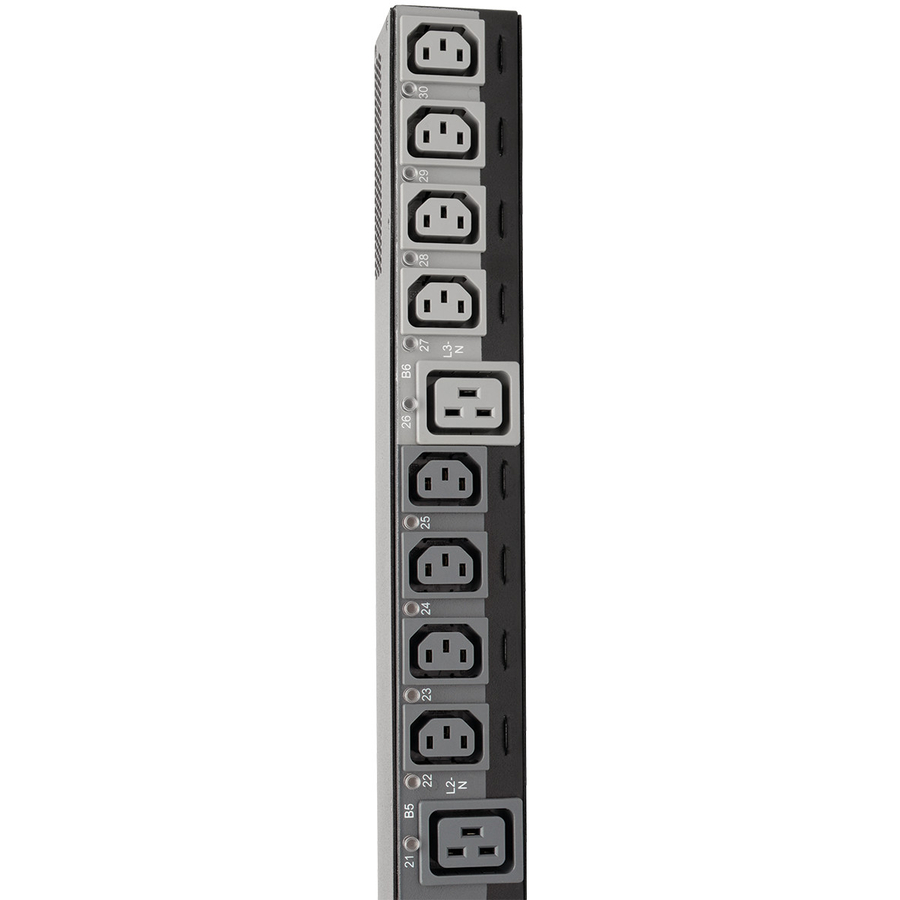

The 0U PDU features 30 switched 220/230/240V outlets (24 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. Hardwire 380/400/415V input connects the PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

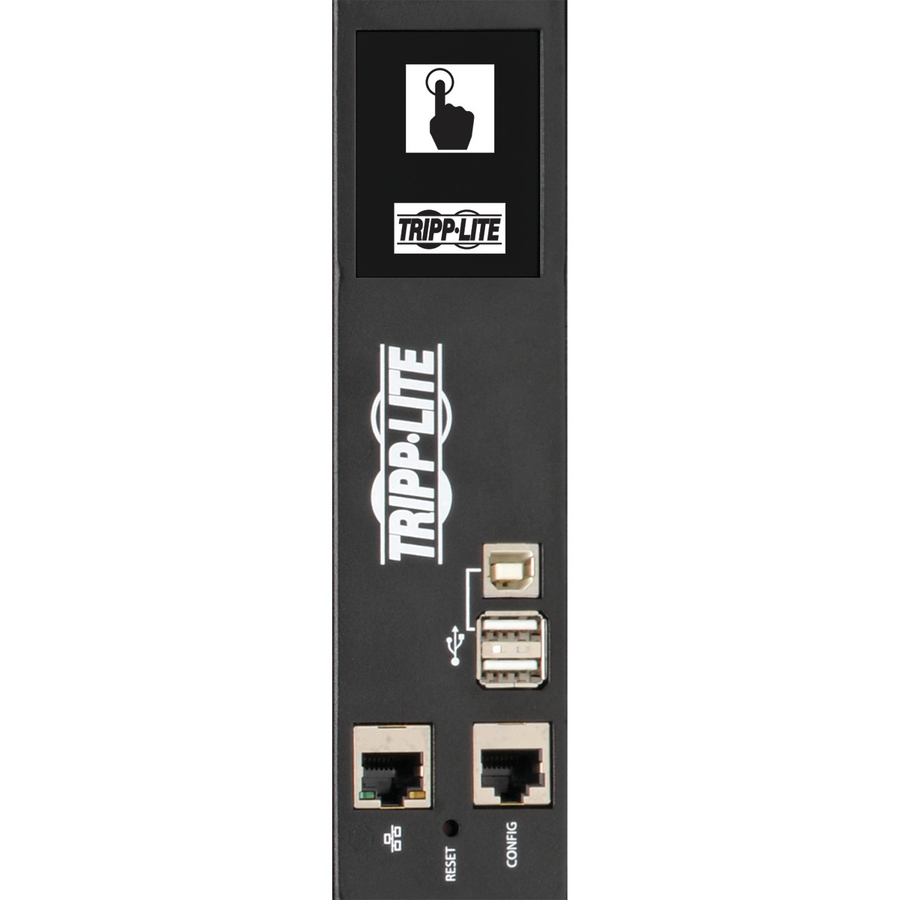

A color touchscreen LCD lets you toggle between menus to monitor input current level per phase, output current per load bank and per outlet with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device.
The 0U PDU features 30 switched 220/230/240V outlets (24 C13 and 6 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. Hardwire 380/400/415V input connects the PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A color touchscreen LCD lets you toggle between menus to monitor input current level per phase, output current per load bank and per outlet with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the switchable PDU through a mobile device.
