Tripp Lite by Eaton PDU 3.7kW Single-Phase 208/230V Monitored PDU - LX Platform 18 C13 2 C19 Outlets C20 / L6-20P Inputs 0U 900mm Height TAA
Monitored - NEMA L6-20P, IEC 60320 C20 - 2 x IEC 60320 C19, 18 x IEC 60320 C13 - 230 V AC - 0U - Vertical - Rack Mount - Rack-mountable - TAA Compliant
Product ID
Mfg. Part: PDUMNV20HV2LX
UNSPSC: 39121017
MNJPartNumber: MNJ13092207
Availability
800-870-4340
Contact your MNJ Sales Representative for the latest availability
Product Pricing
$751.66
Options & Accessories
Tripp Lite by Eaton EnviroSense2 (E2) Environmental Sensor Module with Temperature and Digital Outputs
TAA Compliant
Mfg. Part: E2MTDO
$227.36
Eaton Tripp Lite Series Extended Warranty and Technical Support for Select Products - Isolation Transformers, KVM Switches, PDUs, Power Inverters
Maintenance - Labor - Physical Service
Mfg. Part: WEXT2D
$123.48
Tripp Lite by Eaton 4ft Computer Power Cord Extension Cable C14 to C13 Red 10A 18AWG 4'
10A, 18AWG (IEC-320-C14 to IEC-320-C13 with Red Plugs) 4-ft."
Mfg. Part: P004-004-RD
$11.93
Tripp Lite by Eaton Heavy-Duty PDU Power Cord C13 to C14 - 15A 250V 14 AWG 6 ft. (1.83 m) Yellow Plugs
15A, 14AWG (IEC-320-C14 to IEC-320-C13 with Yellow Plugs) 6-ft."
Mfg. Part: P005-006-YW
$27.31
Tripp Lite by Eaton Heavy-Duty PDU Power Cord C13 to C14 - 15A 250V 14 AWG 1.5 ft. (0.45 m) Black
15A, 14AWG (IEC-320-C14 to IEC-320-C13) 18-in."
Mfg. Part: P005-18N
$19.88
Main Features
The PDUMNV20HV2LX 3.3/3.7kW Single-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. By reducing the frequency of on-site visits, these advanced remote capabilities can save you money and reduce downtime.

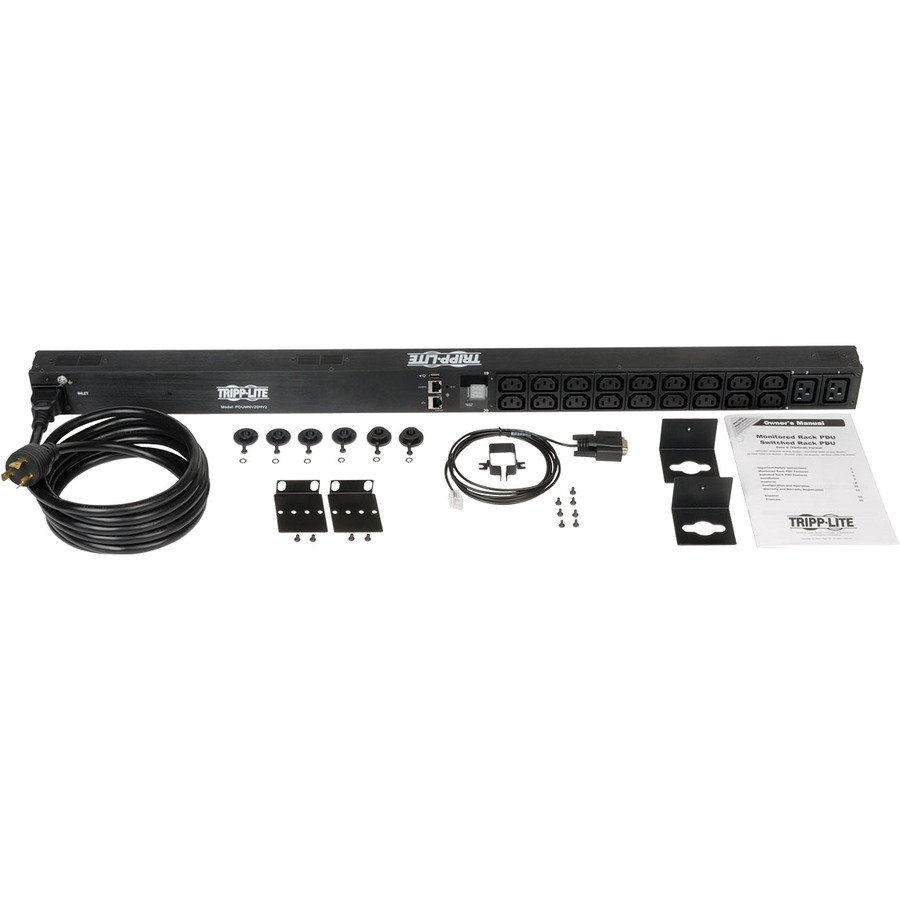

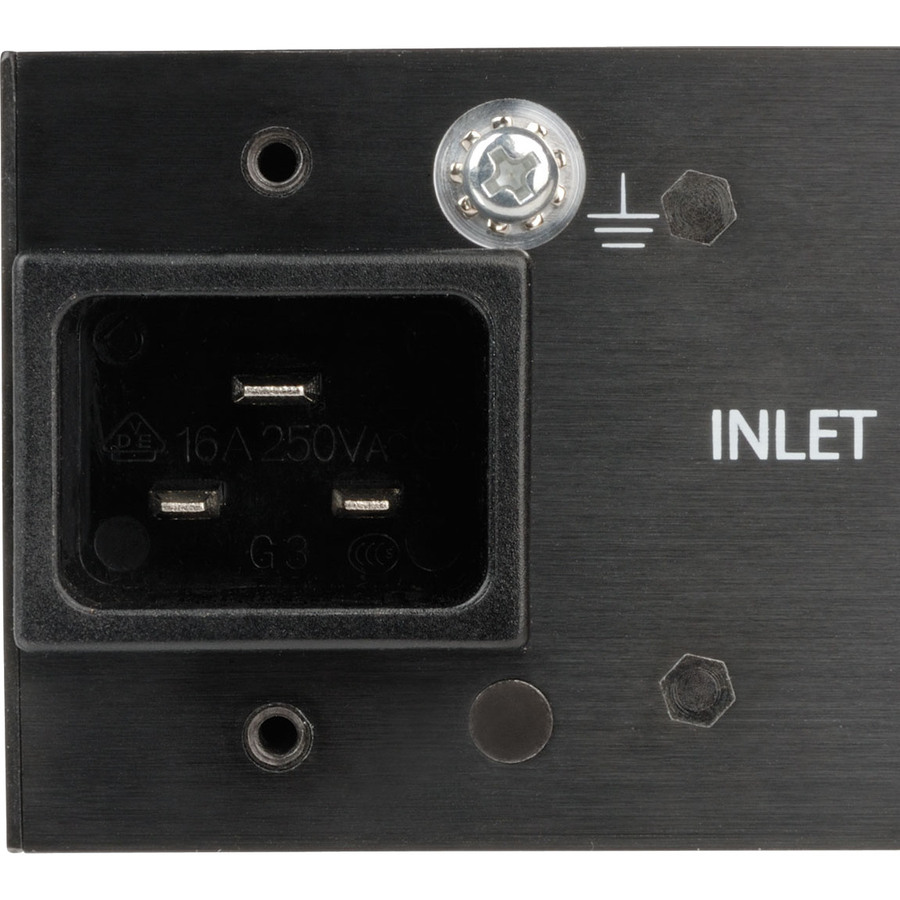

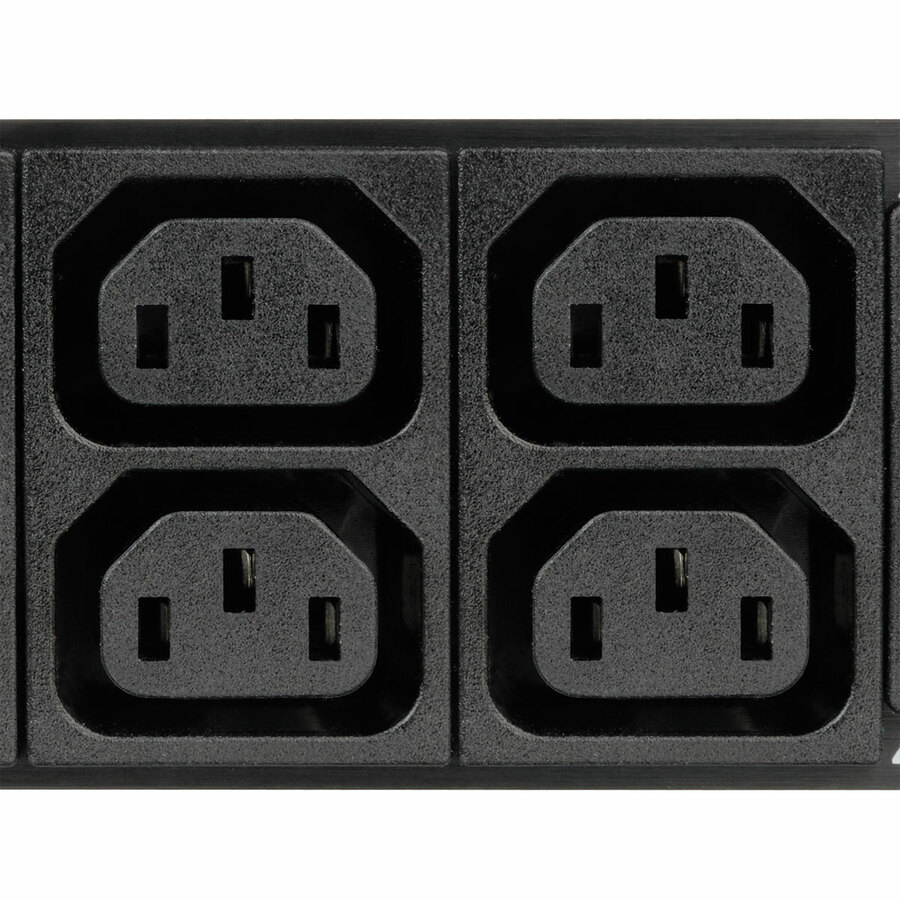

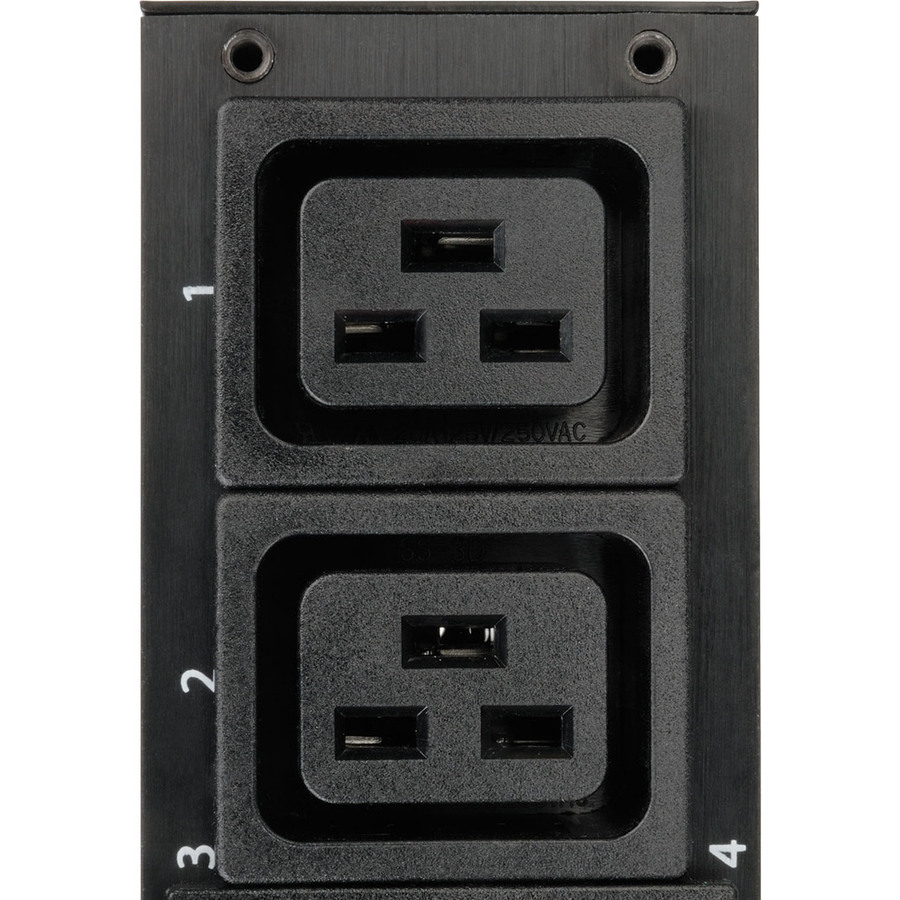

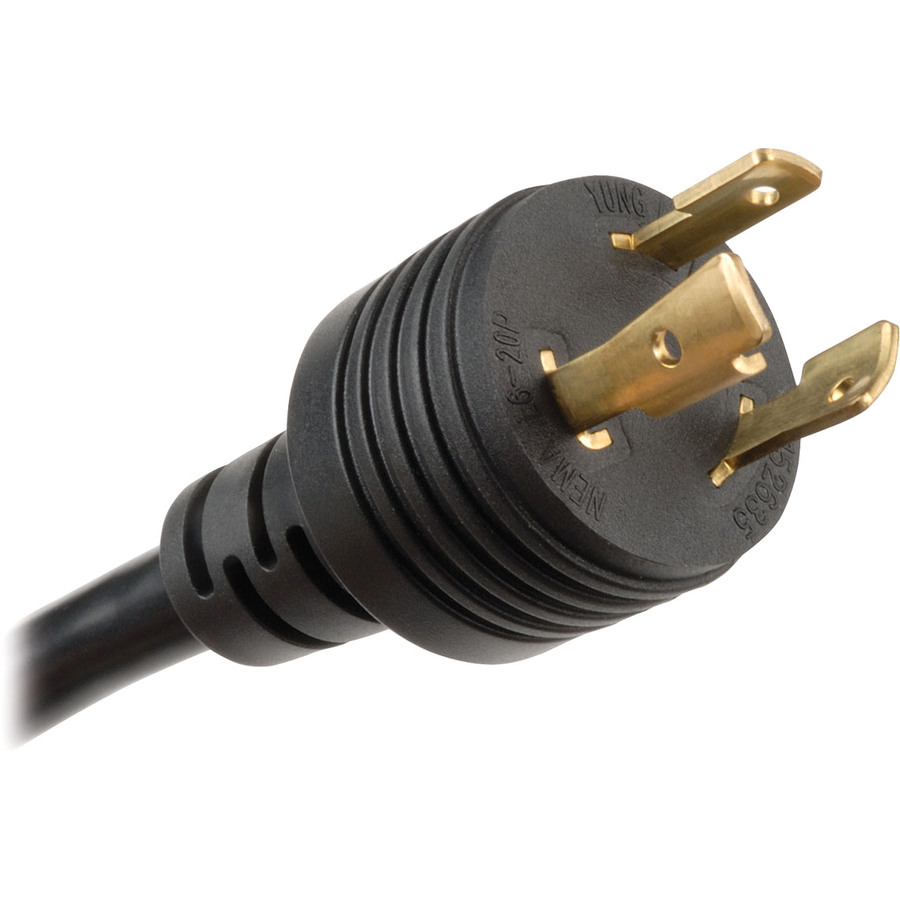

Recommended for your IT or industrial application, the 0U PDU features 20 outlets (18 C13 and 2 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. The C20 inlet is compatible with a wide variety of user-supplied power cords for connecting to an AC source, generator or protected UPS. A detachable 10-foot cord with NEMA L6-20P plug is included.

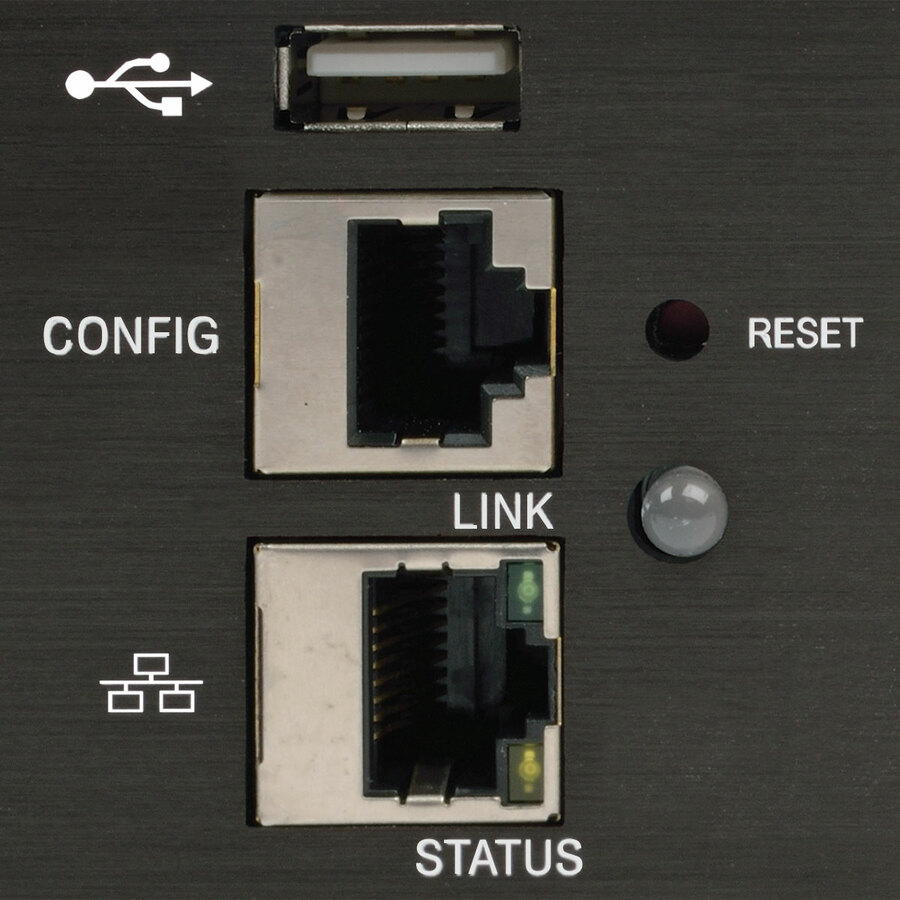

The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

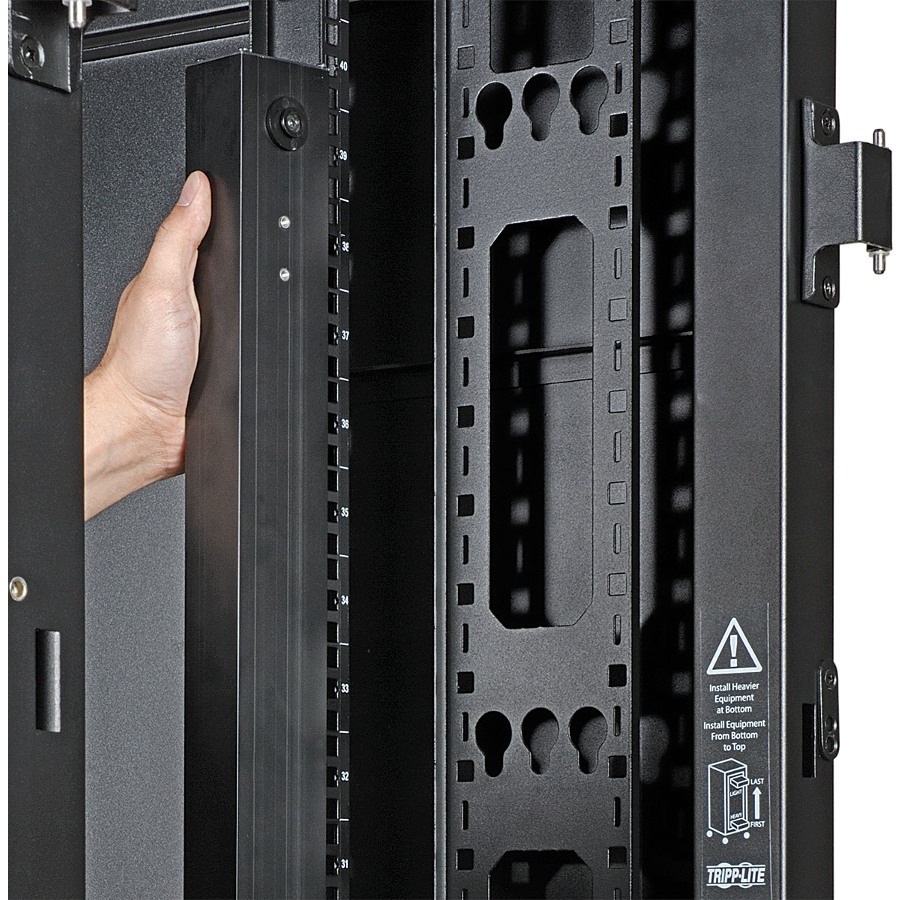

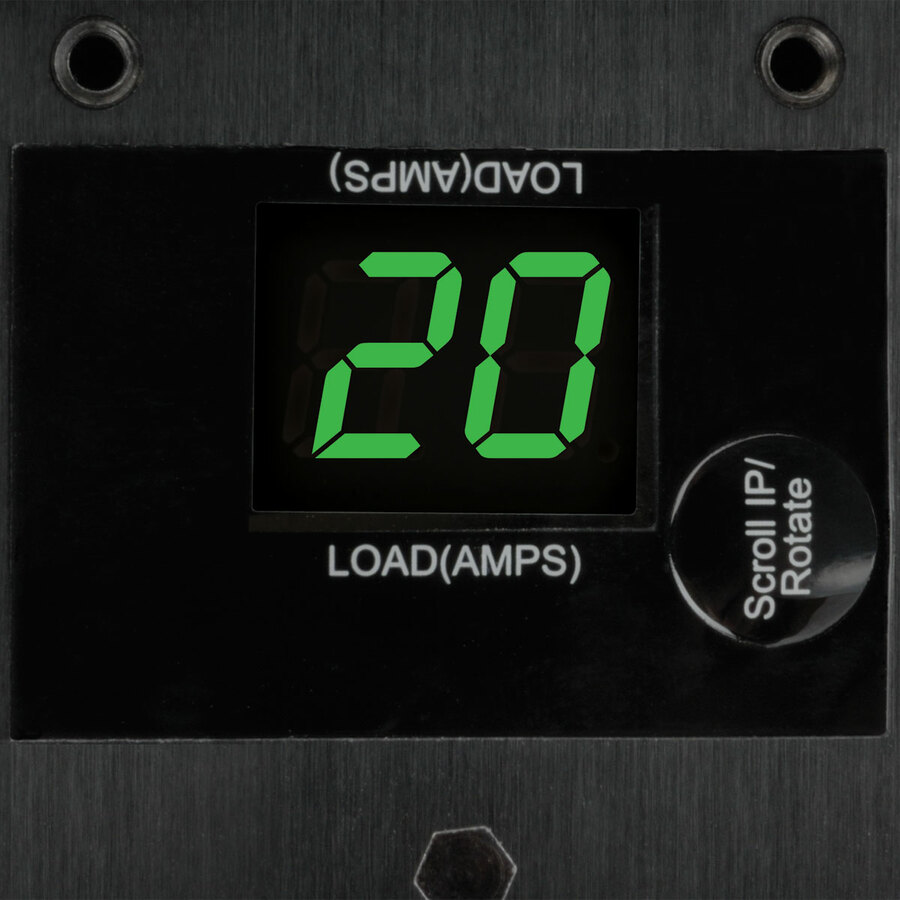

A digital ammeter allows you to monitor the total connected load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets.
Recommended for your IT or industrial application, the 0U PDU features 20 outlets (18 C13 and 2 C19) with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. The C20 inlet is compatible with a wide variety of user-supplied power cords for connecting to an AC source, generator or protected UPS. A detachable 10-foot cord with NEMA L6-20P plug is included.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A digital ammeter allows you to monitor the total connected load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets.
