Tripp Lite by Eaton PDU 10kW 200-240V 3PH Monitored PDU - LX Interface Gigabit 48 Outlets L21-30P Input LCD 1.8 m Cord 0U 1.8 m Height TAA
Monitored - NEMA L21-30P - 6 x IEC 60320 C19, 42 x IEC 60320 C13 - 230 V AC - Network (RJ-45) - 0U - Vertical - Rack Mount - Rack-mountable - TAA Compliant
Product ID
Mfg. Part: PDU3EVN6L2130B
UNSPSC: 39121017
MNJPartNumber: MNJ13092203
Availability
800-870-4340
Contact your MNJ Sales Representative for the latest availability
Product Pricing
$1,796.34
Options & Accessories
Tripp Lite by Eaton EnviroSense2 (E2) Environmental Sensor Module with Temperature and Digital Outputs
TAA Compliant
Mfg. Part: E2MTDO
$227.36
Tripp Lite by Eaton Power Cord C19 to C14 - Heavy-Duty 15A 250V 14 AWG 6 ft. (1.83 m) Black
(IEC-320-C19 to IEC-320-C14) 6-ft.
Mfg. Part: P047-006
$57.04
Tripp Lite by Eaton Heavy-Duty PDU Power Cord C13 to C14 - 15A 250V 14 AWG 2 ft. (0.61 m) Black
15A, 14AWG (IEC-320-C14 to IEC-320-C13) 2-ft."
Mfg. Part: P005-002
$20.57
Tripp Lite by Eaton Heavy-Duty PDU Power Cord C13 to C14 - 15A 250V 14 AWG 6 ft. (1.83 m) Black
15A, 14AWG (IEC-320-C14 to IEC-320-C13) 6-ft."
Mfg. Part: P005-006
$25.86
Tripp Lite by Eaton Power Cord C19 to C14 - Heavy-Duty 15A 250V 14 AWG 2 ft. (0.61 m) Black
(IEC-320-C19 to IEC-320-C14) 2-ft.
Mfg. Part: P047-002
$46.74
Main Features

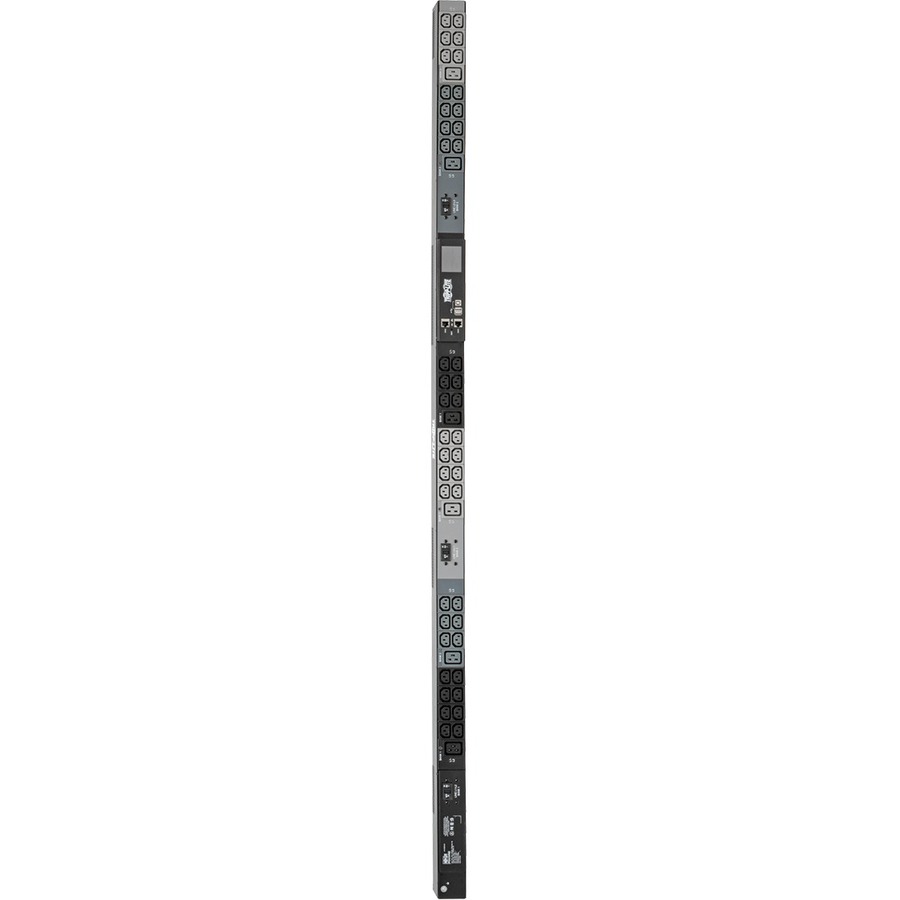

The PDU3EVN6L2130B 10kW 3-Phase Monitored PDU provides real-time remote monitoring of voltage, frequency and load levels via built-in network connection. Recommended for IT and industrial applications, it features 48 outlets-42 C13, 6 C19-with included plug-lock insert sleeves to prevent cables from becoming accidentally disconnected. A six-foot cord with NEMA L21-30P input plug connects the 3-phase PDU to a compatible AC power source, generator or protected UPS.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

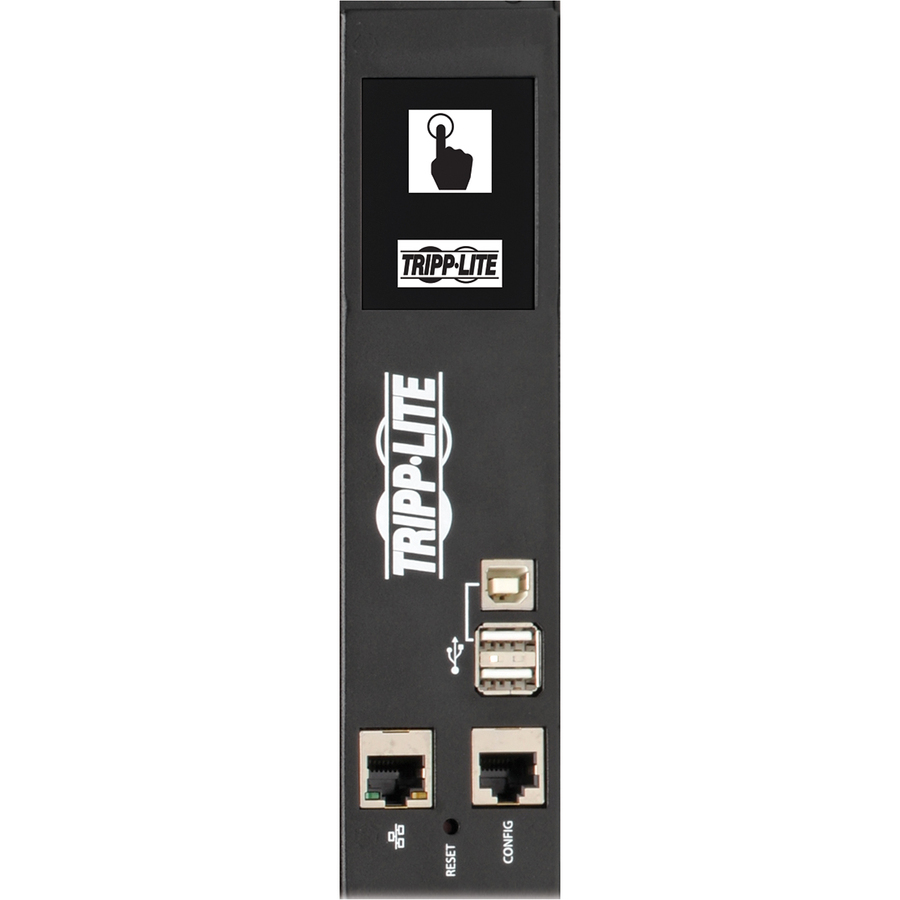

A color touchscreen LCD lets you toggle between menus to monitor input current level per phase and output current per load bank with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device.
The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include IPv4, IPv6, HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.
A color touchscreen LCD lets you toggle between menus to monitor input current level per phase and output current per load bank with ±1% billing-grade accuracy, environmental sensor data and network information. It also generates a unique QR code to allow access to the PDU through a mobile device.

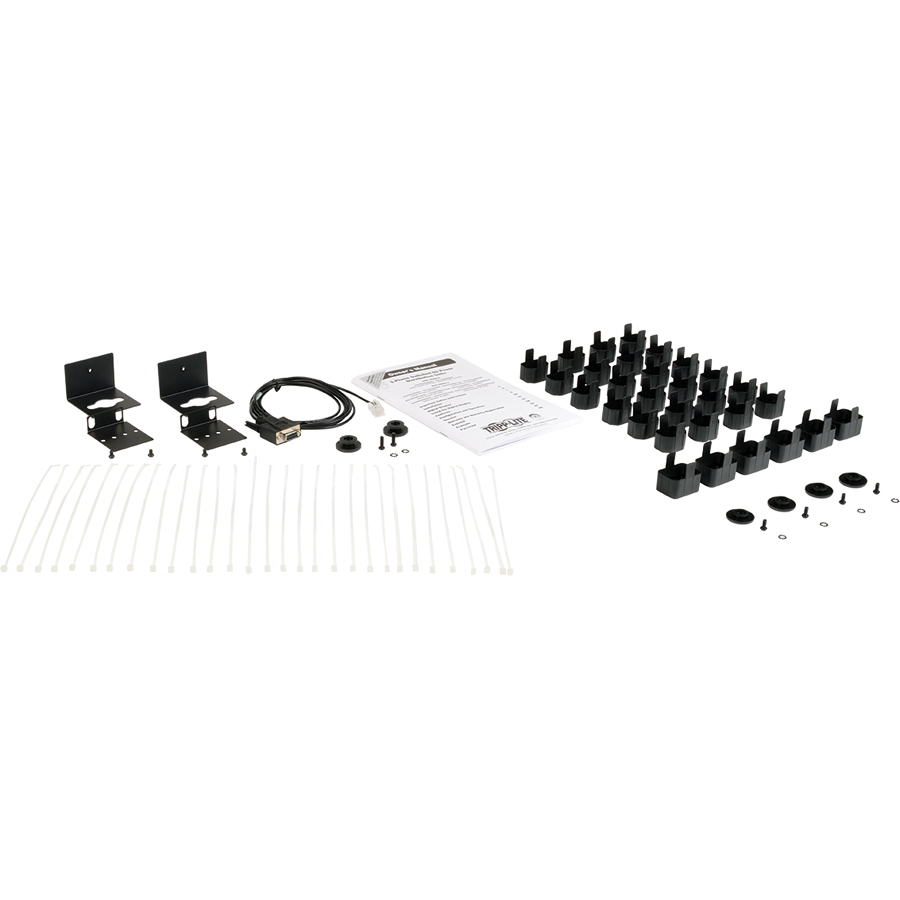

The 0U PDU mounts vertically in racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
