Eaton 5.5kW Single-Phase Switched PDU - LX Interface, 208/230V Outlets (20 C13 & 4 C19), L6-30P, 0U, TAA

Switched - NEMA L6-30P - 4 x IEC 60320 C19, 20 x IEC 60320 C13 - 230 V AC - 5800 VA - 0U - Vertical - Rack Mount - TAA Compliant

Product ID

Mfg. Part: PDUMV30HVNETLX
UNSPSC: 39121017
MNJPartNumber: MNJ12929430

Availability

800-870-4340   Contact your MNJ Sales Representative for the latest availability

Product Pricing

$955.49

Qty:

    Options & Accessories

    Eaton Tripp Lite Series C20 to C13 Power Cord for Computer - Heavy-Duty, 15A, 100-250V, 14 AWG, 7 ft. (2.13 m), Black

    Eaton Tripp Lite Series C20 to C13 Power Cord for Computer - Heavy-Duty, 15A, 100-250V, 14 AWG, 7 ft. (2.13 m), Black
    15A, 12AWG (IEC-320- C13 to IEC-320-C20) 7-ft."
    Mfg. Part: P032-007

    $16.81

    Eaton Tripp Lite Series Heavy-Duty PDU Power Cord, C13 to C14 - 15A, 250V, 14 AWG, 10 ft. (3.05 m), Black

    Eaton Tripp Lite Series Heavy-Duty PDU Power Cord, C13 to C14 - 15A, 250V, 14 AWG, 10 ft. (3.05 m), Black
    15A, 14AWG (IEC-320-C14 to IEC-320-C13) 10-ft."
    Mfg. Part: P005-010

    $13.21

    Eaton Tripp Lite Series Power Extension Cord, C19 to C20 - Heavy-Duty, 20A, 250V, 12 AWG, 2 ft. (0.61 m), Black

    Eaton Tripp Lite Series Power Extension Cord, C19 to C20 - Heavy-Duty, 20A, 250V, 12 AWG, 2 ft. (0.61 m), Black
    20A, 12AWG (IEC-320-C19 to IEC-320-C20) 2-ft."
    Mfg. Part: P036-002

    $17.38

    Eaton Tripp Lite Series Power Extension Cord, C19 to C20 - Heavy-Duty, 20A, 250V, 12 AWG, 6 ft. (1.83 m), Black

    Eaton Tripp Lite Series Power Extension Cord, C19 to C20 - Heavy-Duty, 20A, 250V, 12 AWG, 6 ft. (1.83 m), Black
    20A, 12AWG (IEC-320-C19 to IEC-320-C20) 6-ft."
    Mfg. Part: P036-006

    $18.19

    Eaton Tripp Lite Series SmartRack 1U Horizontal Cable Manager - Flexible ring type

    Eaton Tripp Lite Series SmartRack 1U Horizontal Cable Manager - Flexible ring type
    Cable Panel - Black - 1U Rack Height - 19" Panel Width
    Mfg. Part: SRCABLERING1U

    $41.17

    Main Features

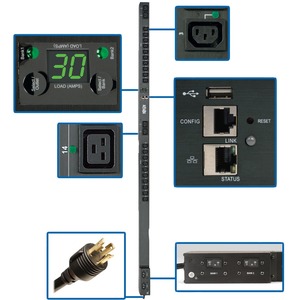

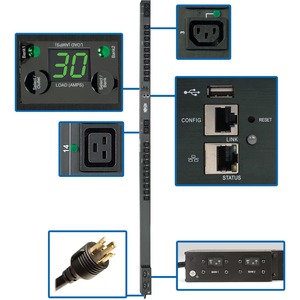

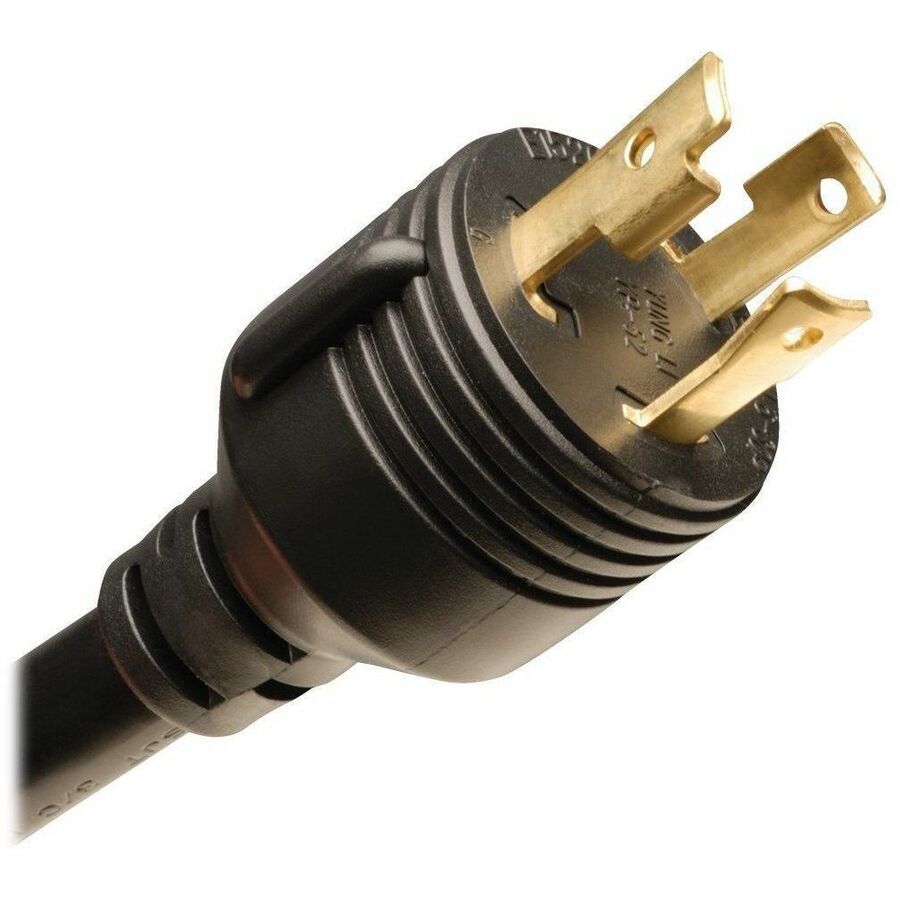

    The PDUMV30HVNETLX 5/5.8kW Single-Phase Switched PDU provides advanced network control and remote power monitoring with the ability to turn on, turn off, reboot or lock out power to each outlet. Recommended for any IT or industrial application, it features 24 switched outlets (20 C13 and 4 C19). LEDs indicate each outlet's on/off power status. A 10-foot cord with NEMA L6-30P plug connects the PDU to a compatible AC power source, generator or protected UPS.

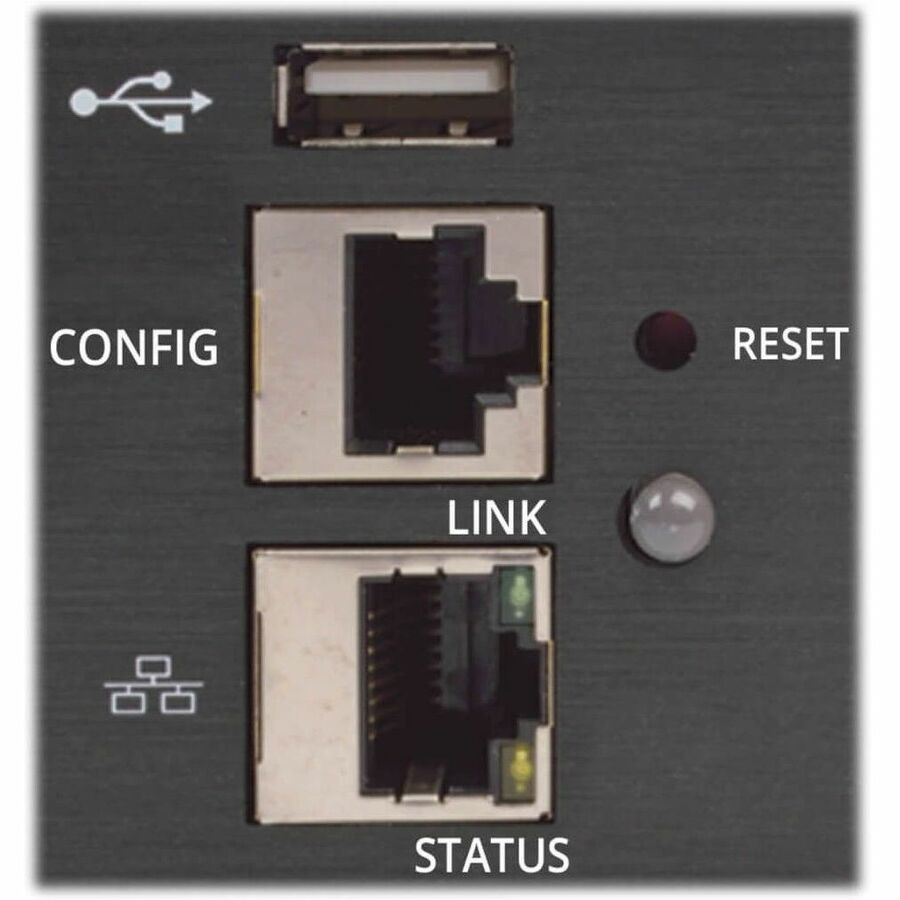

    The built-in Java-free HTML5-based LX Platform network interface enables full remote access for PDU status monitoring and email notifications via secure web browser, SNMP, telnet or SSH. It supports 10/100 Mbps auto-sensing for optimum communication with an Ethernet network. Optional EnviroSense2 modules (sold separately) provide a variety of environmental monitoring capabilities. Protocols supported include HTTP, HTTPS, SMTP, SNMPv1, SNMPv2, SNMPv3, telnet, SSH, FTP, DHCP and NTP.

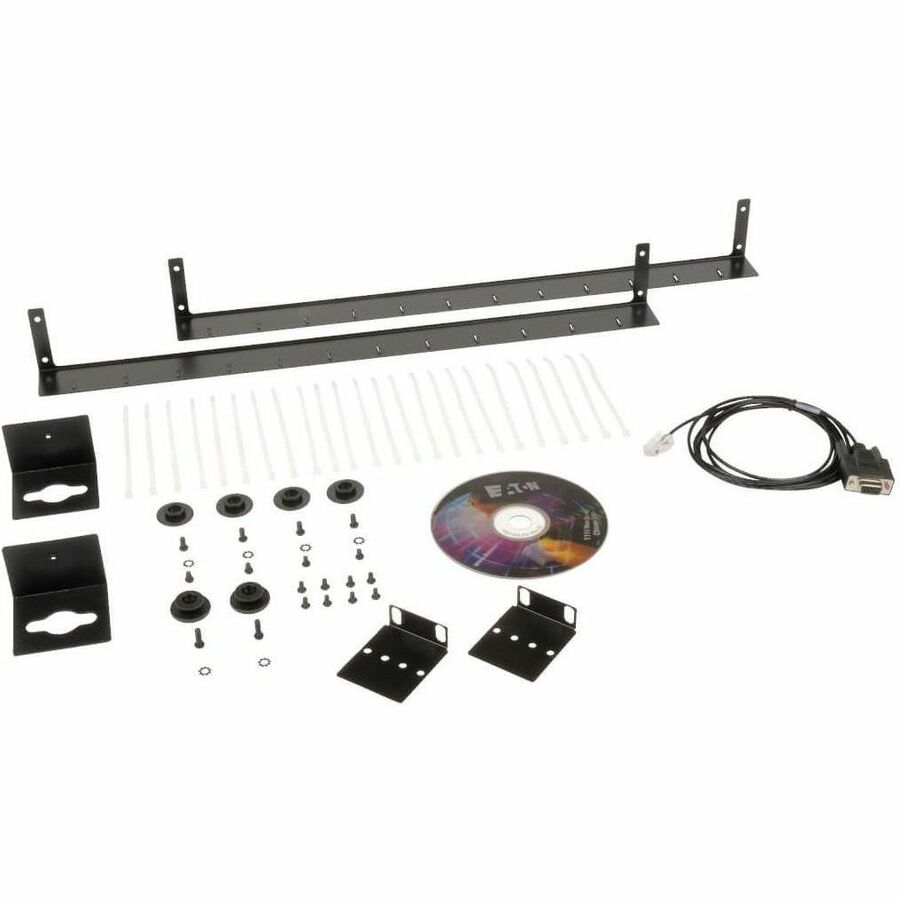

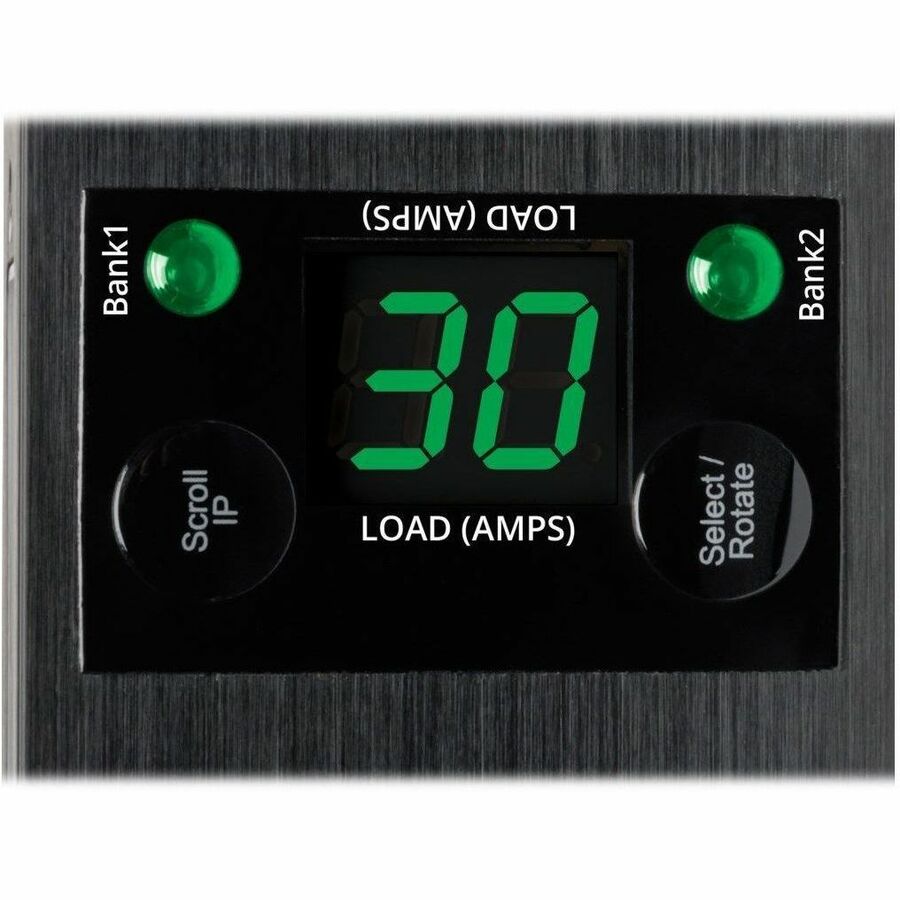

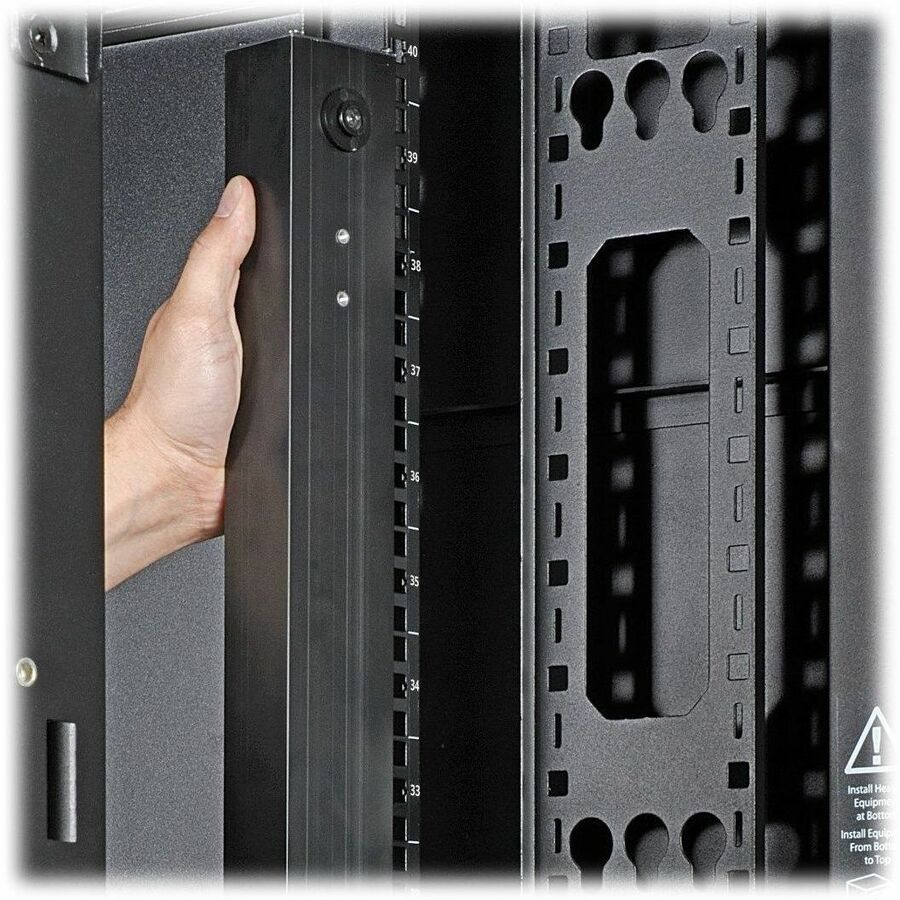

    A digital ammeter allows you to monitor each bank's load in real time to ensure it remains well below maximum capacity with no danger of overload. The PDU mounts in 0U of space in EIA-standard 19-inch racks using the included toolless mounting buttons or the included rack-mounting brackets. Use the included PDUMVROTATEBRKT kit to install the unit with outlets facing the rear for better airflow or equipment access.
