Eaton Tripp Lite Series HDMI over Cat5/6 Passive Extender, Low-Profile Remote Receiver for Video/Audio, Up to 100 ft. (30 m), TAA

1 Output Device - 100 ft Range - 1 x Network (RJ-45) - 1 x USB - 1 x HDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6 - TAA Compliant

Product ID

Mfg. Part: B126-1P0-MINI

UNSPSC: 45111800

MNJPartNumber: MNJ12807522

Availability

800-870-4340 Contact your MNJ Sales Representative for the latest availability

Product Pricing

$38.78

Options & Accessories

Eaton Tripp Lite Series Cat6 Gigabit Solid Conductor Snagless UTP Ethernet Cable (RJ45 M/M), PoE, Blue, 25 ft. (7.62 m)

Category 6 - 25ft - 1 x RJ-45 Male Network - 1 x RJ-45 Male Network - Blue

Mfg. Part: N202-025-BL

$22.36

Eaton Tripp Lite Series Cat6 Gigabit Solid Conductor Snagless UTP Ethernet Cable (RJ45 M/M), PoE, Blue, 50 ft. (15.24 m)

Category 6 - 50ft - 1 x RJ-45 Male Network - 1 x RJ-45 Male Network - Blue

Mfg. Part: N202-050-BL

$32.29

Eaton Tripp Lite Series Cat6 Gigabit Solid Conductor Snagless UTP Ethernet Cable (RJ45 M/M), PoE, Blue, 75 ft. (22.86 m)

Category 6 - 75ft - 1 x RJ-45 Male Network - 1 x RJ-45 Male Network - Blue

Mfg. Part: N202-075-BL

$36.18

Eaton Tripp Lite Series Cat6 Gigabit Solid Conductor Snagless UTP Ethernet Cable (RJ45 M/M), PoE, Blue, 100 ft. (30.5 m)

Category 6 - 100ft - 1 x RJ-45 Male Network - 1 x RJ-45 Male Network - Blue

Mfg. Part: N202-100-BL

$51.05

Eaton Tripp Lite Series 2-Port HDMI over Cat5/6 Extender/Splitter, Box-Style Transmitter for Video/Audio, Up to 150 ft. (45 m), TAA

1 Input Device - 200 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - Full HD - 1920 x 1080 - Twisted Pair - Rack-mountable, Wall Mountable, Pole-mountable - TAA Compliant

Mfg. Part: B126-002

$167.11

Overview
Specification

Main Features

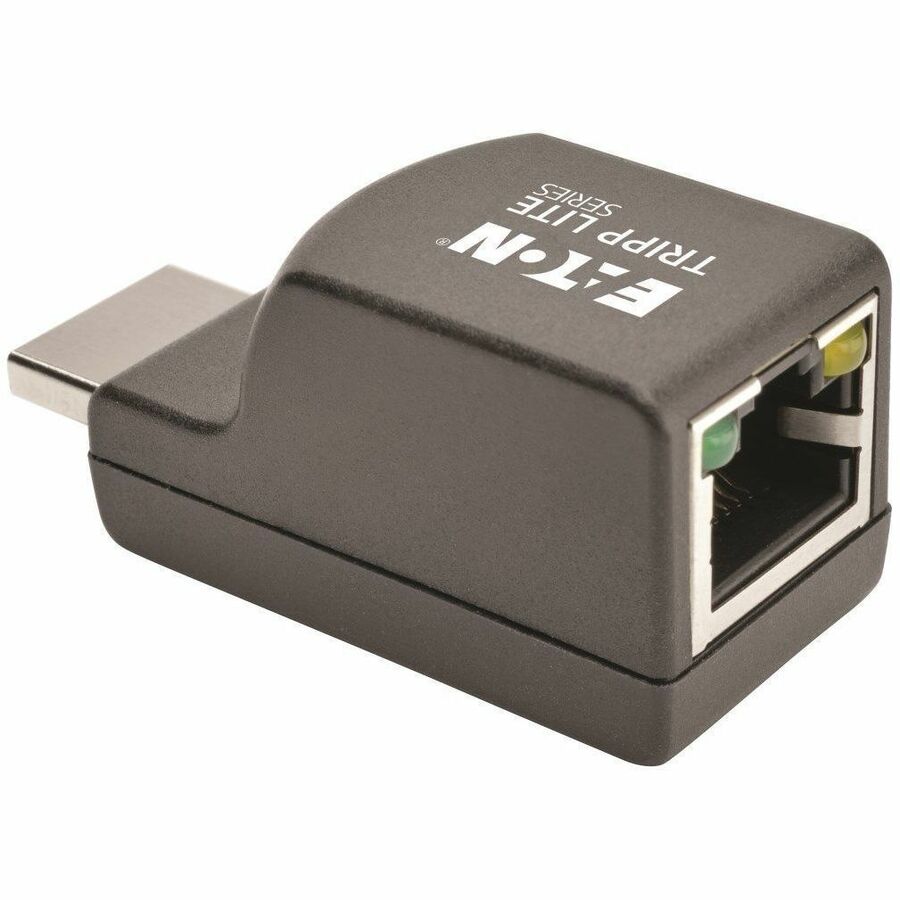

The B126-1P0-MINI HDMI over Cat5/Cat6 Passive Extender, Low-Profile Remote Receiver works with Tripp Lite's B126-002 and B126-004 transmitters (sold separately) to extend an HDMI signal to multiple projectors, monitors or televisions in a chain. It's recommended for digital signs, trade shows, presentations, classrooms, churches, retail settings and other applications where the video source is located farther than conventional cables allow.

The compact, low-profile design helps hide the unit from view. The B126-1P0-MINI's built-in HDMI male connector plugs directly into the monitor. The unit can extend a 1080i (@ 60 Hz) signal up to 100 feet (30.5 m) or a 1080p (@ 60 Hz) signal up to 50 feet (15.2 m) with a single Cat5e/6 cable. For best results, use 24 AWG solid-wire Cat5e/6 cable (such as Tripp Lite's N202-Series) between this unit and the transmitter.

In addition to crystal-clear video, the B126-1P0-MINI delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM) audio when paired with a B126-002 or B126-004 transmitter. Supports 24-bit True Color (8 bits per channel) and HDCP compatibility. Easy to set up with no software, drivers or external power supply required.

Features

Extends High-Definition Signals

Works in tandem with Tripp Lite's B126-002 and B126-004 transmitter units (sold separately)
Extends a 1080i (@ 60 Hz) signal up to 100 ft. (30.5 m)
Extends a 1080p (@ 60 Hz) signal up to 50 ft. (15.2 m)

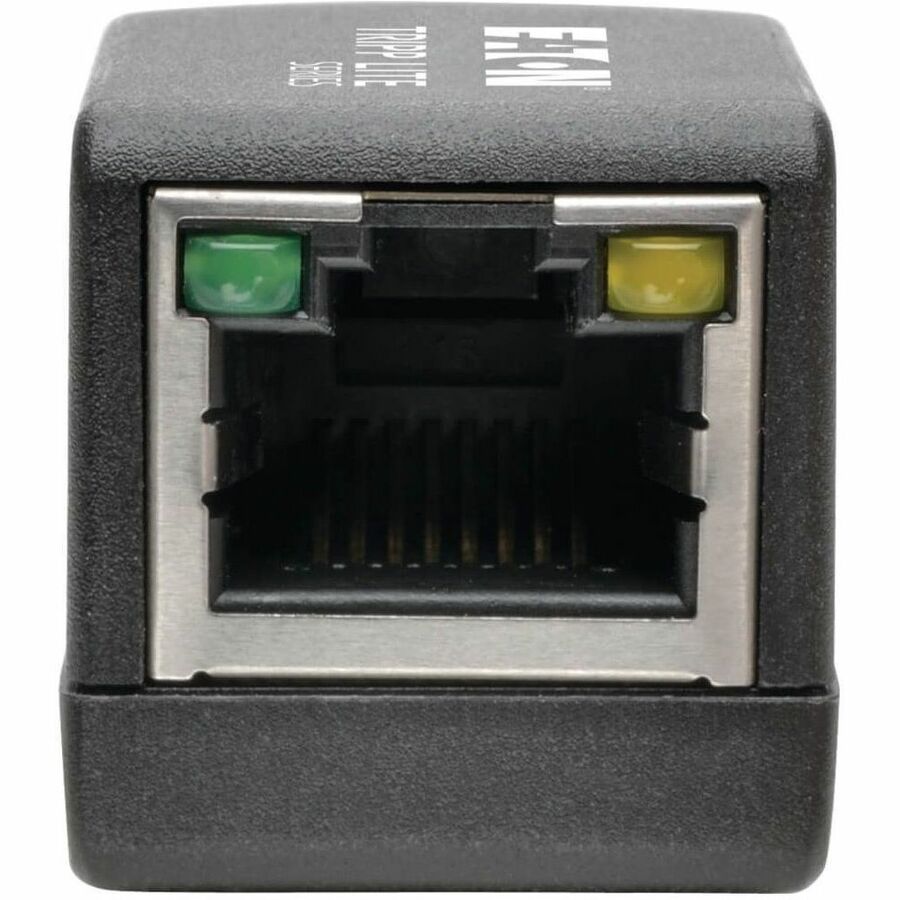

Connects to transmitter with one Cat5e/6 cable

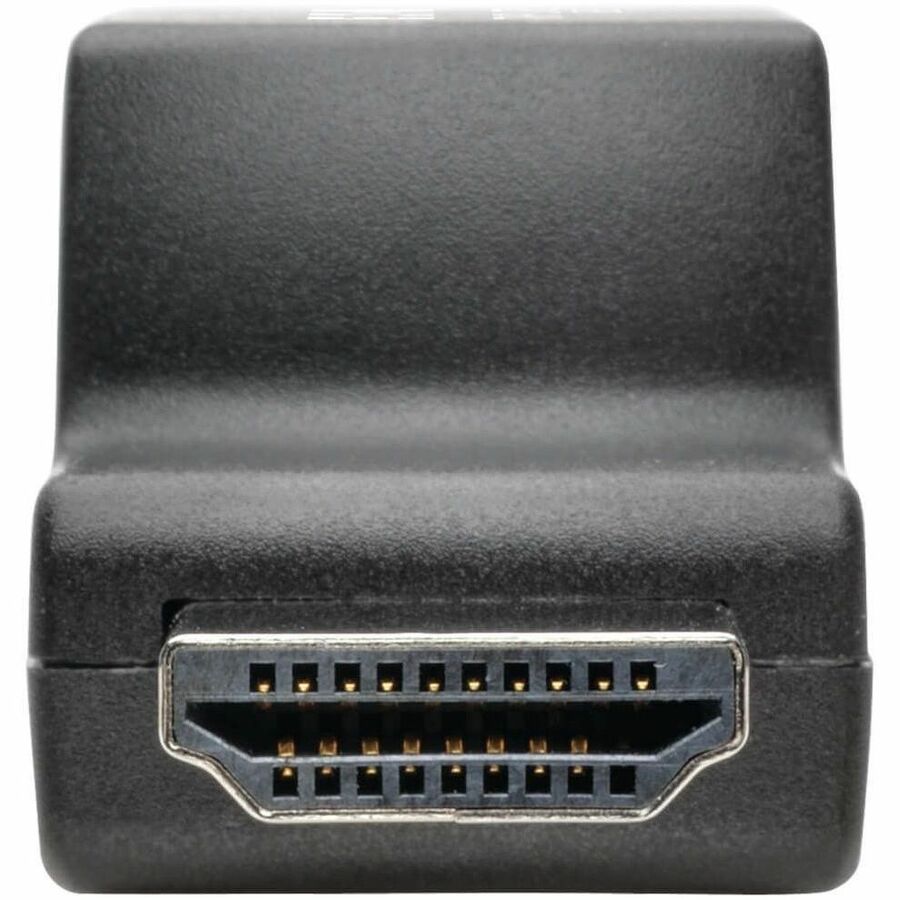

Built-in HDMI male connector plugs directly into monitor

Supports the Latest Video and Audio Resolutions

Works with all operating systems and HDMI video sources
Supports stereo and 7.1-channel surround sound (multi-channel or PCM) when paired with B126-002 or B126-004
Supports 24-bit True Color (8 bits per channel) and HDCP

Easy to Set Up and Use

Plug-and-play engineering-no software or drivers necessary

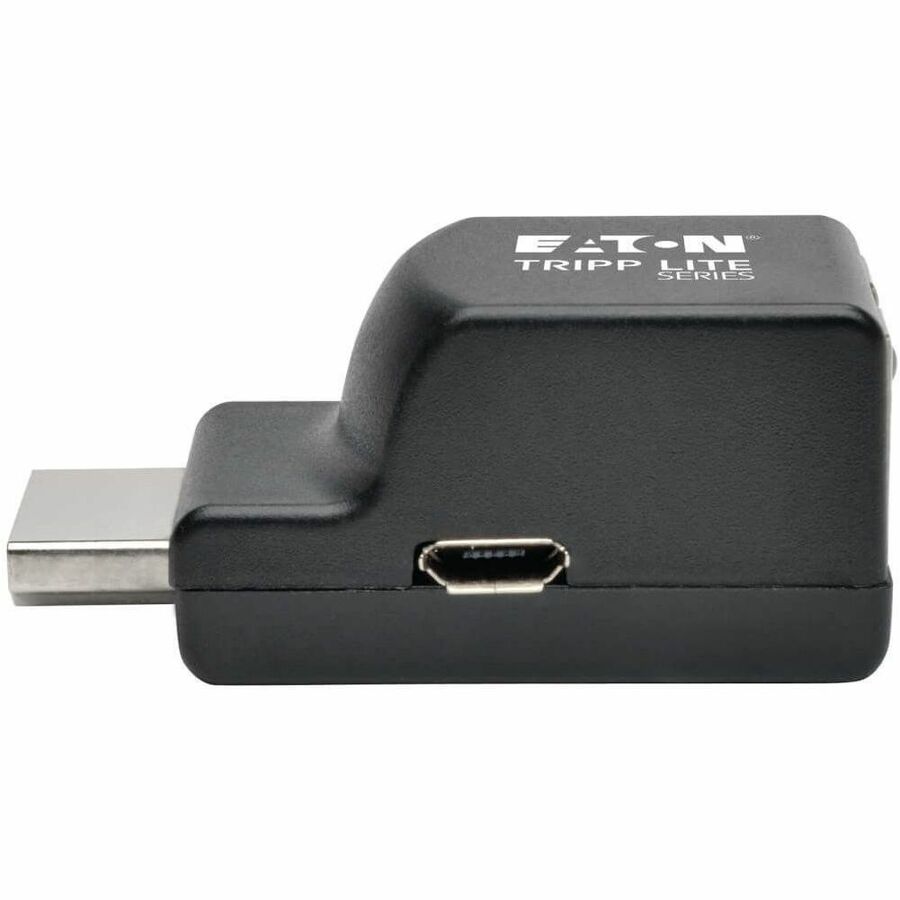

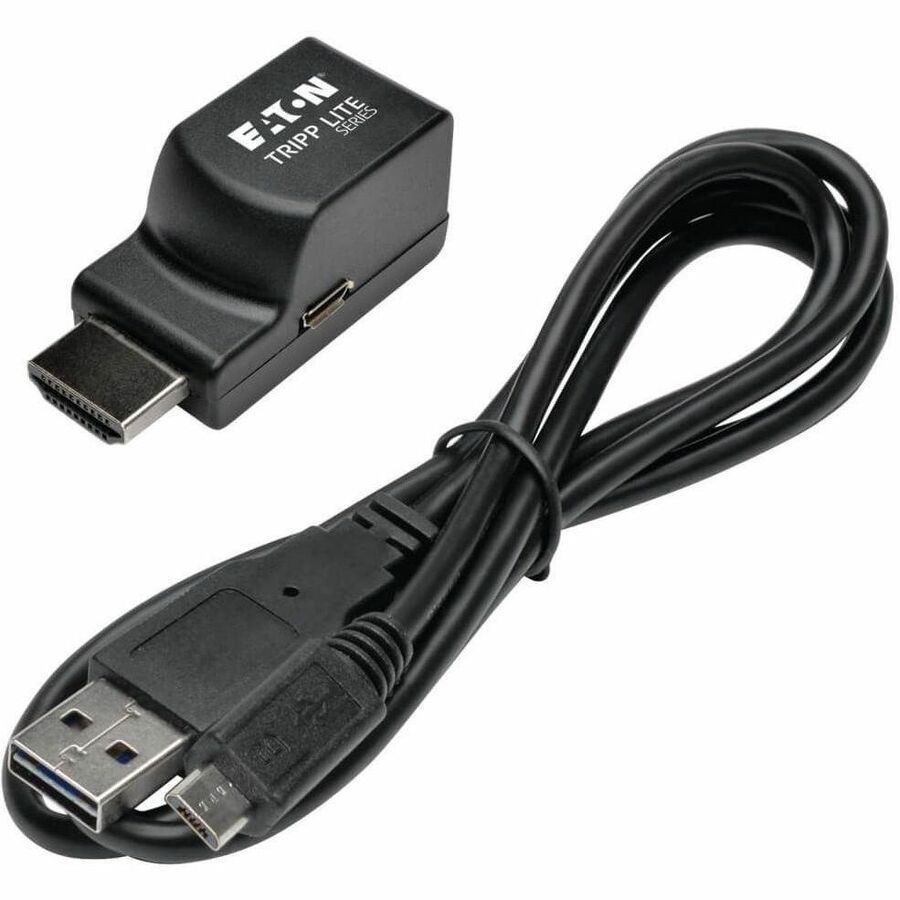

No external power required; included USB Micro-B cable provides extra power when necessary

TAA-Compliant

Compliant with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
