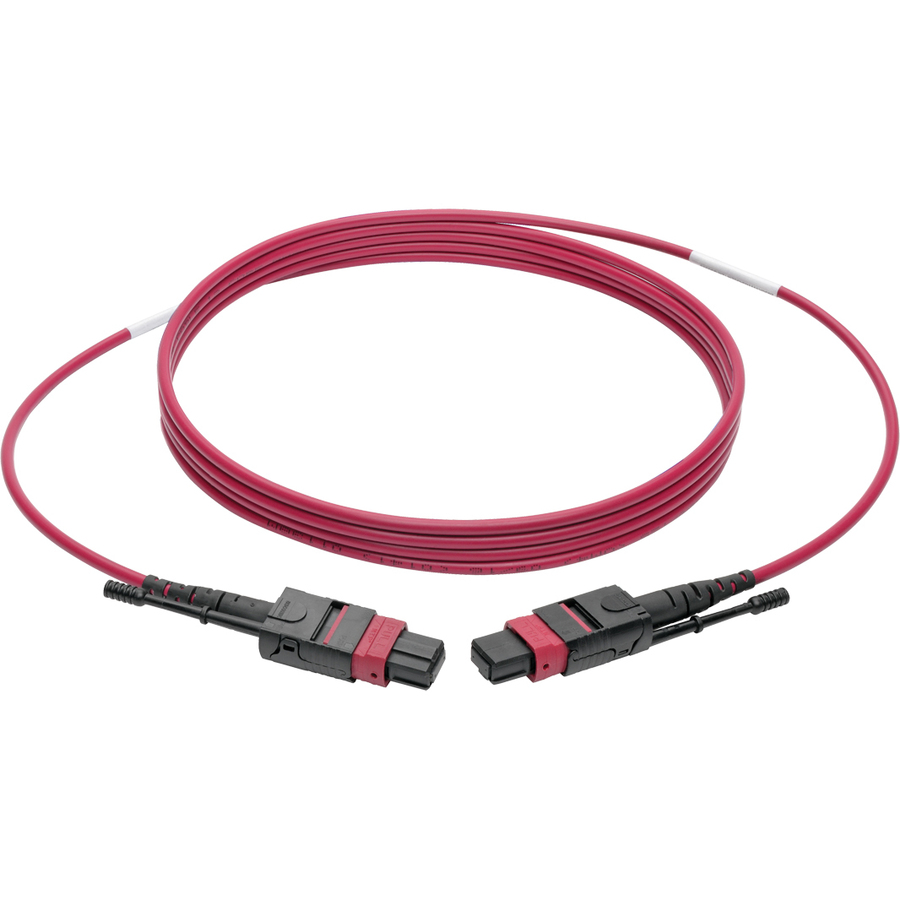

Tripp Lite by Eaton 100G MTP/MPO Multimode OM4 Plenum-Rated Fiber Optic Cable (F/F), 12 Fiber, 40/100GBASE-SR4, Push/Pull Tabs, Magenta, 2 m
Fiber Optic for Network Device - Patch Cable - 6.56 ft - 1 x MTP/MPO Female Network - 1 x MTP/MPO Female Network - 50/125 µm - Magenta
Product ID
Mfg. Part: N845-02M-12-MG
UNSPSC: 26121609
MNJPartNumber: MNJ12423019
Availability
800-870-4340
Contact your MNJ Sales Representative for the latest availability
Product Pricing
$301.55
Options & Accessories
Eaton Tripp Lite Series 100Gb/120Gb to 40Gb Breakout Cassette - (x2) 24-Fiber MTP/MPO ( Male with Pins ) to (x6) 12-Fiber OM4 MTP/MPO ( Male with Pins )
MTP/MPO Breakout Cassette
Mfg. Part: N482-2M24-6M12
$1947.68
Tripp Lite by Eaton High Density Rackmount Fiber Enclosure Panel 5 Cassette 1URM
1U High - 19" Wide - Rack-mountable"
Mfg. Part: N482-01U
$393.83
Tripp Lite by Eaton High Density Rackmount Fiber Enclosure Panel 14 Cassette 2URM
2U High - 19" Wide - Rack-mountable"
Mfg. Part: N482-02U
$581.62
Eaton Tripp Lite Series 40Gb to 10Gb Breakout Cassette - (x2) 12-Fiber OM4 MTP/MPO ( Male with Pins ) to (x12) LC
2 x MTP/MPO, 12 x LC - 14 Port(s) - 14 x RJ-11 - 12 x"
Mfg. Part: N482-2M12-LC12
$872.44
Eaton Tripp Lite Series 100Gb/120Gb to 10Gb Breakout Cassette - 24-Fiber OM4 MTP/MPO ( Male with Pins ) to (x12) LC
1 x MTP/MPO, 12 x LC - 13 Port(s) - 13 x RJ-11 - 12 x"
Mfg. Part: N482-1M24-LC12
$805.9
Main Features

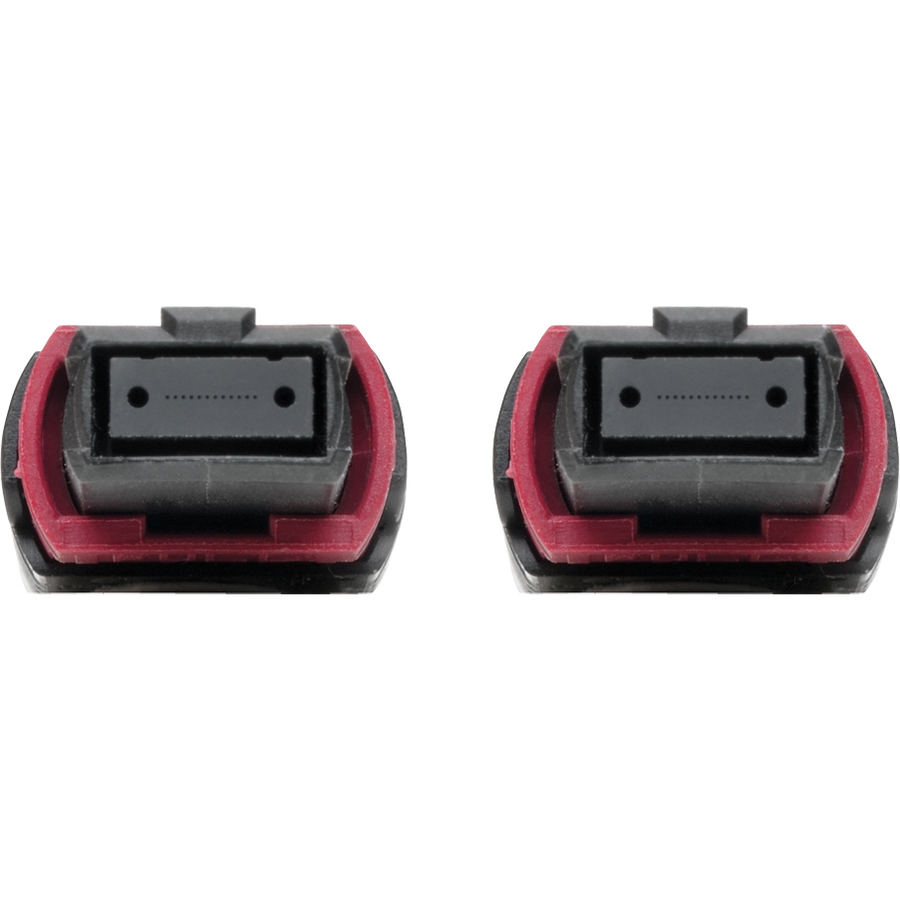

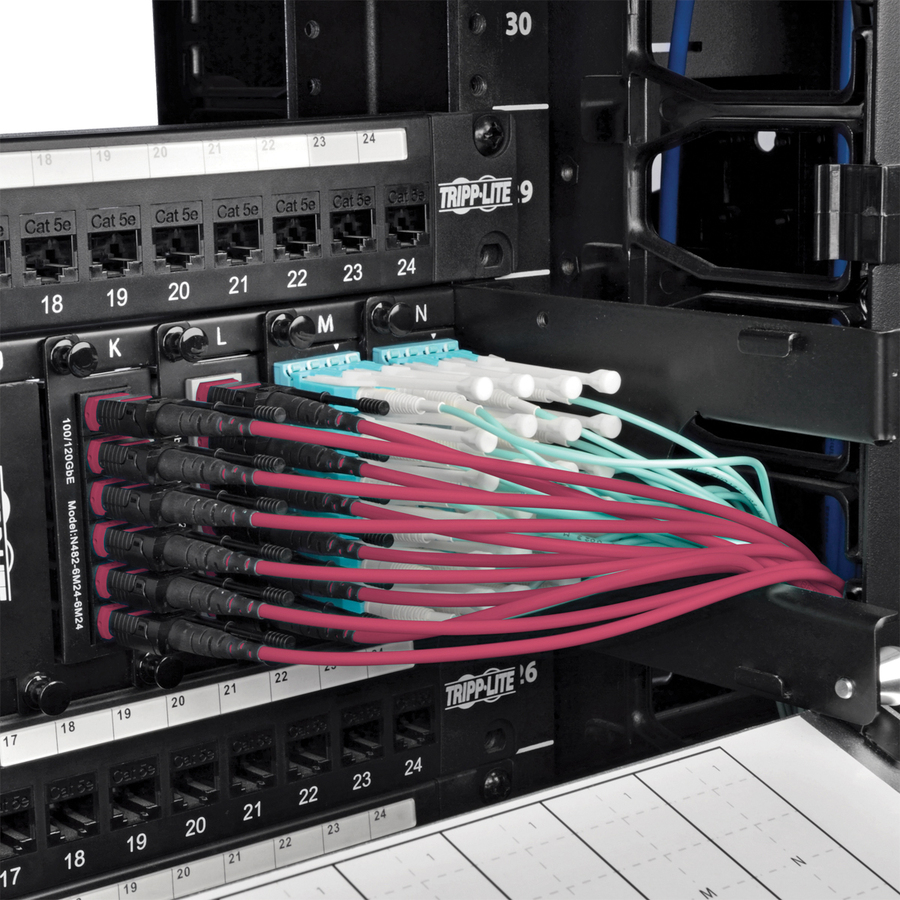

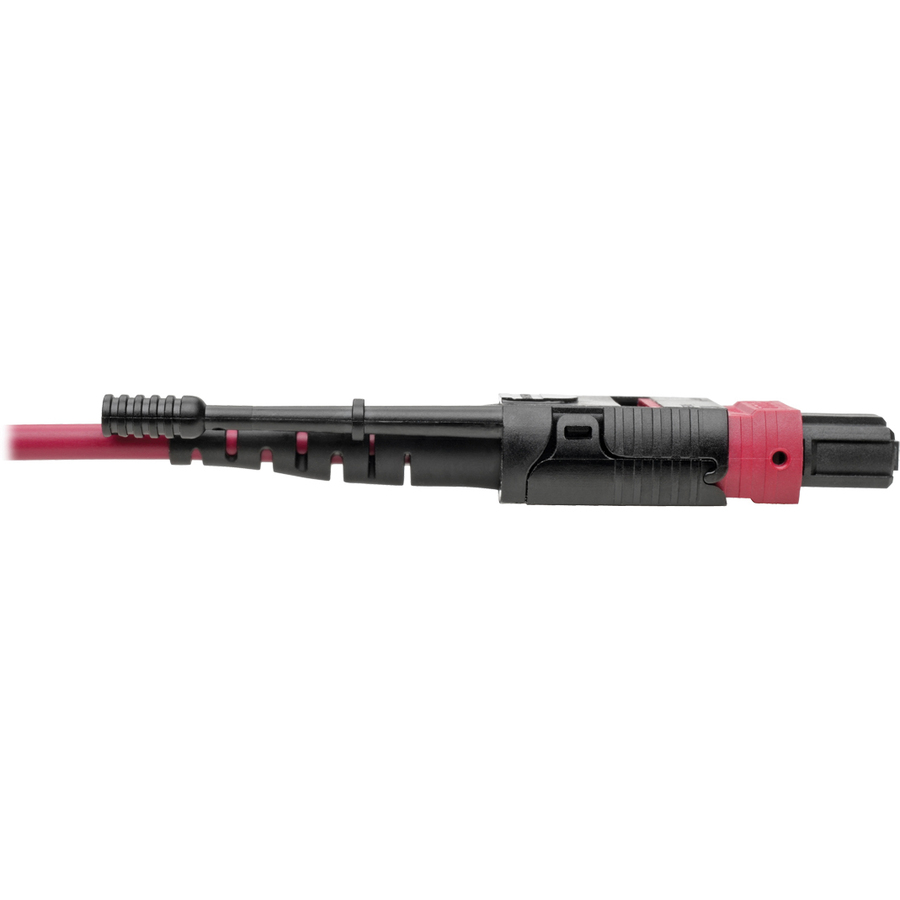

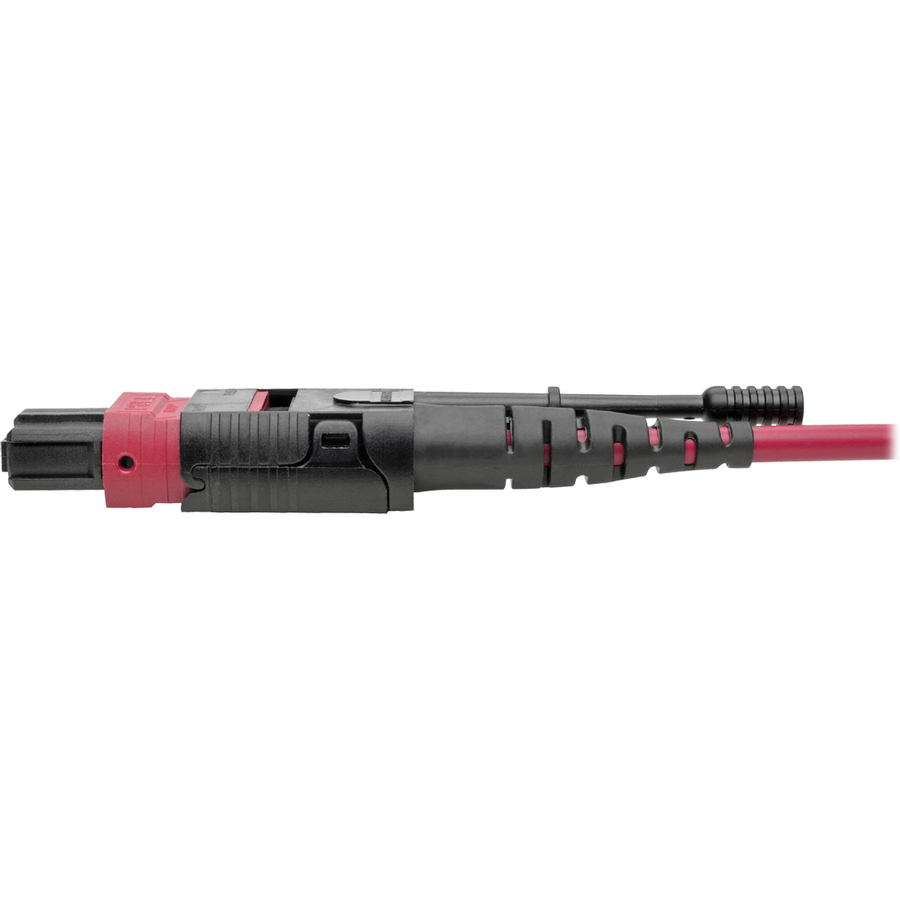

The two-meter N845-02M-12-MG MTP/MPO Multimode Patch Cable supports 40/100 Gb Ethernet speeds and is designed for high-density connections between network equipment in telecommunication rooms and data centers. With two female MTP/MPO connectors, this OM4-rated multimode fiber optic cable is recommended for high-density fiber patching between data center MDFs (main distribution frames) and IDF (intermediate distribution frames). It's colored magenta for instant identification as an OM4 cable.The 12-fiber MTP/MPO connectors are about the same size as SC connectors, but are 12 times denser, freeing up circuit card and rack space for other cables. The cable is tested for low insertion loss and back reflection on every connector and attenuation loss that meets or exceeds current standards. Push/pull tab connectors are easily accessible in high-density data center applications and make the cable easy to install and remove with one hand. The plenum-rated jacket is perfect for connecting high-speed network components in ceilings, walls and ducts.
