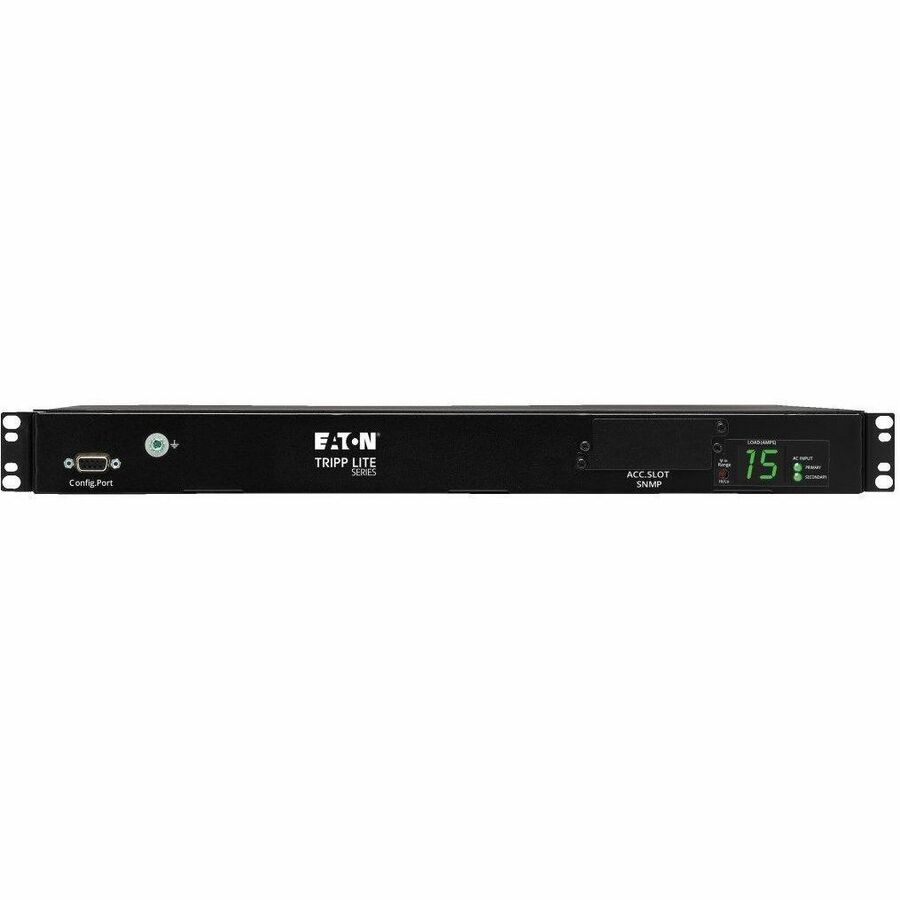

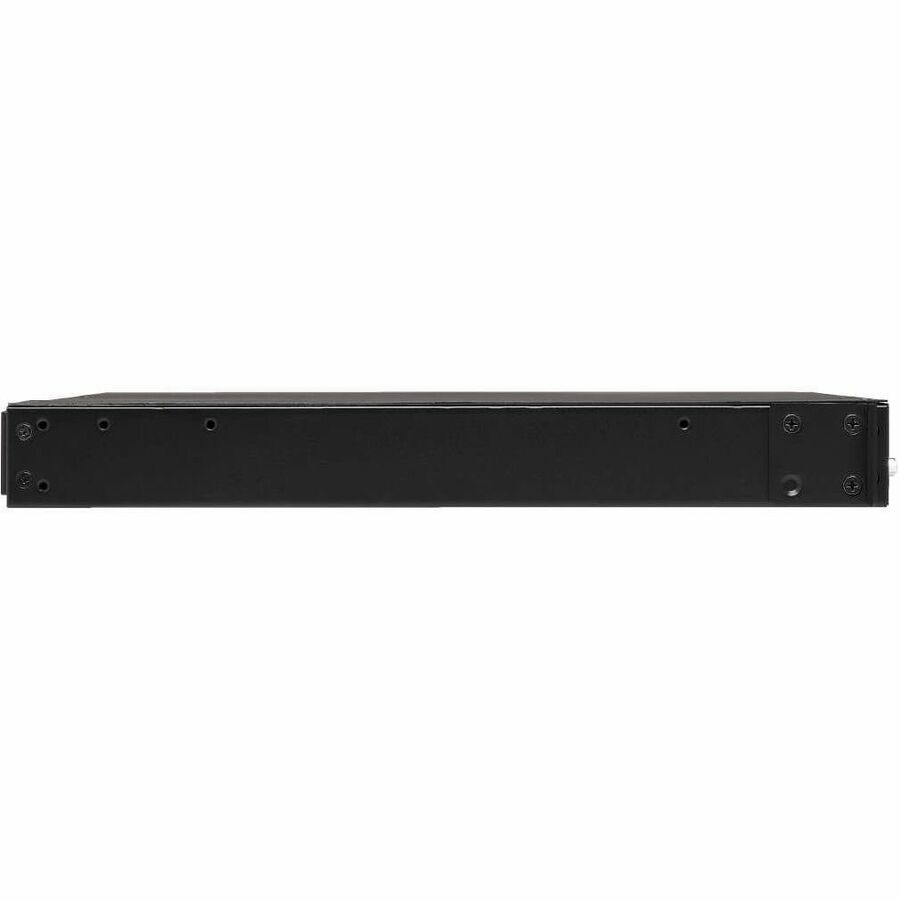

Eaton Tripp Lite Series 2.4kW Single-Phase Local Metered Automatic Transfer Switch PDU, Two 200-240V C14 Inlets, 10 C13 Outputs, 1U, TAA
IEC 60320 C14 - 10 x IEC 60320 C13 - 200 V AC, 208 V AC, 220 V AC, 230 V AC, 240 V AC - 2.40 kVA - 1U/2U - Horizontal Rackmount
Product ID
Mfg. Part: PDUMH15HVAT
UNSPSC: 39121017
MNJPartNumber: MNJ12401695
Availability
800-870-4340
Contact your MNJ Sales Representative for the latest availability
Product Pricing
$465.72
Options & Accessories
Eaton Tripp Lite Series C20 to C13 Power Cord for Computer - Heavy-Duty, 15A, 100-250V, 14 AWG, 7 ft. (2.13 m), Black
15A, 12AWG (IEC-320- C13 to IEC-320-C20) 7-ft."
Mfg. Part: P032-007
$16.81
Eaton Tripp Lite Series Computer Power Cord, NEMA L6-20P to C13 - Heavy-Duty, 15A, 250V, 14 AWG, 6 ft. (1.83 m), Black
(IEC-320-C13 to NEMA L6-20P) 6-ft.
Mfg. Part: P011-006
$22.36
Eaton Tripp Lite Series Desktop Computer Power Cable, NEMA 5-15P to C13 - 10A, 125V, 18 AWG, 12 ft. (3.66 m), Black
(NEMA 5-15P to IEC-320-C13) 12-ft.
Mfg. Part: P010-012
$7.49
Eaton Tripp Lite Series Desktop Computer Power Cord, NEMA 5-15P to C13, 5-Pack - 10A, 125V, 18 AWG, 2 ft. (0.61 m), Black
10A, 18AWG (NEMA 5-15P to IEC-320-C13) 2-ft."
Mfg. Part: P030-002-5
$29.91
Eaton Tripp Lite Series Extended Warranty and Technical Support for Select Products - Isolation Transformers, KVM, PDU, Inverters
Maintenance - Labor - Physical Service
Mfg. Part: WEXT1D
$57.21
Main Features
The PDUMH15HVAT 2-2.4kW Single-Phase 200-240V ATS/Metered PDU enables redundant power for network devices with non-redundant power supply configurations. Ideal for data centers and server rooms, it mounts in 1U of space in EIA-standard 19-inch racks and features 10 C13 outlets.

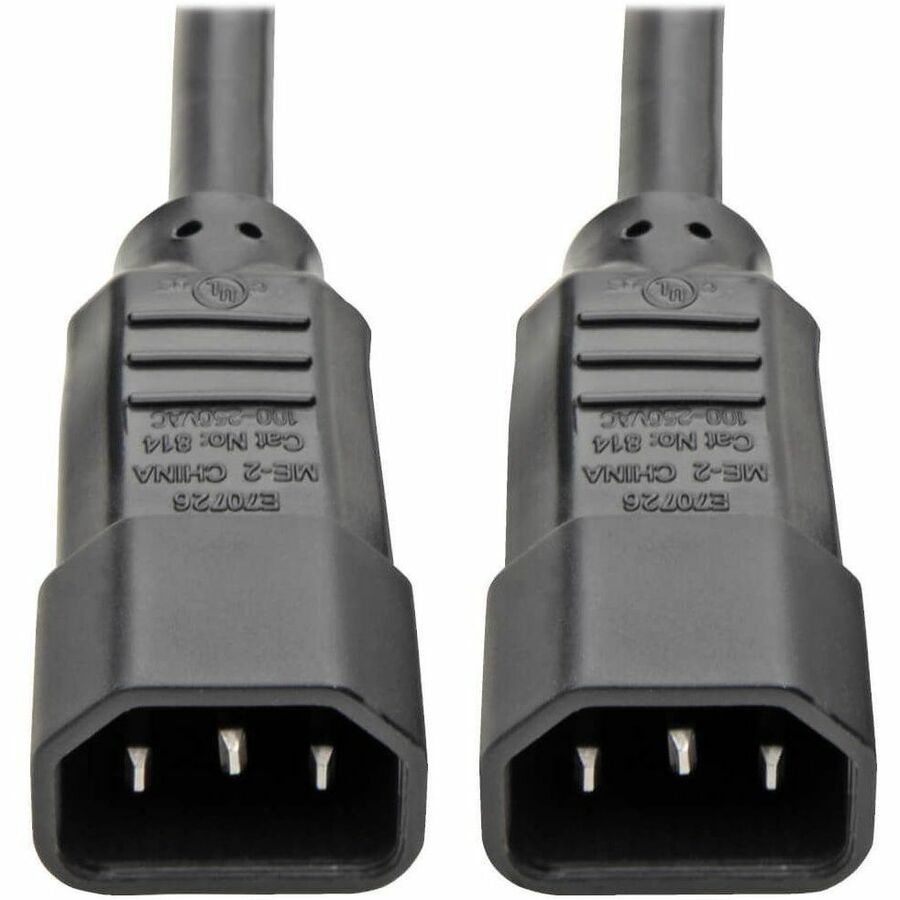

Dual 3.6-meter input cords with IEC-320 C14 plugs connect to separate primary and secondary single-phase power sources in a nominal voltage range from 200-240V. Plug lock inserts prevent cords from accidental disconnection. The PDUMH15HVAT constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 2-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Built-in slot supports the optional SNMPWEBCARD and WEBCARDLX (sold separately), which turn the PDUMH15HVAT into a switched PDU by allowing remote access to the PDU for power monitoring, configuration, outlet control and notifications via web browser, SSH, telnet or SNMP. Digital ammeter monitors total output current. LEDs display outlet on/off status and input power status on primary and secondary inputs.
Dual 3.6-meter input cords with IEC-320 C14 plugs connect to separate primary and secondary single-phase power sources in a nominal voltage range from 200-240V. Plug lock inserts prevent cords from accidental disconnection. The PDUMH15HVAT constantly evaluates the power quality of both input sources. Dynamic solid-state (TRIAC) automatic transfer switching allows the PDU to switch to the secondary source within 2-5 milliseconds should the primary source fail or become unstable to ensure your connected equipment operates without interruption.
Built-in slot supports the optional SNMPWEBCARD and WEBCARDLX (sold separately), which turn the PDUMH15HVAT into a switched PDU by allowing remote access to the PDU for power monitoring, configuration, outlet control and notifications via web browser, SSH, telnet or SNMP. Digital ammeter monitors total output current. LEDs display outlet on/off status and input power status on primary and secondary inputs.
