Eaton Tripp Lite Series 4-Port DisplayPort Multi-Monitor Splitter, MST Hub, 4K 60Hz UHD, DP1.2, TAA
3840 × 2160 - DisplayPort 1.2
Product ID
Mfg. Part: B156-004-V2
UNSPSC: 43211503
MNJPartNumber: MNJ12087634
Availability
800-870-4340
Contact your MNJ Sales Representative for the latest availability
Product Pricing
$209.72
Options & Accessories
Tripp Lite by Eaton series DisplayPort 2.1 Cable with Latching Connectors (M/M), 8K 60 Hz, 40 Gbps, HDR, HBR3, MST, 4:4:4, HDCP 2.2, Black, 6 ft. (1.8 m)
6 ft DisplayPort A/V Cable for Audio/Video Device, Home Theater System, Gaming Console, Blu-ray Player, HDTV, Monitor - First End: 1 x DisplayPort 2.1 Digital Audio/Video - Male - Second End: 1 x DisplayPort 2.1 Digital Audio/Video - Male - 40 Gbit/s - Supports up to 7680 x 4320 - Nickel Plated Connector - Gold Plated Contact - VW-1 - 30 AWG - Black
Mfg. Part: P580-006-8K6-2
$49.42
Eaton Tripp Lite Series DisplayPort 2.1 Cable with Latching Connectors (M/M), 8K 60 Hz, 40 Gbps, HDR, HBR3, MST, 4:4:4, HDCP 2.2, Black, 3 ft. (0.9 m)
3 ft DisplayPort A/V Cable - First End: DisplayPort 2.1 Digital Audio/Video cable - Male - Second End: DisplayPort 2.1 Digital Audio/Video - Male - 40 Gbit/s - Supports up to 7680 x 4320 - Black
Mfg. Part: P580-003-8K6-2
$42.83
Eaton Tripp Lite Series Mini DisplayPort to DisplayPort Adapter Cable, 4K 60Hz (M/M), DP Latching Connector, White, 6 ft. (1.8 m)
DisplayPort for Audio/Video Device, Monitor, Notebook - 6 ft - 1 x DisplayPort Male Digital Audio/Video - 1 x Mini DisplayPort Male Thunderbolt - White"
Mfg. Part: P583-006
$20.58
Tripp Lite by Eaton Mini DisplayPort to DisplayPort Adapter Cable 4K 60Hz (M/M) DP Latching Connector White 10 ft. (3.1 m)
DisplayPort for Audio/Video Device, Monitor, Notebook - 10 ft - 1 x DisplayPort Male Digital Audio/Video - 1 x Mini DisplayPort Male Thunderbolt - White"
Mfg. Part: P583-010
$26.46
Eaton Tripp Lite Series DisplayPort Cable with Latching Connectors, 4K (M/M), Black, 25 ft. (7.62 m)
(M/M) 25-ft.
Mfg. Part: P580-025
$136.33
Main Features

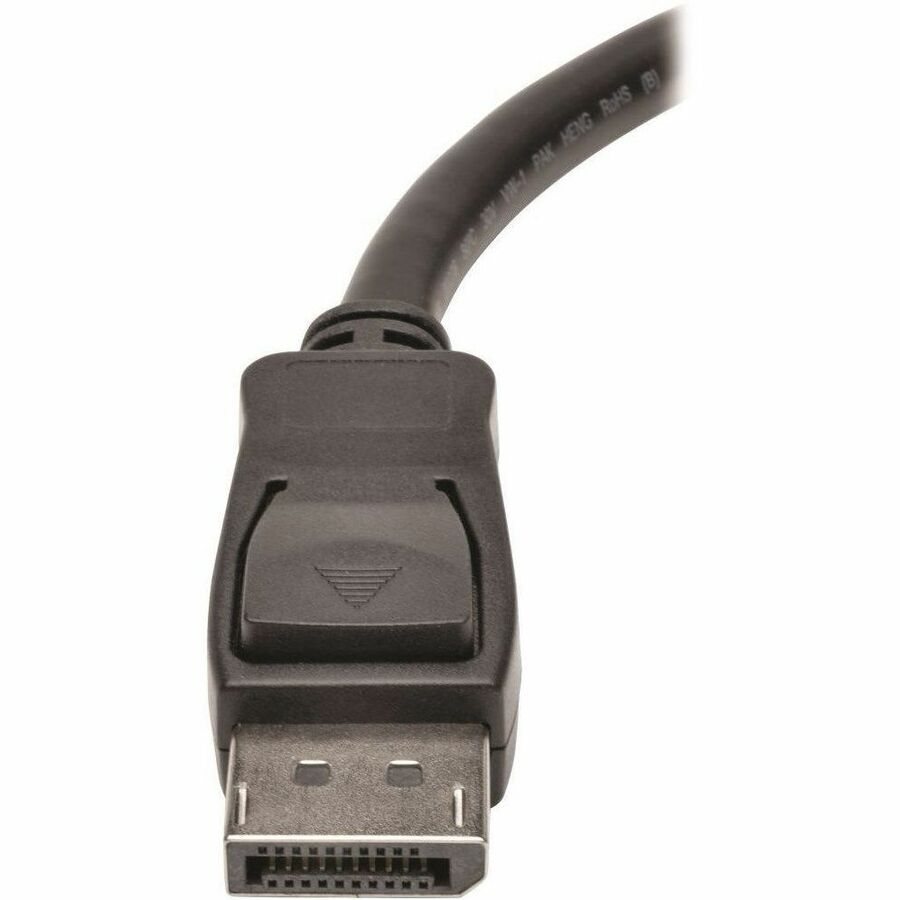

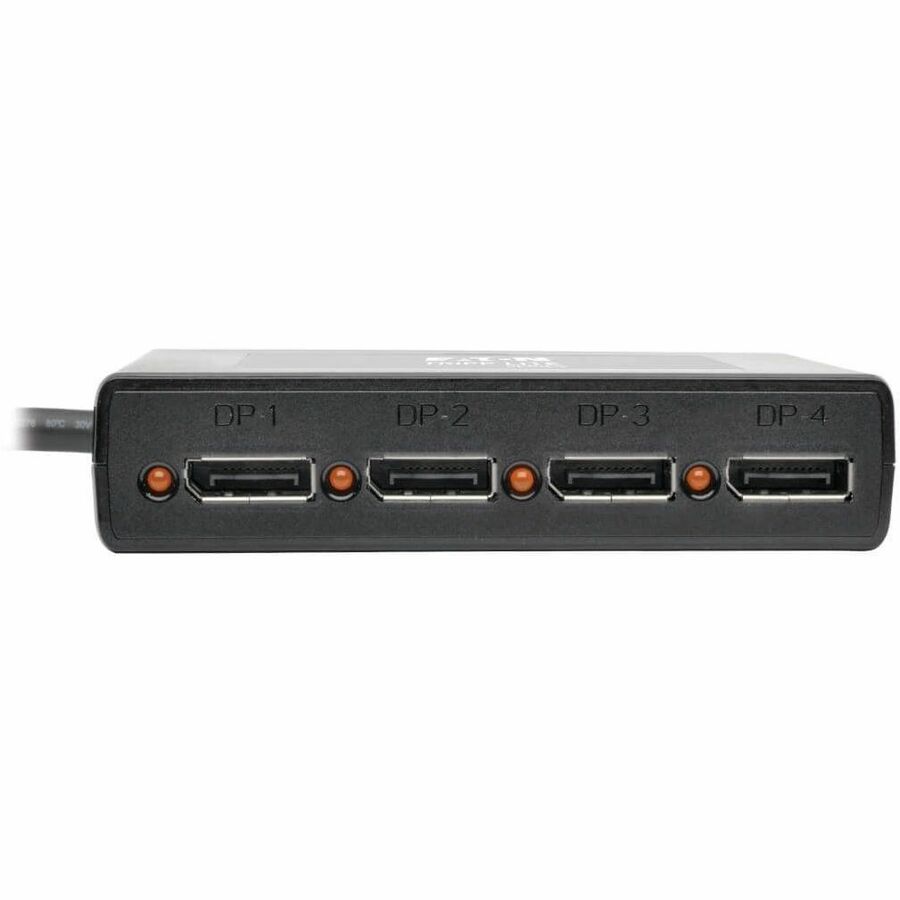

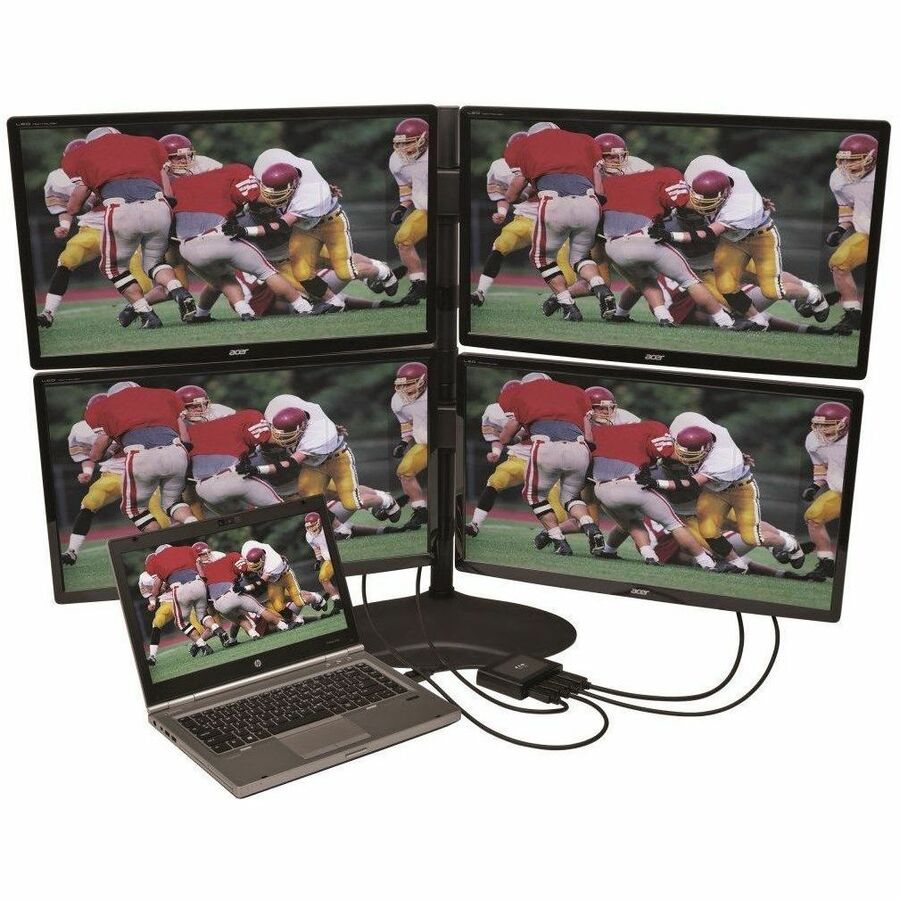

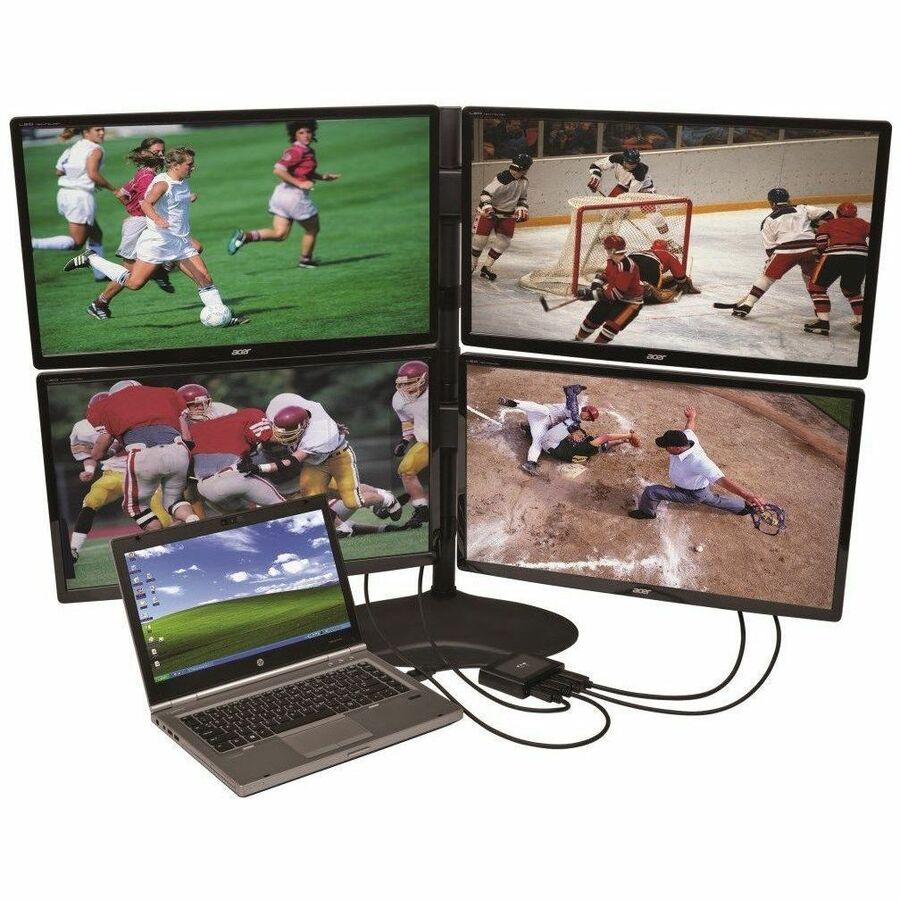

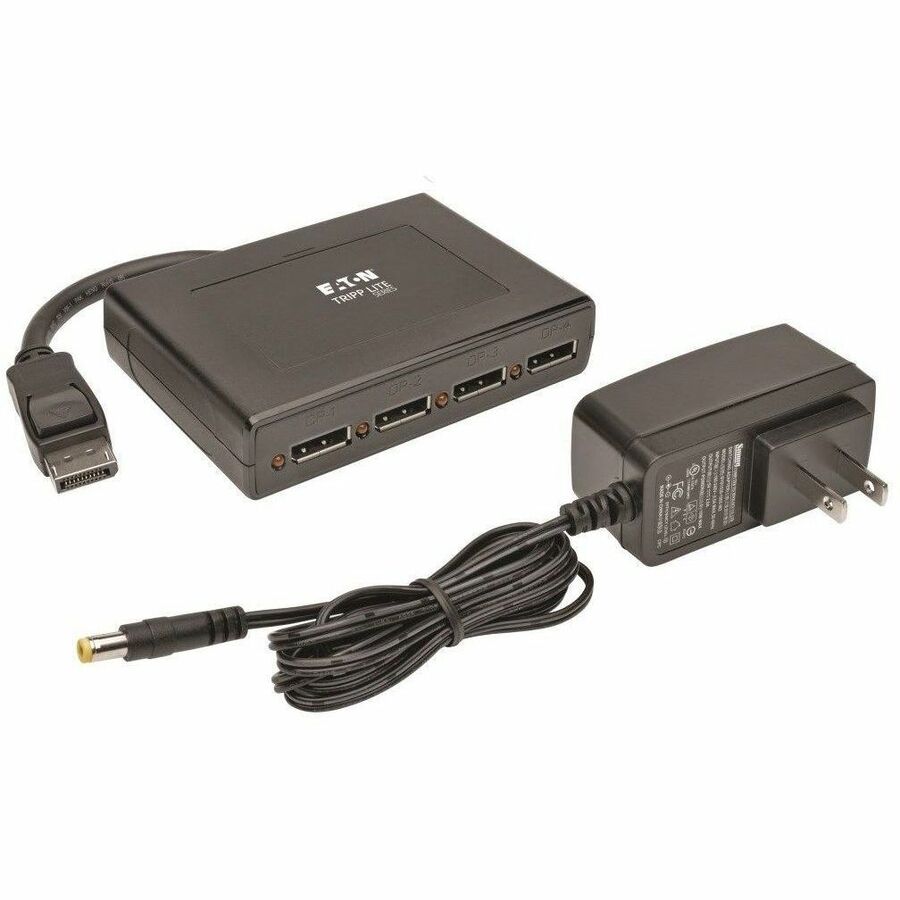

The B156-004-V2 4-Port DisplayPort 1.2 MST Hub connects up to four DisplayPort monitors to the DisplayPort output on your computer. Ideal for digital signage in schools, churches, conference rooms, trade shows, hotels and retail outlets, this hub allows you to display the same image on all four monitors, extend the desktop across them, or combine all four into one large monitor in video wall mode.The B156-004-V2 is compliant with DisplayPort 1.2 and backward compatible with versions 1.1 and 1.1a with the feature set being limited to that of your equipment. It supports high-definition video resolutions up to 1920 x 1080 (1080p) per monitor. In video wall mode, this hub supports expanded video resolutions, such as 3840 x 2160 (4K x 2K) in a 2 x 2 monitor configuration or 7680 x 1080 in a vertical 4 x 1 configuration.This MST hub also supports HDCP, EDID, DDC and 48-bit Deep Color (16 bits per channel), as well as DTS-HD, Dolby TrueHD and 7.1-channel surround sound audio. It works with all operating systems. Plug-and-play convenience means no software or drivers are needed. A built-in six-inch cable connects directly to a DisplayPort source. LEDs indicate when the monitors are receiving a signal. The B156-004-V2 complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
- Computer with DisplayPort 1.2-compatible graphics card (e.g. AMD Radeon with AMD Eyefinity) required for video wall mode. Backward compatible with most DisplayPort 1.1a equipment running current graphics drivers with feature set limited to that of your equipment. Compatibility with older graphics cards not guaranteed.
- MST-compliant graphics cards are limited to a bandwidth of 21.6 Gbps amongst all monitors with higher resolution monitors using up more bandwidth. 1080p monitors will use up approximately 22% of bandwidth, whereas 4K monitors will use 40% or more. As each monitor will be different, it is necessary to verify the percentage of bandwidth being used by each monitor in the display settings interface of your graphics card. If the total percentage of bandwidth taken up by all the connected monitors exceeds 100%, an image will not display on one or more of them.
- Computer with DisplayPort 1.2-compatible graphics card (e.g. AMD Radeon with AMD Eyefinity) required for video wall mode.
- Backward compatible with most DisplayPort 1.1a equipment running current graphics drivers with feature set limited to that of your equipment. Compatibility with older graphics cards not guaranteed.
- Mac OS X does not support MST for NVIDIA and Intel Graphics Processor Units, limiting video display on connected monitors to mirror mode.
- MST-compliant graphics cards are limited to a bandwidth of 21.6 Gbps amongst all monitors with higher resolution monitors using up more bandwidth. 1080p monitors will use up approximately 22% of bandwidth, whereas 4K monitors will use 40% or more. As each monitor will be different, it is necessary to verify the percentage of bandwidth being used by each monitor in the display settings interface of your graphics card. If the total percentage of bandwidth taken up by all the connected monitors exceeds 100%, an image will not display on one or more of them.
- Monitor(s) with DisplayPort input.
