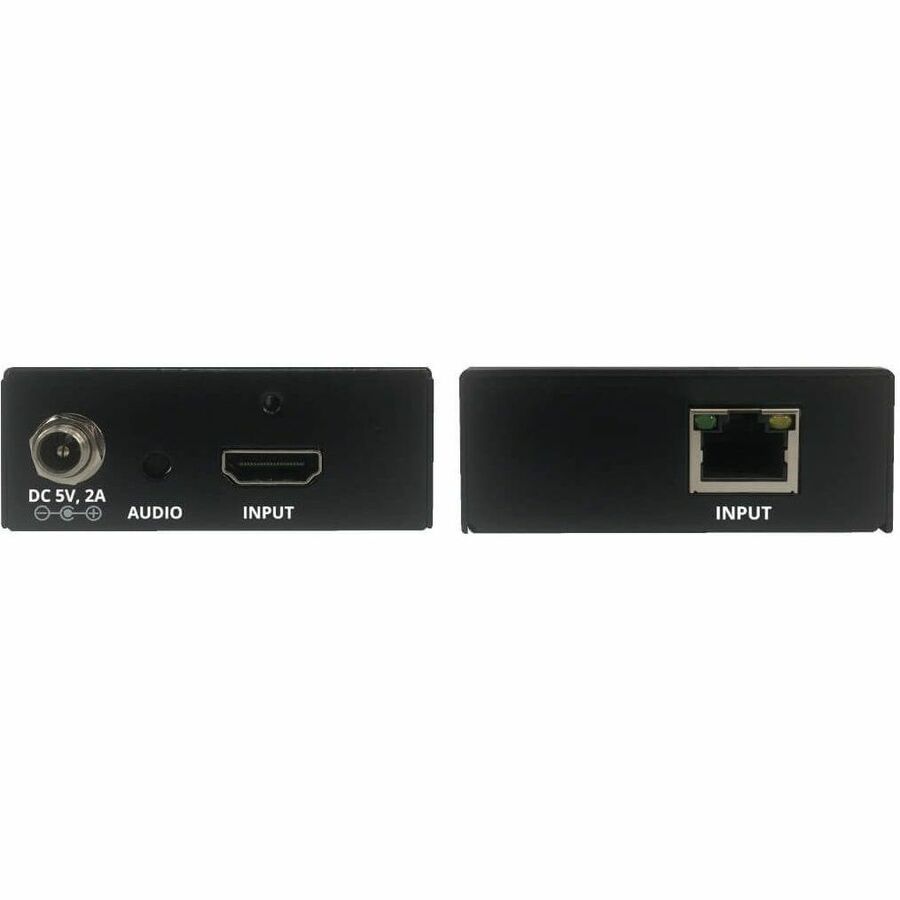

Eaton Tripp Lite Series HDMI over Cat5/6 Extender Kit, Box-Style Transmitter/Receiver for Video/Audio, PoC, Up to 125 ft. (38 m), TAA
1 Input Device - 1 Output Device - 125 ft Range - 2 x Network (RJ-45) - 1 x HDMI In - 2 x HDMI Out - Full HD - 1920 x 1080 - Twisted Pair - Category 6a - Rack-mountable, Wall Mountable, Pole-mountable - TAA Compliant
Product ID
Mfg. Part: B126-1A1-POC
UNSPSC: 45111800
MNJPartNumber: MNJ12020878
Availability
800-870-4340
Contact your MNJ Sales Representative for the latest availability
Product Pricing
$387.98
Options & Accessories
Tripp Lite by Eaton High-Speed HDMI to HDMI Cable Digital Video with Audio UHD 4K Black 6 ft. (1.83 m)
6 ft HDMI A/V Cable for Audio/Video Device, Projector, LCD TV, Satellite Receiver, TV - First End: 1 x HDMI Digital Audio/Video - Male - Second End: 1 x HDMI Digital Audio/Video - Male - 18 Gbit/s - Shielding - Black - 1 Each
Mfg. Part: P568-006
$18.67
Eaton Tripp Lite Series DIN Rail-Mounting Bracket for Digital Signage, Version 2 - 65 mm Mounting Distance
Black
Mfg. Part: B110-DIN-02
$22.54
Main Features
The B126-1A1-POC HDMI over Cat5 Active Extender Kit includes a transmitter unit and a receiver unit that work in tandem to extend an HDMI audio/video signal to a projector, monitor or television. The kit is ideal for digital signs, trade shows, classrooms, churches, offices, retail settings and other applications where the source is located farther than conventional cables allow.
HDMI cable (see Tripp Lite's P569-Series) connects an optional local display and the audio/video source, such as a Blu-ray™ player, to the transmitter's HDMI ports and a remote display to the receiver. Cat5e/6/6a cable connects the two units (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series). Built-in Power over Cable (POC) technology powers the receiver over Cat5e/6/6a cable, so no external power supply on the display side is needed.
The B126-1A1-POC can extend a high-definition 1080p (@ 60 Hz) signal up to 125 feet. In addition to crystal-clear video, the B126-1A1-POC delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM). Built-in equalization control lets you fine-tune the image quality at the remote display. Supports 24-bit True Color (8 bits per channel) and HDCP. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
HDMI cable (see Tripp Lite's P569-Series) connects an optional local display and the audio/video source, such as a Blu-ray™ player, to the transmitter's HDMI ports and a remote display to the receiver. Cat5e/6/6a cable connects the two units (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series). Built-in Power over Cable (POC) technology powers the receiver over Cat5e/6/6a cable, so no external power supply on the display side is needed.
The B126-1A1-POC can extend a high-definition 1080p (@ 60 Hz) signal up to 125 feet. In addition to crystal-clear video, the B126-1A1-POC delivers full, rich stereo and 7.1-channel surround sound (multi-channel or PCM). Built-in equalization control lets you fine-tune the image quality at the remote display. Supports 24-bit True Color (8 bits per channel) and HDCP. Easy to set up with no software or drivers to install. Mounts to a wall, rack or pole using the included hardware. Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases.
Features
Extends High-Definition Signals
- Extends a 1080p (@ 60 Hz) signal up to 125 ft.
- Transmitter and receiver connect with one Cat5e/6/6a cable (for best results, use 24 AWG solid-wire Cat5e/6 cable, such as Tripp Lite's N202-Series)
- Supports stereo and 7.1-channel surround sound (multi-channel or PCM) audio
- Supports 24-bit True Color (8 bits per channel) and HDCP

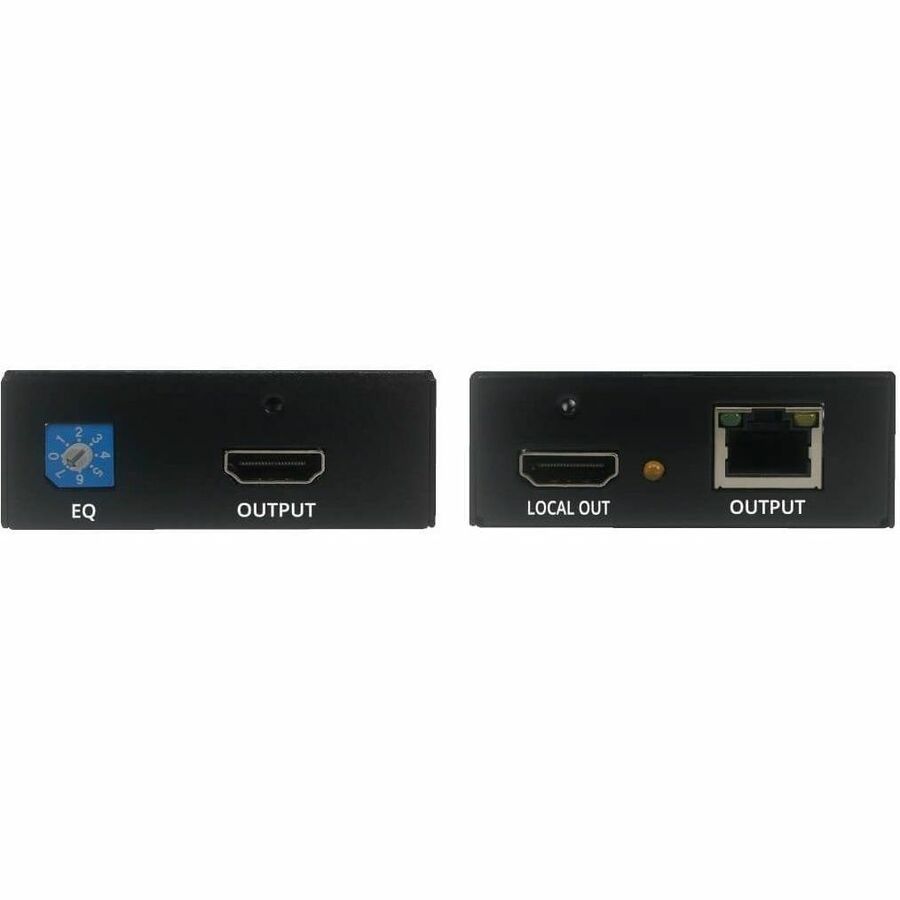

- Built-in equalization control lets you adjust the image on the local monitor
Easy to Set Up and Use
- Plug-and-play engineering-no software or drivers to download and install
- Works with all operating systems and HDMI video sources
- Units connect quickly to monitors with HDMI cable, such as Tripp Lite's P569-Series
- LEDs indicate at a glance when the units are receiving power and an HDMI signal

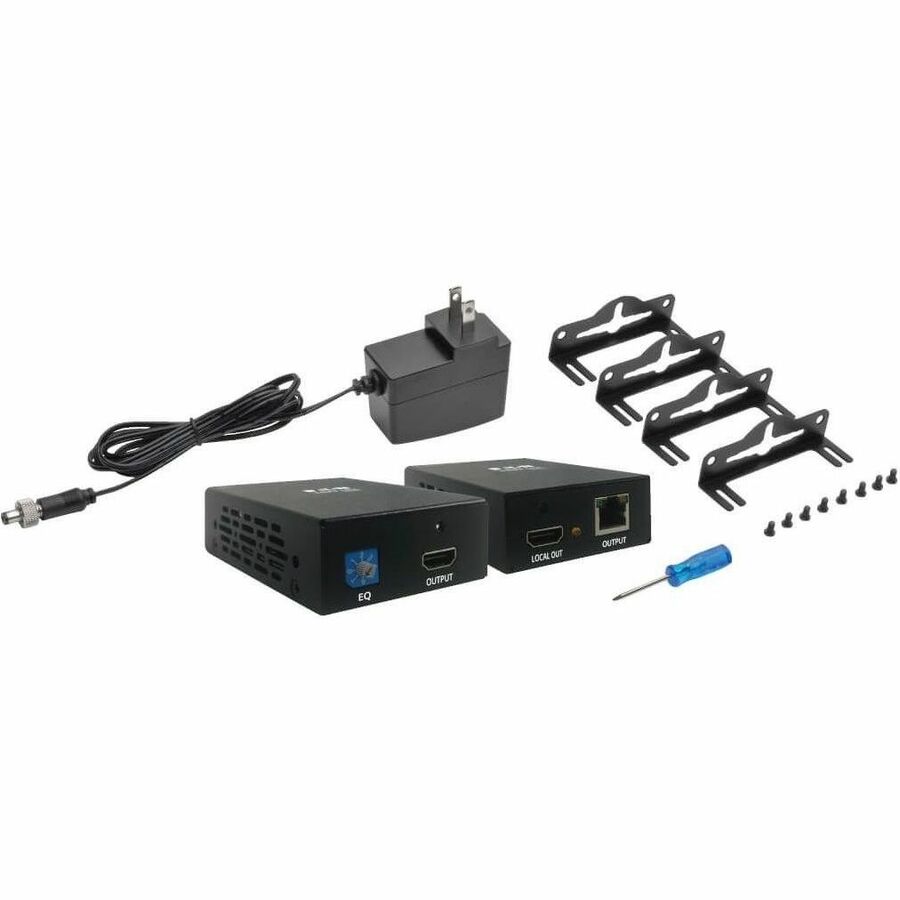

- Included mounting hardware lets you install the units on a wall, rack or pole
TAA Compliant
- Complies with the Federal Trade Agreements Act (TAA) for GSA Schedule purchases
