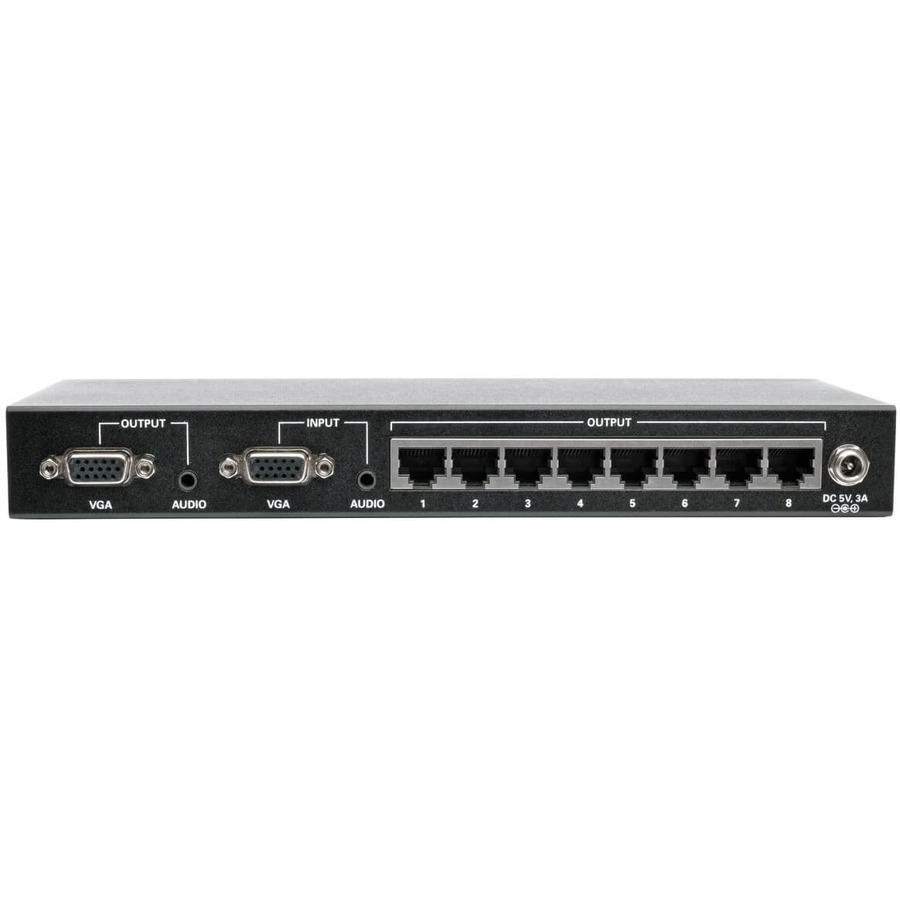

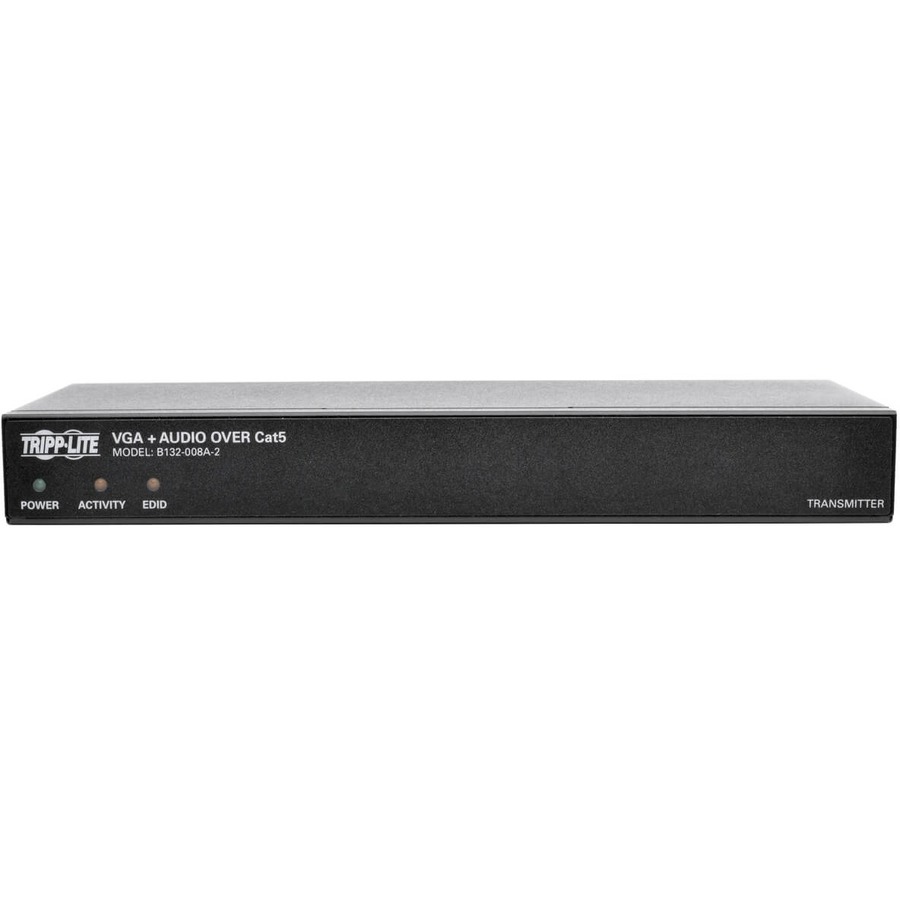

Eaton Tripp Lite Series 8-Port VGA over Cat5/6 Splitter/Extender, Box-Style Transmitter for Video/Audio, Up to 1000 ft. (305 m), TAA
1 Input Device - 1000 ft Range - 8 x Network (RJ-45) - 1 x VGA In - 1 x VGA Out - 1920 x 1440 - Twisted Pair - Category 6 - Wall Mountable, Rack-mountable, Pole-mountable - TAA Compliant
Product ID
Mfg. Part: B132-008A-2
UNSPSC: 32101529
MNJPartNumber: MNJ11840000
Availability
800-870-4340
Contact your MNJ Sales Representative for the latest availability
Product Pricing
$236.18
Options & Accessories
Eaton Tripp Lite Series VGA High-Resolution RGB Coaxial Cable with Audio (HD15 and 3.5mm M/M), 10 ft. (3.05 m)
(HD15 and 3.5mm M/M) 10-ft.
Mfg. Part: P504-010
$30.87
Eaton Tripp Lite Series VGA over Cat5/6 Extender, Box-Style Receiver for Video/Audio, Up to 1000 ft. (305 m), TAA
1 x 1 - VGA, XGA, SVGA, SXGA, UXGA, WUXGA - 500ft, 1000ft
Mfg. Part: B132-100A
$154.84
Tripp Lite by Eaton Cat6 Gigabit Solid Conductor Snagless UTP Ethernet Cable (RJ45 M/M) PoE Blue 75 ft. (22.86 m)
Category 6 - 75ft - 1 x RJ-45 Male Network - 1 x RJ-45 Male Network - Blue
Mfg. Part: N202-075-BL
$77.51
Tripp Lite by Eaton Cat6 Gigabit Solid Conductor Snagless UTP Ethernet Cable (RJ45 M/M) PoE Blue 100 ft. (30.5 m)
Category 6 - 100ft - 1 x RJ-45 Male Network - 1 x RJ-45 Male Network - Blue
Mfg. Part: N202-100-BL
$109.36
Eaton Tripp Lite Series Cat6 Gigabit Solid Conductor Snagless UTP Ethernet Cable (RJ45 M/M), PoE, Blue, 50 ft. (15.24 m)
Category 6 - 50ft - 1 x RJ-45 Male Network - 1 x RJ-45 Male Network - Blue
Mfg. Part: N202-050-BL
$49.86
Main Features
The B132-008A-2 8-Port VGA + Audio over Cat5/Cat6 Extender/Splitter works with a B132-100A or B132-100A-WP-1 remote receiver to split a VGA audio/video signal into nine separate signals-one local and eight remote. It's ideal for digital signs, trade shows and other applications where the video source is located farther than conventional cables allow or that require multiple displays connected to one source.
The B132-008A-2 uses VGA cable(such as Tripp Lite's P504-Series) to connect to the source and displays and Cat5e/6 cable to transmit to the remote receivers. For best results, use 24 AWG solid-wire N022-01K-GY(Cat5e) or N222-01K-GY(Cat6) cable.
When used with Tripp Lite's B132-Series active remote receivers, the B132-008A-2 can extend a 1920 x 1440(60 Hz) signal up to 500 feet and a 1024 x 768(60 Hz) signal up to 1,000 feet. By daisy-chaining up to six units, one audio/video source can transmit to as many as 49 displays-48 remote and one local.
Add up to three B132-110A remote repeaters to each channel to fully extend the signal range or add more displays. You can extend a 1920 x 1440(60 Hz) signal up to 500 feet or a 1024 x 768(60 Hz) signal up to 1,000 feet from the first repeater in the chain to the last receiver.

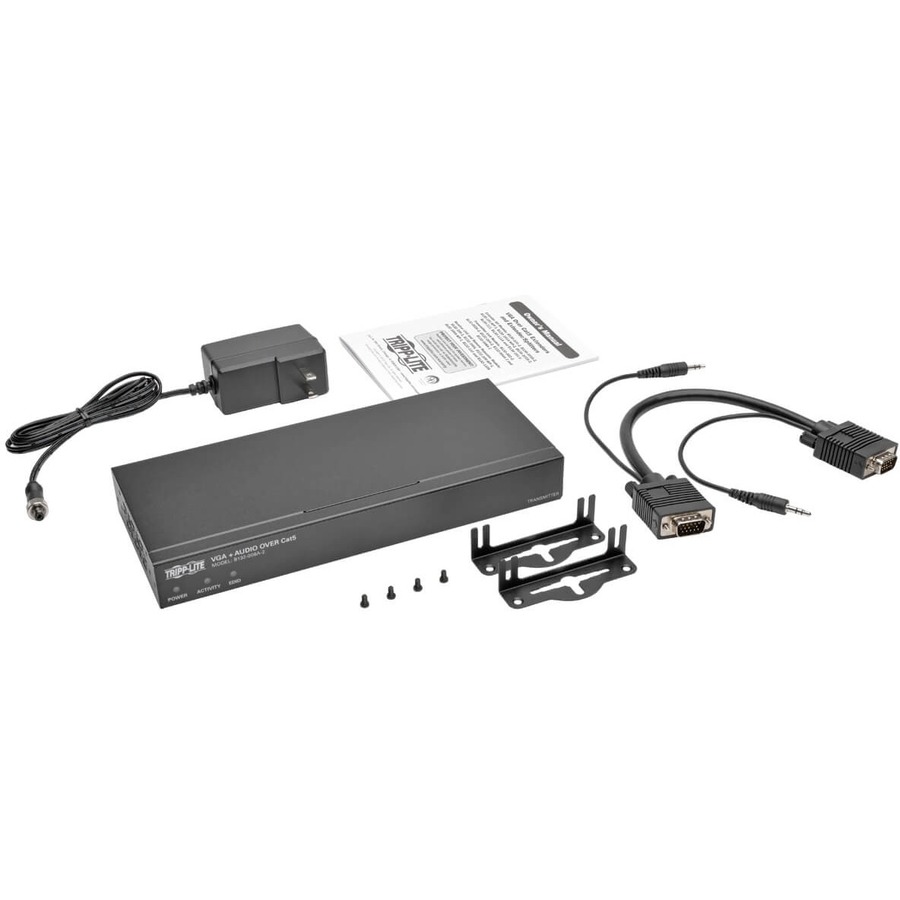

The B132-008A-2 also delivers high-quality audio and copies EDID information from a connected display to ensure optimal compatibility. Easy to set up with no Software Or Drivers To Install. Mounts To A Wall, Rack Or Pole Using The Included Hardware.
The B132-008A-2 uses VGA cable(such as Tripp Lite's P504-Series) to connect to the source and displays and Cat5e/6 cable to transmit to the remote receivers. For best results, use 24 AWG solid-wire N022-01K-GY(Cat5e) or N222-01K-GY(Cat6) cable.
When used with Tripp Lite's B132-Series active remote receivers, the B132-008A-2 can extend a 1920 x 1440(60 Hz) signal up to 500 feet and a 1024 x 768(60 Hz) signal up to 1,000 feet. By daisy-chaining up to six units, one audio/video source can transmit to as many as 49 displays-48 remote and one local.
Add up to three B132-110A remote repeaters to each channel to fully extend the signal range or add more displays. You can extend a 1920 x 1440(60 Hz) signal up to 500 feet or a 1024 x 768(60 Hz) signal up to 1,000 feet from the first repeater in the chain to the last receiver.
The B132-008A-2 also delivers high-quality audio and copies EDID information from a connected display to ensure optimal compatibility. Easy to set up with no Software Or Drivers To Install. Mounts To A Wall, Rack Or Pole Using The Included Hardware.
