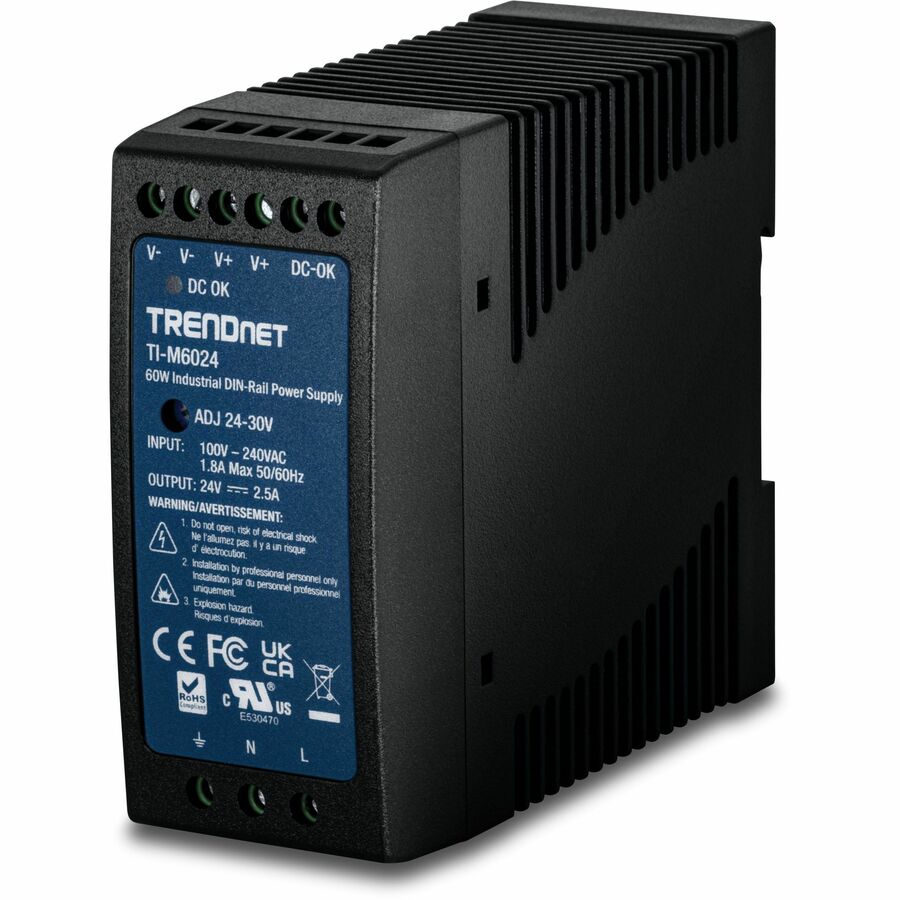

TRENDnet TI-M6024, 60W, 24V DC, 2.5A AC to DC DIN-Rail Power Supply

60W Industrial DIN-Rail Power Suppl

Product ID

Mfg. Part: TI-M6024
UNSPSC: 39121004
MNJPartNumber: MNJ11679520

Availability

  Limited

Product Pricing

$39.19

Qty:

    Main Features

    TRENDnet's AC to DC Industrial DIN-Rail Power Supply, model TI-M6024, supplies up to 60W (24V DC, 2.5A) of power to industrialequipment, such as switches, injectors, and WiFi access points. This DIN-Rail power supply comes with an integrated DIN-Railmount, and short circuit, over power, and overload current protection.

  • DEVICE INTERFACE: Input: 100 - 240V AC, 47 - 63Hz, 1.8A 120 - 370V DC; Output: 60W, 24 - 30V, 0 - 2.5A; DIN-Rail:TS-35/7.5 or 15
  • 60W POWER: The power supply provides up to 60W of power (24V DC, 2.5 A)
  • OUTPUT VOLTAGE: 24 - 30V DC
  • HOUSING: IP30 Rated DIN-Rail Mount
  • OPERATING TEMPERATURE: The IP30 Rated housing provides an extreme -20 to 70 °C (-4 to 158 °F) operating temperature range
  • PEAK LOAD CAPABILITY: 150% peak load capability
  • COOLING METHOD: Natural air convection is used to cool the 60W power supply
  • PROTECTION FUNCTIONS: Short circuit/overload/over voltage/over current protection with a self-recovery protection type.
  • UL 62368 Approved
  • ADDITIONAL FEATURES: 100% full load burn-in test; Built-in DC OK relay contact
