Product Details

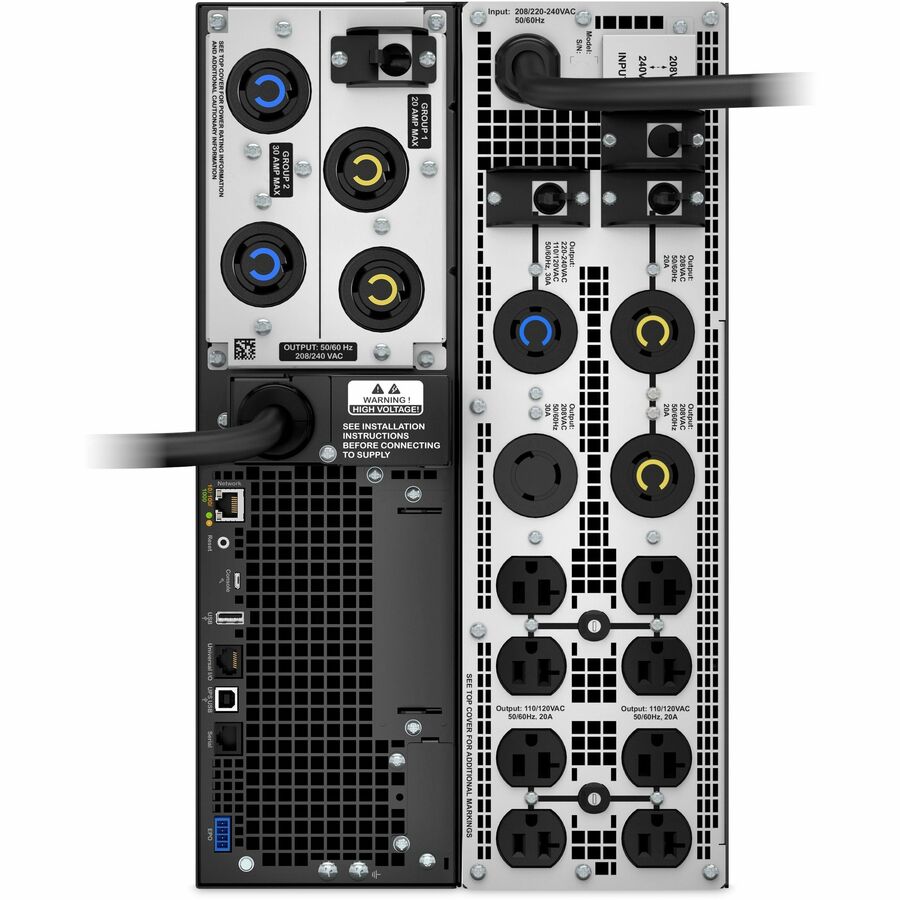

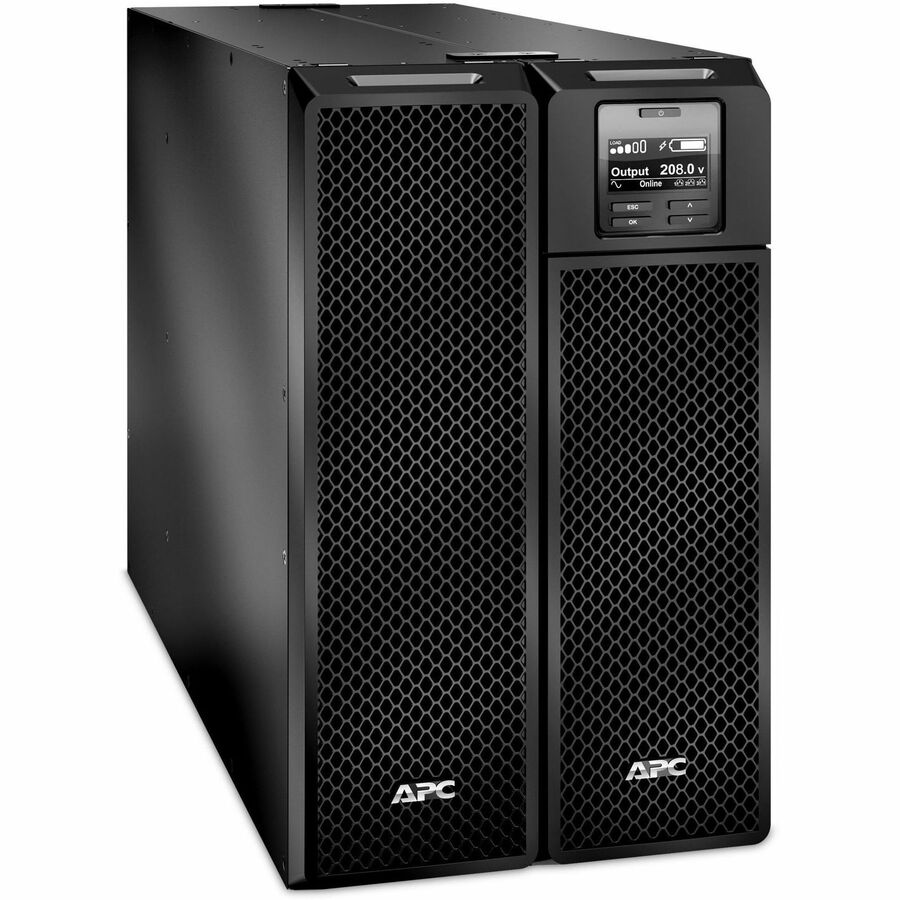

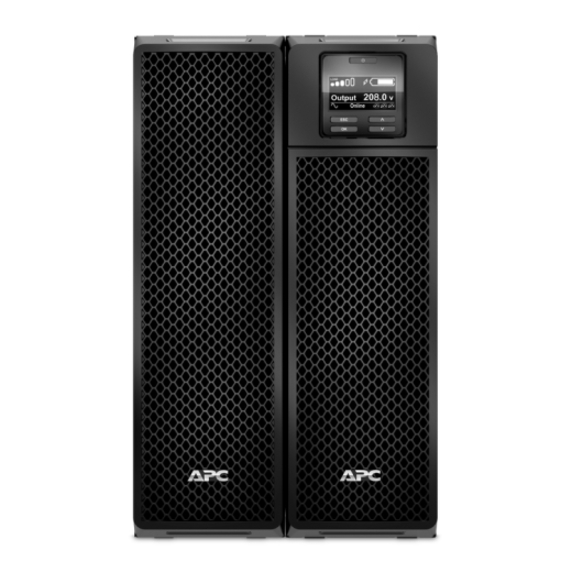

APC Smart-UPS SRT 5kVA, 208V, Tower w/o kit, 8x 5-20R, 4x L6-20R, 2x L6-30R, 1x L14-30R NEMA, w/transfo 208/240V to 120V

Rack-mountable - 1.50 Hour Recharge - 4 Minute Stand-by - 208 V AC Input - 120 V AC, 208 V AC Output - Single Phase - Sine Wave - 1 x NEMA L14-30R, 2 x NEMA L6-30R, 4 x NEMA L6-20R, 8 x NEMA 5-20R Receptacle(s) - 15 x Battery/Surge Outlet

Product ID

Mfg. Part: SRT5KXLT-5KTF
UNSPSC: 39121011
MNJPartNumber: MNJ11638347

Availability

800-870-4340   Contact your MNJ Sales Representative for the latest availability

Product Pricing

$12,049.10

Qty:

Options & Accessories

$806.54

APC NetShelter Switched Rack PDU, 2U, 30A, 208V, 16 C13 outlet

Switched - NEMA L6-30P - 16 x IEC 60320 C13 - 200 V, 208 V, 230 V - 11.98 ft Cord Length - 2U - Horizontal - Rack-mountable
Mfg. Part: AP7911B

$2200.1

1 Year NBD 1P Advantage Plan for Smart-UPS 8K-10K - Maintenance - Parts & Labor - Physical

Maintenance - Parts & Labor - Physical
Mfg. Part: WADVPLN1P-SU-06

$2121.7

APC Service Bypass Panel - 200/208/240V; 30A; BBM; L6-30P input; (2) L6-30R (2) L6-20R output

2 x NEMA L6-20R, 2 x NEMA L6-30R - 5000 W - 200 V AC, 208 V AC - 24 A, 24 A, 24 A
Mfg. Part: SBP5000RMT2U

$1651.3

Warranty extension service pack, for new product purchase, 1yr, level 06

Technical - Electronic and Physical
Mfg. Part: WBEXTWAR1YR-SP-06

$925.12

Main Features

This product is part of the Smart-UPS On-Line range that provides high density, true double-conversion on-line power protection. This 5000VA/4800W On-line pure sine wave UPS provides scalable runtime while minimizing maintenance. The 4U rack/tower convertible SRT has an Embedded Network Management Card for network-based UPS monitoring and management. The UPS has an additional SmartSlot for connectivity and PowerChute Network Shutdown support for graceful unattended shutdown. It comes with NEMA L6-30P input, 8x NEMA 5-20R, 1x NEMA L14-30R, 4x NEMA L6-20R and 2x NEMA L6-30R outlets. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It Its dimensions are 719mm (depth) x 432mm (height) x 259mm (width) and weighs 112.49kg. Ideal for servers, voice/data networks, medical labs, and light industrial applications. It conforms to CSA C22.2 No 107.3-05, ENERGY STAR V2.0 (USA), FCC part 15 class A, and UL 1778. Designed for IT professionals or network administrators providing wide input voltage window, tight output voltage regulation, frequency regulation, internal bypass, and input power factor correction.

More from the Manufacturer

Recent Technical Specifications

Similar Products

APC Smart-UPS RT 5kVA, 208V, Rack, 3U, 4x 5-20R, 1x L6-30R, 1x L14-30R NEMA outlets, with 208/240 (Split-Phase) to 120

3U Rack-mountable - 2.50 Hour Recharge - 4.80 Minute Stand-by - 120 V AC, 208 V AC Input - 120 V AC, 208 V AC Output - Single Phase - Sine Wave - Serial Port - 1 x NEMA L14-30R, 1 x NEMA L6-30R, 4 x NEMA 5-20R Receptacle(s) - 6 x Battery/Surge Outlet
Mfg. Part: SURTD5000RMXLP3U

$11897.2

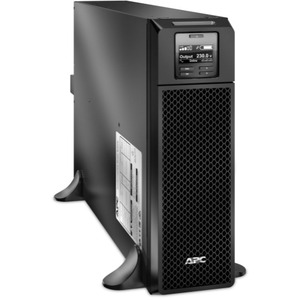

APC by Schneider Electric Smart-UPS SRT 5000VA 230V
