Tripp Lite by Eaton HDBaseT HDMI over Cat5e/6/6a Extender Receiver Serial and IR 4K x 2K 30 Hz UHD / 1080p 60 Hz Up to 328 ft. (100 m) TAA
1 Output Device - 328 ft Range - 1 x Network (RJ-45) - 1 x HDMI Out - Serial Port - 4K - 3840 x 2160 - Twisted Pair - Category 6a - Wall Mountable, Rack-mountable, Pole-mountable"
Product ID
Mfg. Part: BHDBT-R-SI-LR
UNSPSC: 45111800
MNJPartNumber: MNJ11577711
Availability
800-870-4340
Contact your MNJ Sales Representative for the latest availability
Product Pricing
$193.06
Options & Accessories
Eaton Tripp Lite Series High Speed HDMI Cable with Ethernet and Locking Connector, UHD 4K, 24AWG (M/M), 6 ft. (1.83 m)
HDMI for Audio/Video Device, TV, Monitor - 1.28 GB/s - 6 ft - 1 x HDMI Male Digital Audio/Video - 1 x HDMI Male Digital Audio/Video - Gold-plated Contacts - Black"
Mfg. Part: P569-006-LOCK
$41.16
Eaton Tripp Lite Series High Speed HDMI Cable with Ethernet and Locking Connector, UHD 4K, 24AWG (M/M), 10 ft. (3.05 m)
HDMI for Audio/Video Device, Monitor, TV - 1.28 GB/s - 10 ft - 1 x HDMI Male Digital Audio/Video - 1 x HDMI Male Digital Audio/Video - Gold-plated Contacts - Black"
Mfg. Part: P569-010-LOCK
$62.76
Tripp Lite by Eaton Serial DB9 Serial Extension Cable Straight Through (DB9 M/F) 6 ft. (1.83 m)
(DB9 M/F) 6-ft.
Mfg. Part: P520-006
$13.03
Tripp Lite by Eaton High Speed HDMI Cable with Ethernet and Locking Connector UHD 4K 24AWG (M/M) 15 ft. (4.57 m)
HDMI for Audio/Video Device, Monitor, TV - 1.28 GB/s - 15 ft - 1 x HDMI Male Digital Audio/Video - 1 x HDMI Male Digital Audio/Video - Gold-plated Contacts - Black"
Mfg. Part: P569-015-LOCK
$81.58
Eaton Tripp Lite Series High-Speed HDMI Cable, Digital Video with Audio, UHD 4K (M/M), Black, 10 ft. (3.05 m)
Male HDMI - Male HDMI - 10ft
Mfg. Part: P568-010
$25.46
Main Features

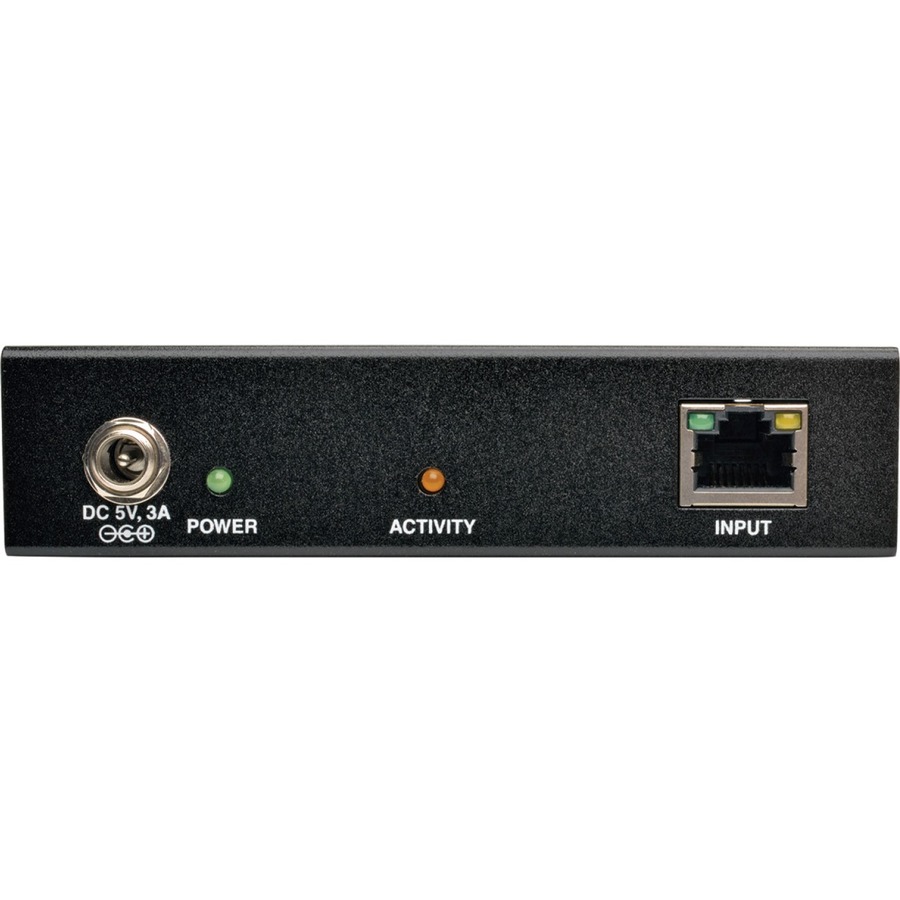

The BHDBT-R-SI-LR HDBaseT Extender Receiver works in tandem with the Tripp Lite BHDBT-Series matrix transmitter in your HDBaseT installation to extend uncompressed HDMI video and audio, RS-232 serial and IR remote control signals.
Using a single Cat5e/6/6a cable, the BHDBT-R-SI-LR can extend a 1920 x 1080(1080p) signal at 60 Hz or an Ultra High Definition(UHD) 3840 x 2160(4K x 2K) video signal up to 328 feet(100 m). To further extend and expand your installation, you can insert up to five BHDBT-TR-SI-LR Extender Transceivers between the receiver and transmitter for a total range up to 2,000 feet(610 m) with a monitor connected to each transceiver.

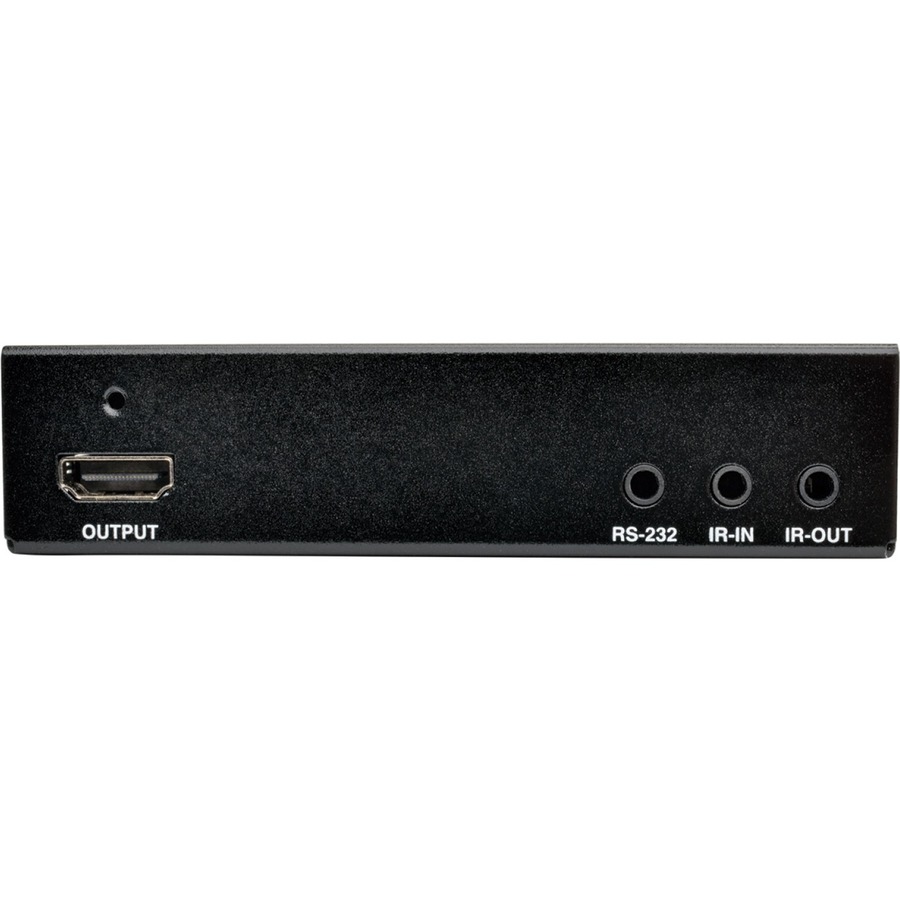

You can control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The 2-way IR Remote Control feature(@ 39 KHz) lets you also control your Blu-ray player using its remote when at the remote monitor and vice versa. The monitor connects to the rear locking HDMI port(ideal for use with Tripp Lite's P569-006-LOCK High-Speed HDMI cables with locking connectors) that prevents the cable from coming loose or undone, ensuring an intact signal.

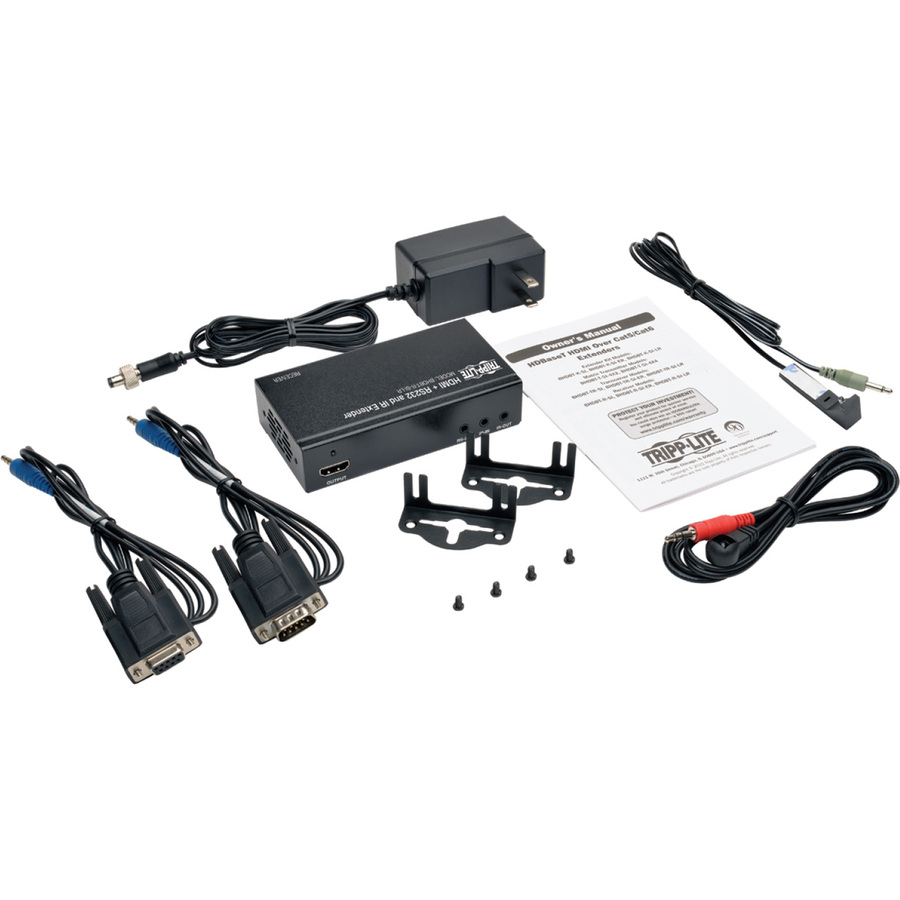

The BHDBT-R-SI-LR supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Included mounting hardware lets you attach the receiver to a wall, rack or pole. Sets up quickly with no software to download or install.
Using a single Cat5e/6/6a cable, the BHDBT-R-SI-LR can extend a 1920 x 1080(1080p) signal at 60 Hz or an Ultra High Definition(UHD) 3840 x 2160(4K x 2K) video signal up to 328 feet(100 m). To further extend and expand your installation, you can insert up to five BHDBT-TR-SI-LR Extender Transceivers between the receiver and transmitter for a total range up to 2,000 feet(610 m) with a monitor connected to each transceiver.
You can control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The 2-way IR Remote Control feature(@ 39 KHz) lets you also control your Blu-ray player using its remote when at the remote monitor and vice versa. The monitor connects to the rear locking HDMI port(ideal for use with Tripp Lite's P569-006-LOCK High-Speed HDMI cables with locking connectors) that prevents the cable from coming loose or undone, ensuring an intact signal.
The BHDBT-R-SI-LR supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Included mounting hardware lets you attach the receiver to a wall, rack or pole. Sets up quickly with no software to download or install.
