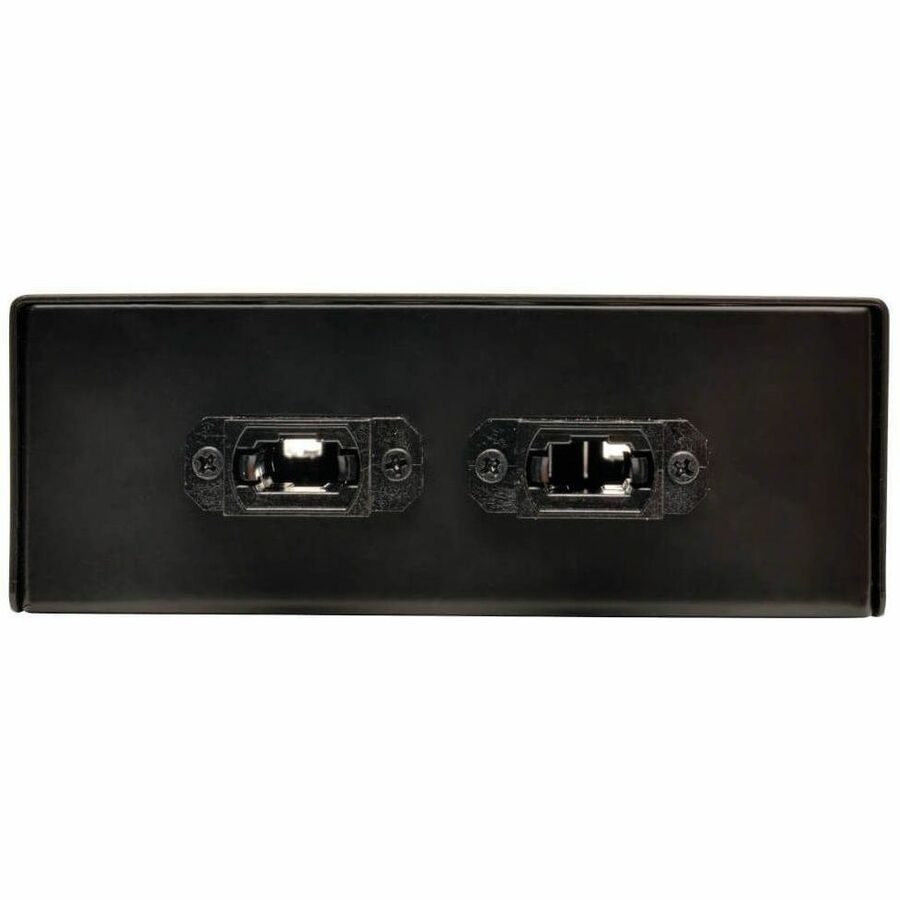

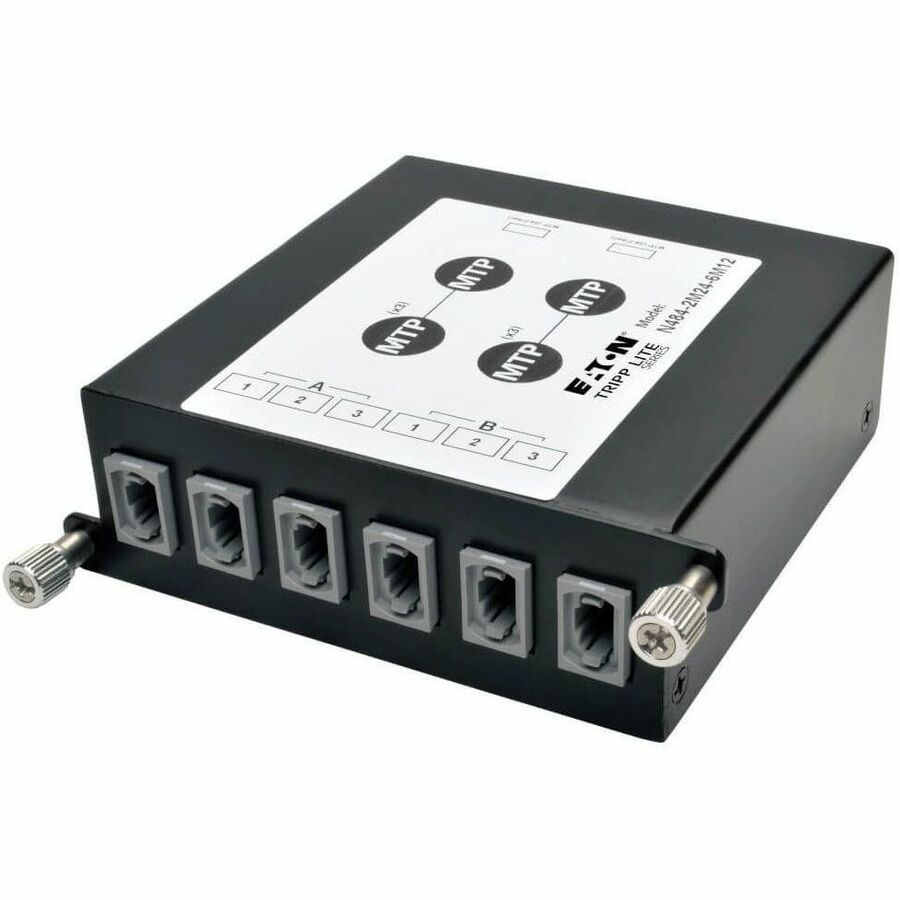

Eaton Tripp Lite Series 100Gb/120Gb to 40Gb Breakout Cassette, (x2) 24-Fiber MTP/MPO (Male with Pins) to (x6) 12-Fiber MTP/MPO (Male with Pins)
2 24-Fiber to 6 12-Fiber
Product ID
Mfg. Part: N484-2M24-6M12
UNSPSC: 43220000
MNJPartNumber: MNJ11288306
Availability
800-870-4340
Contact your MNJ Sales Representative for the latest availability
Product Pricing
$1,800.66
Options & Accessories

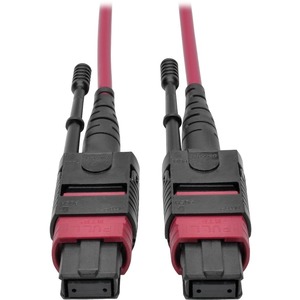

Tripp Lite by Eaton 100G MTP/MPO Multimode OM4 Plenum-Rated Fiber Optic Cable (F/F), 12 Fiber, 40/100GBASE-SR4, Push/Pull Tabs, Magenta, 3 m
Fiber Optic for Network Device - Patch Cable - 9.84 ft - 1 x MTP/MPO Female Network - 1 x MTP/MPO Female Network - 50/125 µm - Magenta
Mfg. Part: N845-03M-12-MG
$324.08
Eaton Tripp Lite Series 40G MTP/MPO to 4xLC Fan-Out OM4 Plenum-Rated Fiber Optic Cable, 40GBASE-SR4, Push/Pull Tabs, Magenta, 3 m
Fiber Optic for Network Device, Switch - Fan-out Cable - 9.84 ft - 1 x MTP/MPO Female Network - 8 x LC Male Network - Magenta
Mfg. Part: N845-03M-8L-MG
$363.79

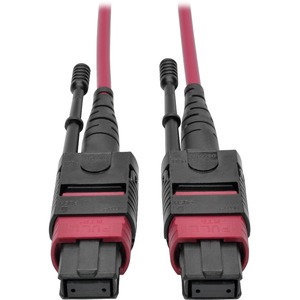

Tripp Lite by Eaton 100G MTP/MPO Multimode OM4 Plenum-Rated Fiber Optic Cable (F/F), 12 Fiber, 40/100GBASE-SR4, Push/Pull Tabs, Magenta, 5 m
Fiber Optic for Network Device - Patch Cable - 16.40 ft - 1 x MTP/MPO Female Network - 1 x MTP/MPO Female Network - 50/125 µm - Magenta
Mfg. Part: N845-05M-12-MG
$346.62
Tripp Lite by Eaton 100G MTP/MPO Multimode OM4 Plenum-Rated Fiber Optic Cable (F/F), 12 Fiber, 40/100GBASE-SR4, Push/Pull Tabs, Magenta, 1 m
Fiber Optic for Network Device - Patch Cable - 3.28 ft - 1 x MTP/MPO Female Network - 1 x MTP/MPO Female Network - 50/125 µm - Magenta
Mfg. Part: N845-01M-12-MG
$271.5
Eaton Tripp Lite Series 40G MTP/MPO to 4xLC Fan-Out OM4 Plenum-Rated Fiber Optic Cable, 40GBASE-SR4, Push/Pull Tabs, Magenta, 1 m
Fiber Optic for Network Device, Switch - Fan-out Cable - 3.28 ft - 1 x MTP/MPO Female Network - 8 x LC Male Network - Magenta
Mfg. Part: N845-01M-8L-MG
$326.22
Main Features

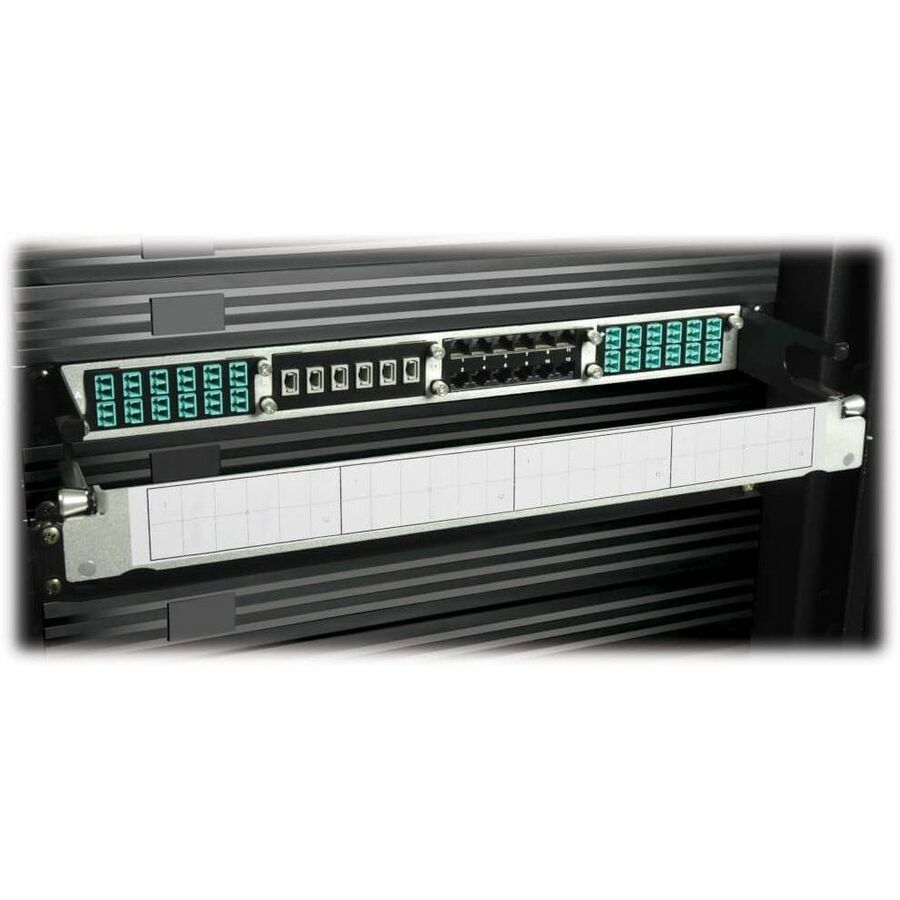

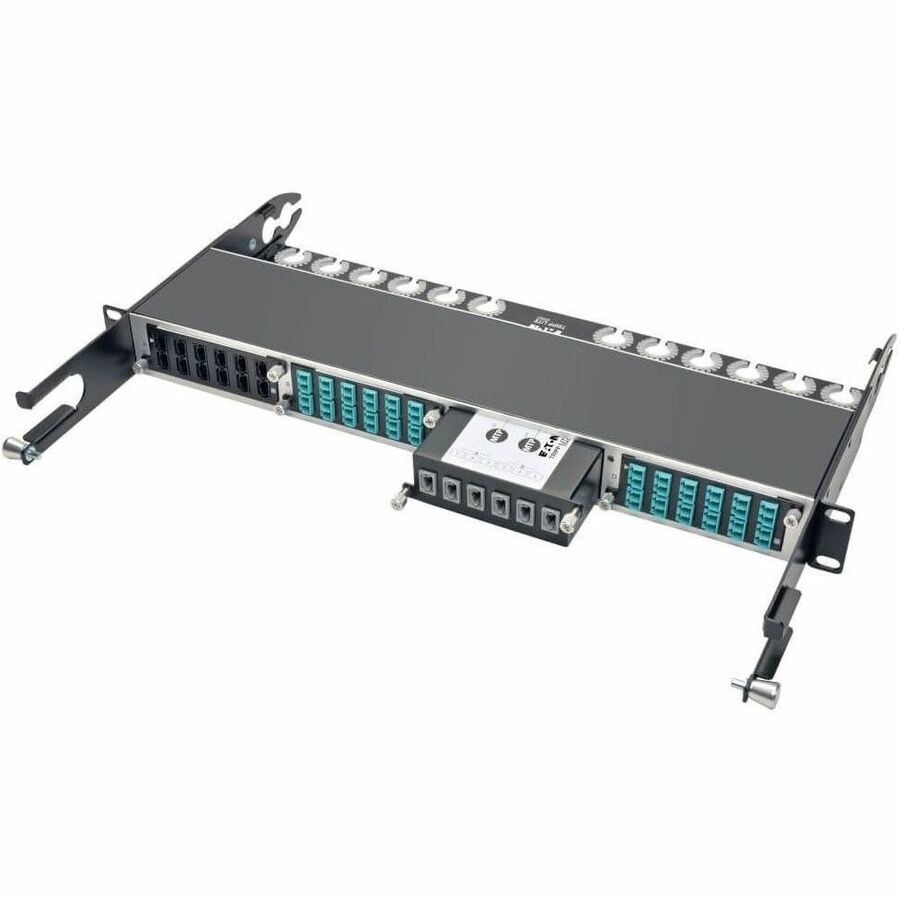

Tripp Lite's N484-2M24-6M12 is a High Density 100/120Gb to 40Gb Breakout Cassette, with (x2) 24-Fiber MTP/MPO connections to (x6) 12-Fiber MTP/MPO connections. Designed specifically for use with Tripp Lite's N484-00U and N484-01U chassis'; up to 4 cassettes per N484-01U, or 1 per N484-00U. Supports 100/120 GbE, internally using OM4 fiber optic cable, with an extremely low insertion loss of 0.35db that is well under the IEEE-802.3ae maximum channel loss spec of <25db. Effectively trunks 48-fibers between IDF's and MDF's with (x2) 24-Fiber MTP/MPO cables, breaking out to (x6) 12-fiber MTP/MPO connections. Polarity B, Optimized for Parallel Optics, Base-8 Connectivity. Guaranteed compatibility when used with recommended Tripp Lite cabling. Designed specifically for use with Tripp Lite cables, such as the N844- and N846-Series cables. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy duty, 1.0mm Cold Rolled Steel.NOTE: Each 24 Fiber cable breaks out to three, 12-fiber MTP ports, with only 8 of the 12 pins populated ( 4 inner pins unused ). QSFP+ and QSFP28 support.
