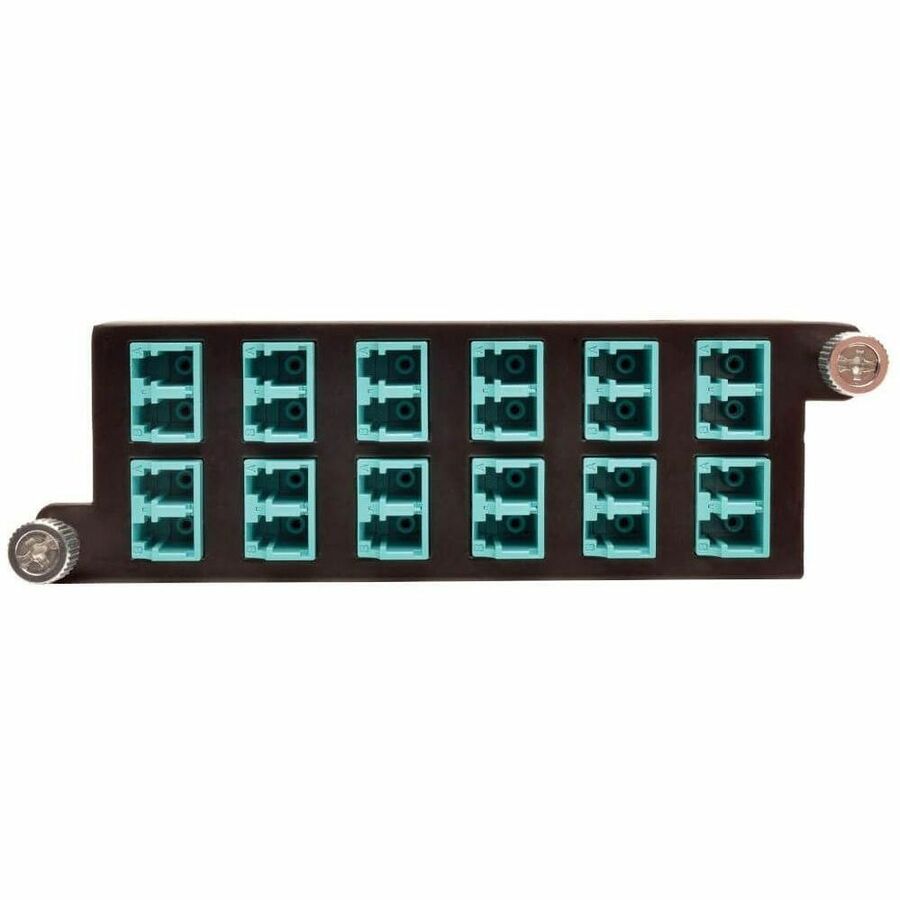

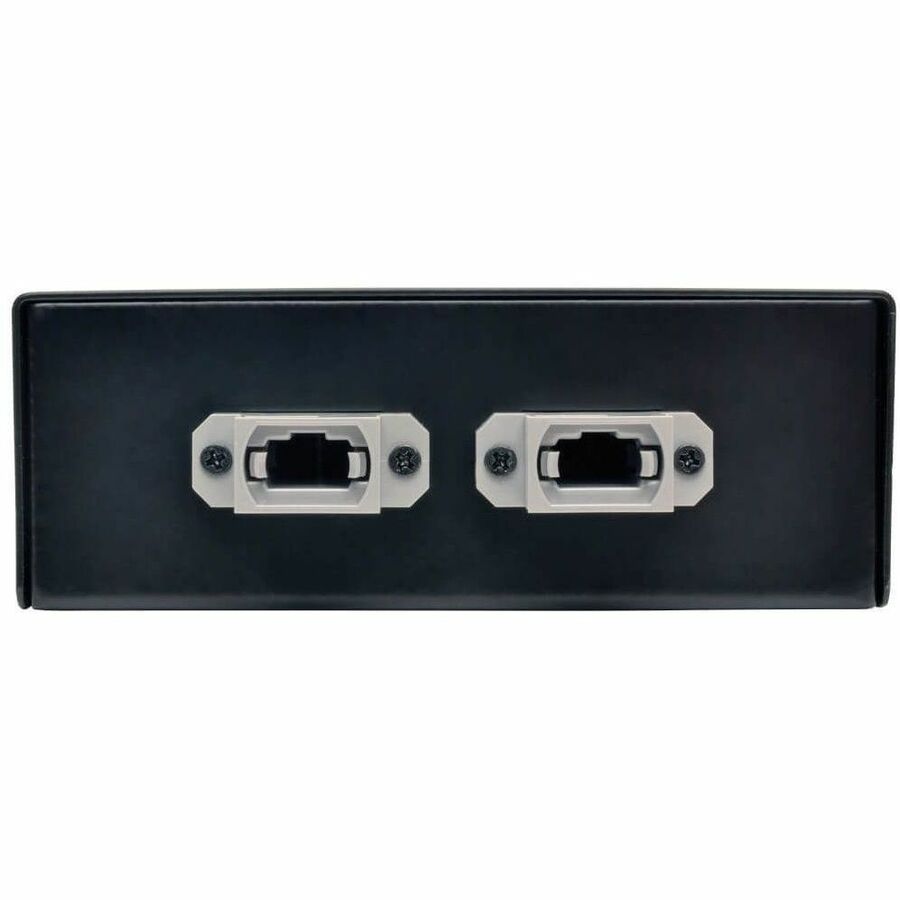

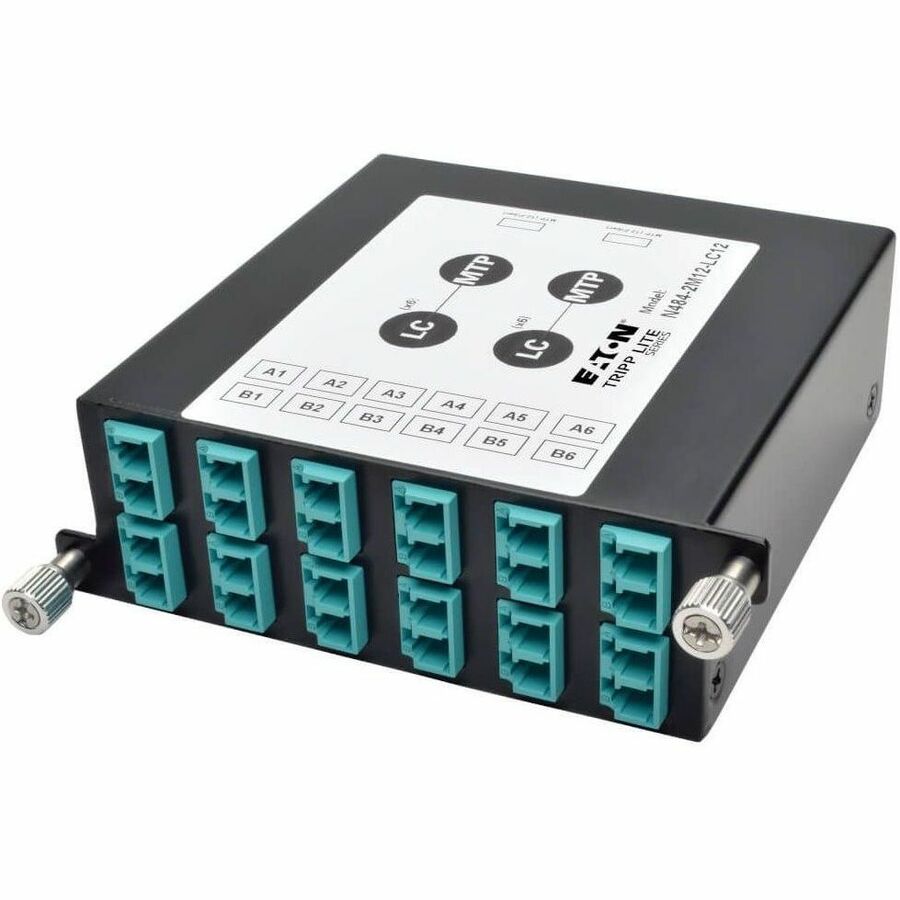

Eaton Tripp Lite Series 40Gb to 10Gb Breakout Cassette, (x2) 12-Fiber OM4 MTP/MPO ( Male with Pins ) to ( x12 ) LC Duplex
12 x LC Duplex, 2 x MTP - 14 Port(s) - 14 x RJ-11 - 12 x Duplex - 2 x MT Port(s)"
Product ID
Mfg. Part: N484-2M12-LC12
UNSPSC: 43220000
MNJPartNumber: MNJ11288305
Availability
800-870-4340
Contact your MNJ Sales Representative for the latest availability
Product Pricing
$478.65
Options & Accessories
Eaton Tripp Lite Series MTP/MPO Patch Cable with Push/Pull Tabs, 12 Fiber, 40GbE, 40GBASE-SR4, OM3 Plenum-Rated - Aqua, 10M (33 ft.)
12 Fiber,40GbE, 40GBASE-SR4,OM3 Plenum-rated - Aqua, 10M (33-ft.)"
Mfg. Part: N844-10M-12-P
$268.44
Eaton Tripp Lite Series 10Gb/40Gb/100Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable with Push/Pull Tab Connectors (LC/LC), Aqua, 1M (3.3 ft.)
Fiber Optic for Network Device - 3 ft - 2 x LC Male Network - 2 x LC Male Network - Aqua
Mfg. Part: N820-01M-T
$37.14
Eaton Tripp Lite Series MTP/MPO Patch Cable with Push/Pull Tabs, 12 Fiber, 40GbE, 40GBASE-SR4, OM3 Plenum-Rated - Aqua, 1M (3 ft.)
12 Fiber,40GbE, 40GBASE-SR4,OM3 Plenum-rated - Aqua, 1M (3-ft.)"
Mfg. Part: N844-01M-12-P
$152.69
Eaton Tripp Lite Series MTP/MPO Patch Cable with Push/Pull Tabs, 12 Fiber, 40GbE, 40GBASE-SR4, OM3 Plenum-Rated - Aqua, 2M (6 ft.)
12 Fiber,40GbE, 40GBASE-SR4,OM3 Plenum-rated - Aqua, 2M (6-ft.)"
Mfg. Part: N844-02M-12-P
$166.5

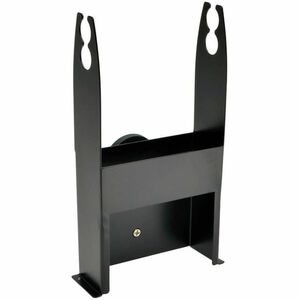

Eaton Tripp Lite Series Sleeve Holds 1 High-Density Copper/Fiber Cassette, 0U
1U High - Rack-mountable
Mfg. Part: N484-00U
$85.67
Main Features
Tripp Lite's N484-2M12-LC12 is a High Density 40Gb to 10Gb Breakout Cassette, with (x12) LC connections to (x2) 12-Fiber, OM4, MTP/MPO connections. Designed specifically for use with Tripp Lite's N484-00U and N484-01U chassis'; up to 4 cassettes per N484-01U, or 1 per N484-00U. Supports 40GbE, internally using OM4 fiber optic cable, with an extremely low insertion loss of 0.35db that is well under the IEEE 802.3ae maximum channel loss spec of <25db. Effectively trunks 24-fibers between IDF's and MDF's with (x2) 12-Fiber MTP/MPO cables, breaking out to (x12) LC Duplex fiber connections. 12-Fiber MTP ports are Polarity B, Optimized for Parallel Optics, Base-8 Connectivity. Guaranteed compatibility when used with recommended Tripp Lite cabling. Cassette designed specifically for use with Tripp Lite cables, such as the N820-, N821- and N844-Series cables. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy duty, 1.0mm Cold Rolled Steel.
