Eaton Tripp Lite Series 100Gb/120Gb to10Gb Breakout Cassette, 24-Fiber OM4 MTP/MPO ( Male with Pins ) to ( x12 ) LC Duplex
12 x LC Duplex, 24 x MTP/MPO - 36 Port(s) - 36 x RJ-11 - 12 x Duplex"
Product ID
Mfg. Part: N484-1M24-LC12
UNSPSC: 43220000
MNJPartNumber: MNJ11288304
Availability
800-870-4340
Contact your MNJ Sales Representative for the latest availability
Product Pricing
$444.14
Options & Accessories
Eaton Tripp Lite Series 100G MTP/MPO Multimode OM3 Plenum-Rated Fiber Optic Cable (CXP), 24 Fiber, 100GBASE-SR10, Push/Pull Tabs, Aqua, 1 m
100GBASE-SR10, CXP, 24 Fiber, 100GbE OM3 Plenum-rated - Aqua, 1M (3-ft.)"
Mfg. Part: N846-01M-24-P
$337.24
Eaton Tripp Lite Series 100G MTP/MPO Multimode OM3 Plenum-Rated Fiber Optic Cable (CXP), 24 Fiber, 100GBASE-SR10, Push/Pull Tabs, Aqua, 2 m
100GBASE-SR10, CXP, 24 Fiber, 100GbE OM3 Plenum-rated - Aqua, 2M (6-ft.)"
Mfg. Part: N846-02M-24-P
$337.24
Eaton Tripp Lite Series MTP/MPO Patch Cable with Push/Pull Tab Connectors, 100GBASE-SR10, CXP, 24 Fiber, 100Gb OM3 Plenum-rated - Aqua, 5M (16 ft.)
100GBASE-SR10, CXP, 24 Fiber, 100GbE OM3 Plenum-rated - Aqua, 5M (16-ft.)"
Mfg. Part: N846-05M-24-P
$411.4
Eaton Tripp Lite Series 10Gb/40Gb/100Gb Duplex Multimode 50/125 OM3 LSZH Fiber Patch Cable with Push/Pull Tab Connectors (LC/LC), Aqua, 1M (3.3 ft.)
Fiber Optic for Network Device - 3 ft - 2 x LC Male Network - 2 x LC Male Network - Aqua
Mfg. Part: N820-01M-T
$37.14
Eaton Tripp Lite Series Sleeve Holds 1 High-Density Copper/Fiber Cassette, 0U
1U High - Rack-mountable
Mfg. Part: N484-00U
$85.67
Main Features

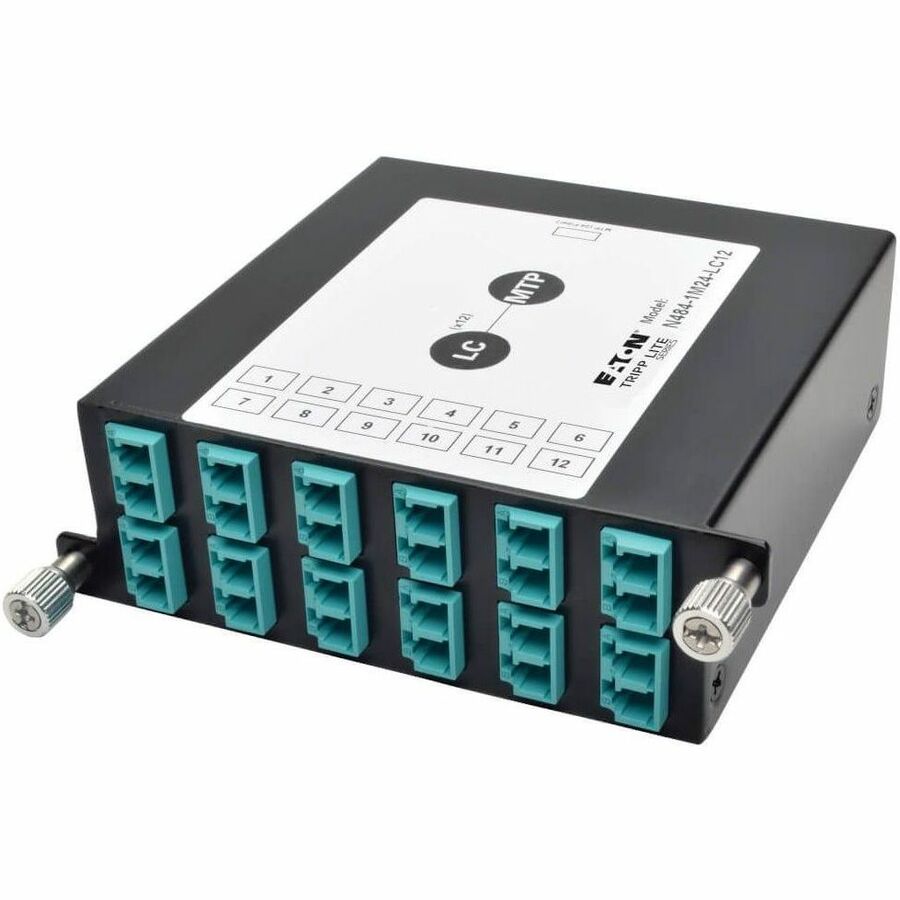

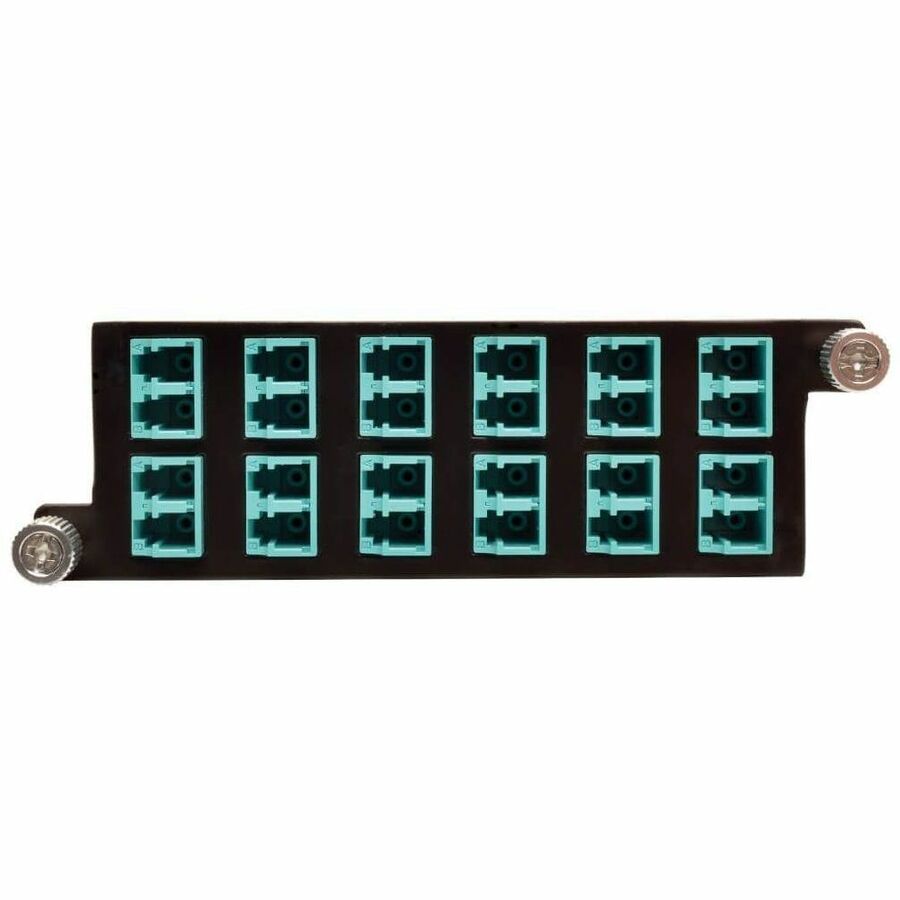

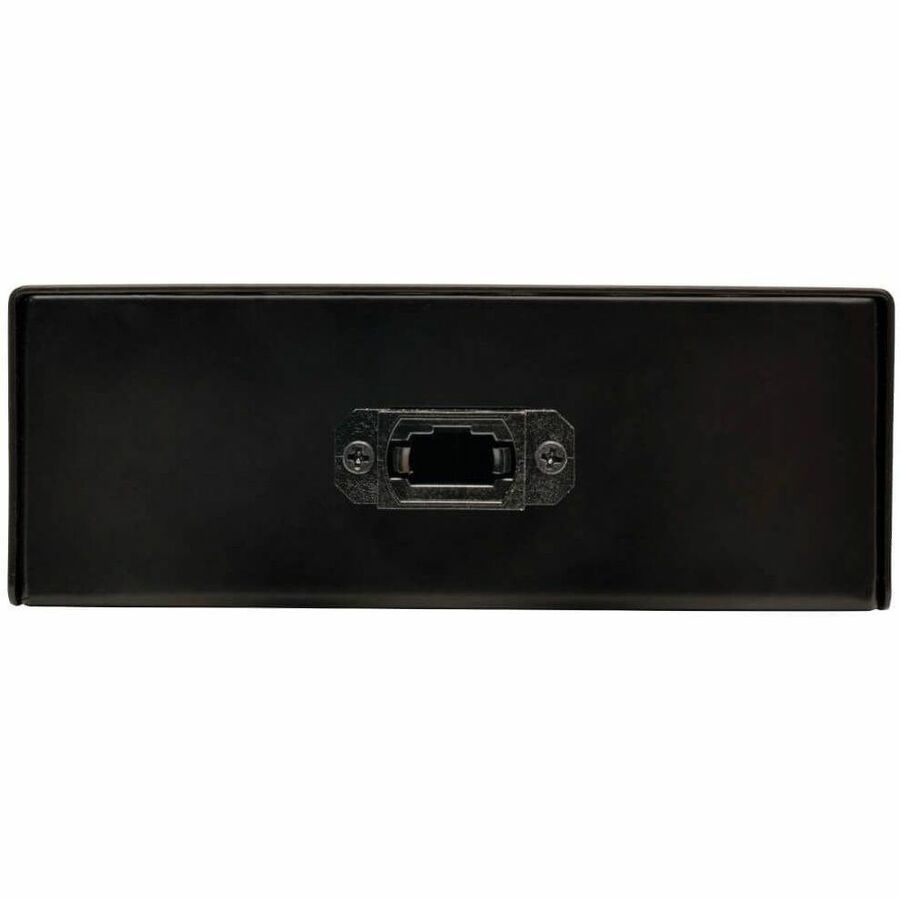

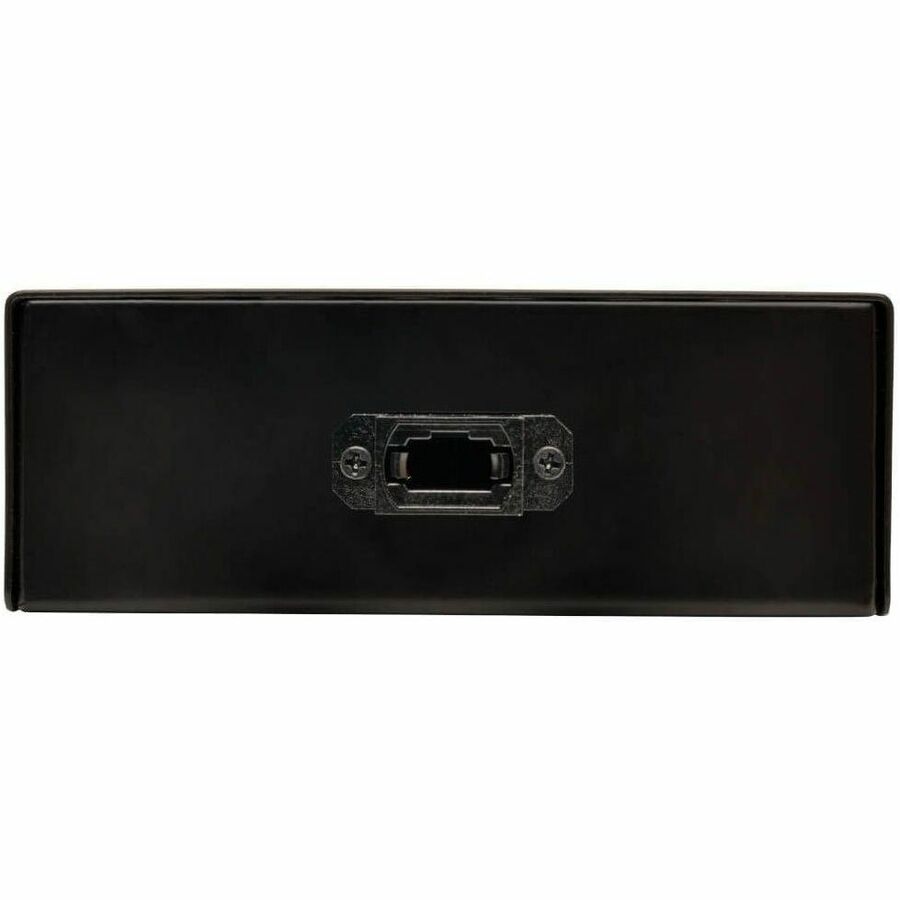

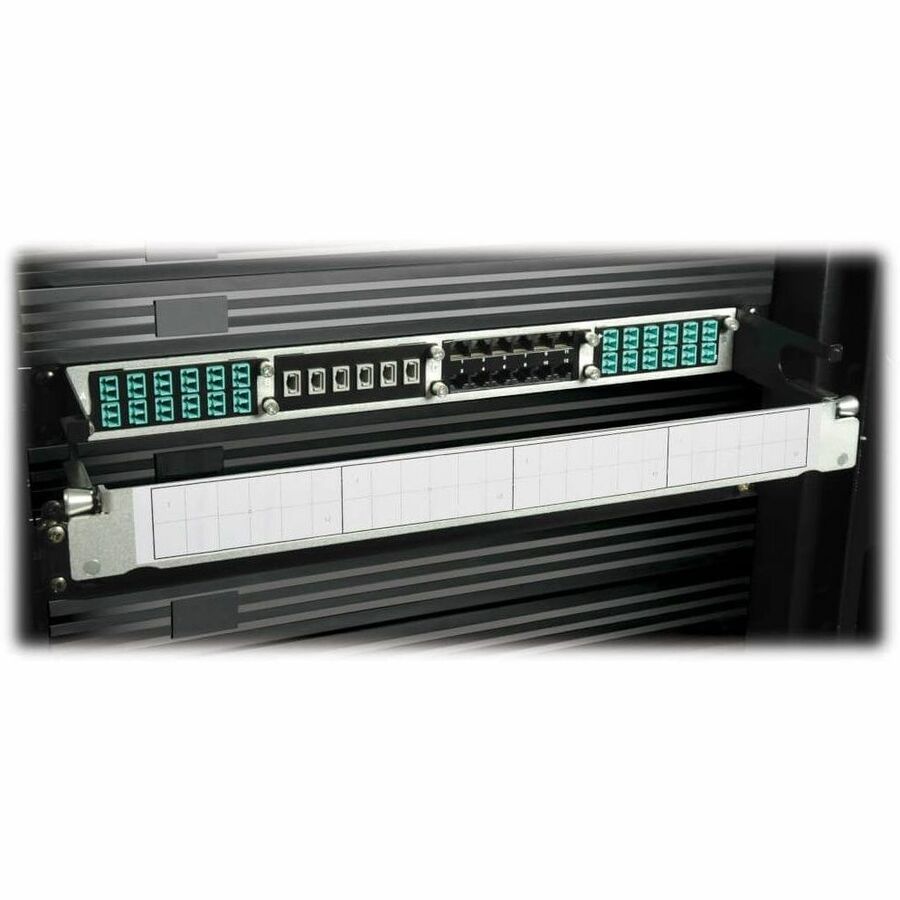

Tripp Lite's N484-1M24-LC12 is a High Density 100/120Gb to 10Gb Breakout Cassette with (x12) LC connections to a 24-Fiber, OM4, MTP/MPO connection. For use with Tripp Lite's N484-00U and N484-01U chassis, you can connect up to 4 cassettes per N484-01U, or 1 per N484-00U. Supports 100/120GbE, internally using OM4 fiber optic cable, with an extremely low insertion loss of 0.35db that is well under the IEEE 802.3ae maximum channel loss spec of <25db. Effectively trunks 24-fibers between IDF's and MDF's with a single 24-Fiber MTP/MPO cable, breaking out to (x12) LC Duplex fiber connections. 24-Fiber MTP port designed for 100GBASE-SR10, CFP, CXP, Parallel Optics connectivity. Guaranteed compatibility when used with recommended Tripp Lite cabling. Cassette designed specifically for use with Tripp Lite cables, such as the N820-, N821-, and N846-Series cables. Installation is simple, with the cassette being easily installed or removed using screw tabs to lock or unlock it from the panel; no tools required. Furthermore, each cassette features factory terminated connectors that reduce the time and labor required of field connector terminations. Cassette housing made with heavy duty, 1.0mm Cold Rolled Steel.
