CyberPower PDU20SWHVIEC10ATNET 200 - 240 VAC 20A Switched ATS PDU
10 Outlets, 10 ft, 2 x IEC-320 C20, Horizontal, 1U, LCD, 3YR Warranty
Product ID
Mfg. Part: PDU20SWHVIEC10ATNET
UNSPSC: 39121017
MNJPartNumber: MNJ11061453
Availability
800-870-4340
Contact your MNJ Sales Representative for the latest availability
Options & Accessories
CyberPower RMCARD205 Remote Management Card - Black 3YR Warranty - Hardware & Accessories
Black 3YR Warranty - Hardware & Accessories
Mfg. Part: RMCARD205
CyberPower WEXT5YR-PDU1B 2-Year Extended Warranty (5-Years Total) for select PDU
Maintenance - Parts & Labor - Electronic and Physical Service
Mfg. Part: WEXT5YR-PDU1B
Main Features

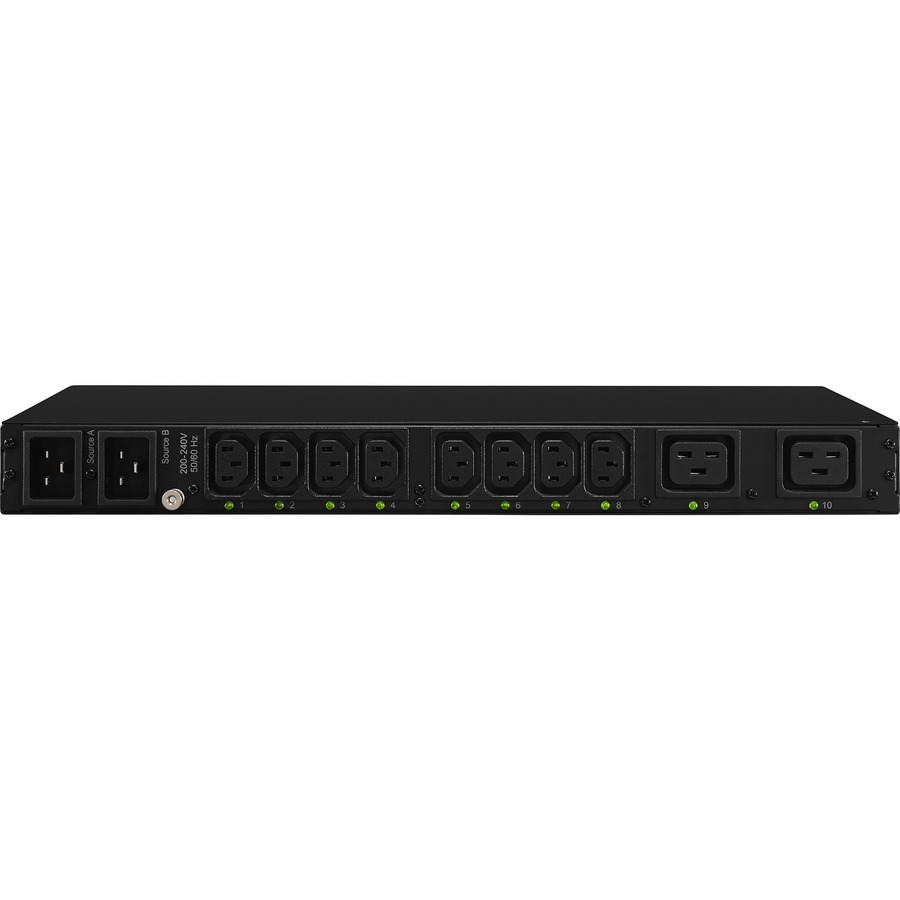

The CyberPower PDU20SWHVIEC10ATNET, 10-outlet 1U rack mount switched auto transfer switch (ATS) PDU, provides 200-240V/20A output. The PDU distributes power to 10 IEC 8-C13/2-C14 receptacles from redundant IEC-320 C20 plugs. Dual power cords can be plugged into separate power sources to provide redundancy to single-corded equipment. If there is a power failure or an under/over voltage, the PDU will switch to the secondary power source to insure continuous operation.
The PDU includes a RMCARD203 SNMP card. With the SNMP card and an IP address on the network interface, users have real-time monitoring and outlet control of the ATS PDU including event notifications.
The LCD provides local monitoring of voltage and amperage of the PDU and on/off control of the outlets.
The unit has a rugged, industrial-grade metal housing and 10-foot AC power cords. It can be mounted horizontally, includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.
The PDU includes a RMCARD203 SNMP card. With the SNMP card and an IP address on the network interface, users have real-time monitoring and outlet control of the ATS PDU including event notifications.
The LCD provides local monitoring of voltage and amperage of the PDU and on/off control of the outlets.
The unit has a rugged, industrial-grade metal housing and 10-foot AC power cords. It can be mounted horizontally, includes a cord retention tray and is UL60950_1 & FCC Class A certified. A three-year warranty is standard.
