Tripp Lite by Eaton SmartRack 12U Mid-Depth Small Rack Enclosure for Harsh Environments
12U Rack Height x 19" Rack Width x 32.50" Rack Depth - Floor Standing - 4 Fan(s) - Black - 1000 lb Static/Stationary Weight Capacity
Product ID
Mfg. Part: SR12UBFFD
UNSPSC: 24102001
MNJPartNumber: MNJ10922157
Availability
Limited
Product Pricing
$1,385.72
Options & Accessories
Tripp Lite by Eaton Rack Enclosure Server Cabinet UPS 2-Post Front Rail Mounting Bracket
Steel - 65 lb
Mfg. Part: UPSHDEARKIT
$91.51
$61.3
Tripp Lite by Eaton SmartRack 1U Cantilever Fixed Shelf (40 lbs / 18.1 kgs capacity; 12-in. / 305 mm Deep)
1U Rack Height - Black - Cold-rolled Steel (CRS) - 40 lb Maximum Weight Capacity
Mfg. Part: SRSHELF2P1U
$106.17
Tripp Lite by Eaton SmartRack Wall-Mount Roof Fan Kit - 2-120V high-performance fans; 210 CFM; 5-15P plug
1570.9 gal/min Maximum Airflow - NEMA 5-15P - 2 pc(s) - Cabinet
Mfg. Part: SRFANWM
$182.8
Tripp Lite by Eaton SmartRack Square Hole Hardware Kit with 50 pcs 12-24 screws and washers
Cage Nut, Rack Screw, Cup Washer - Pan - 50
Mfg. Part: SRCAGENUTS1224
$56.92
Main Features

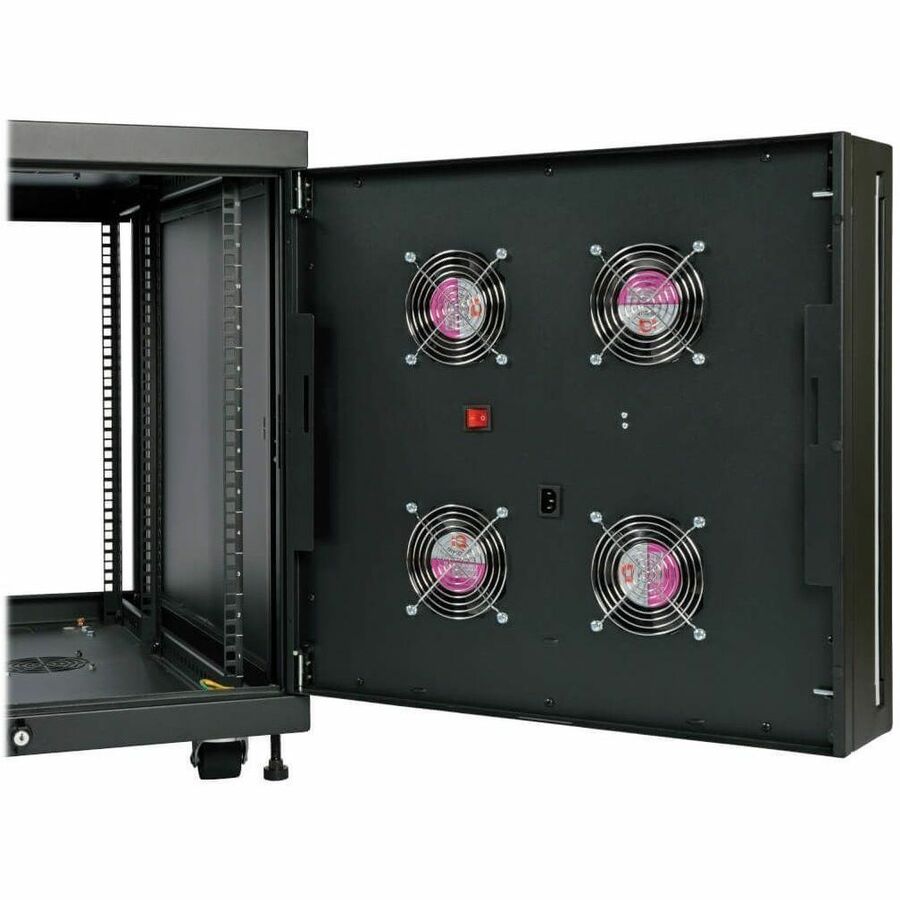

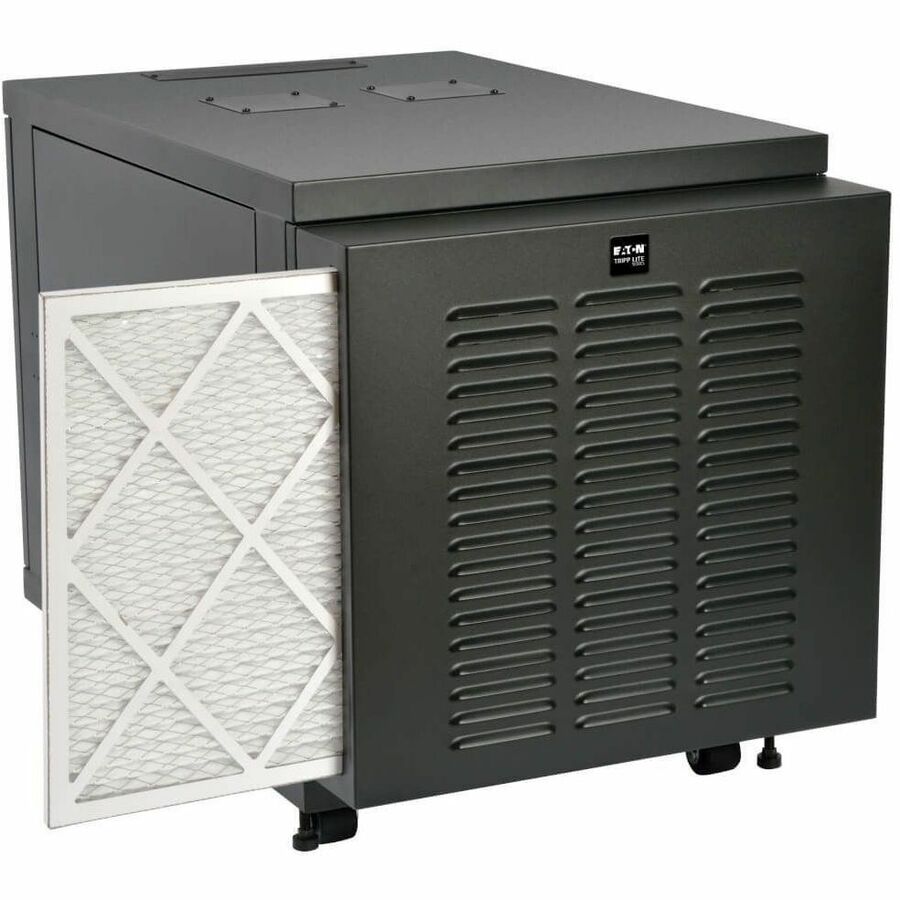

This SmartRack 12U Mid-Depth Rack Enclosure Cabinet protects sensitive electronic equipment from harsh conditions that would overwhelm a typical rack enclosure. It is deal for use in factories, construction areas, utility plants, warehouses and other areas with limited space that are high in moisture, dust and debris. It can protect your equipment from falling dirt, dust, drips, splashes and accidental contact with personnel. On the front door there is a built-in dust filter. The filter is removable and can be replaced with standard furnace filters - they're simple, inexpensive and effective. To compensate for the added air resistance of the filters, there are 4 large, high performance intake fans in the front door. The fans pull air through the enclosure, from front to side. Adjustable rack rails with square mounting holes accommodate up to 12U of standard 19" rackmount equipment. Supports up to 1000 lbs of equipment.
